6.3.4 X107, programming module

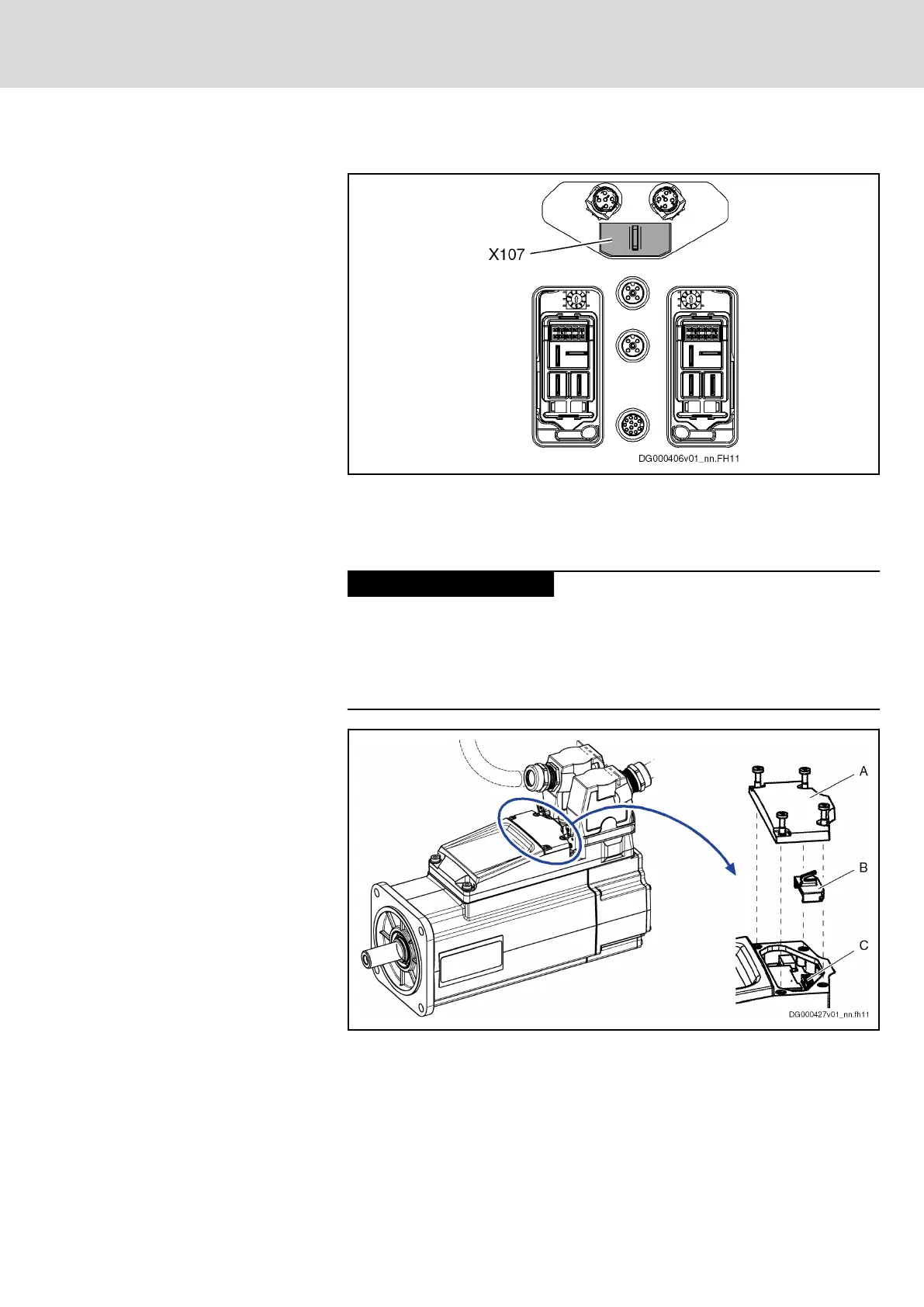

Fig. 6-7: Programming module at X107
X107 is the connection point of the PFM03.1 programming module. The
programming module contains the firmware and parameter memory. It is not
possible to operate the device without the programming module.
Risk of damage by plugging or removing the
programming module!
Neither plug nor remove the programming module when voltage has been
applied.
Clean the device housing before removing the programming module cover.
Make sure that neither dirt nor moisture penetrate the housing.
A Cover; is fixed to the device with 4 screws (tightening torque:
1 Nm)
B Programming module
C X107
Fig. 6-8: Removing the programming module
IndraDrive Mi Drive Systems with KCU02, KSM02,
KMS02/03, KMV03, KNK03, KLC03
165/407
Connection points
R911335703_Edition 04 Bosch Rexroth AG
