KSM/KMS - KSM/KMS
Applies to: RKH0021, RKH0120, RKH0121, RKH0220, RKH0222
KSM/KMS plug-in
connector
Bulk cable KSM/KMS plug-in
connector
RHS0021/CM02 REH0803
RHS0021/CM02
1)
RHS0022/CM02
2)

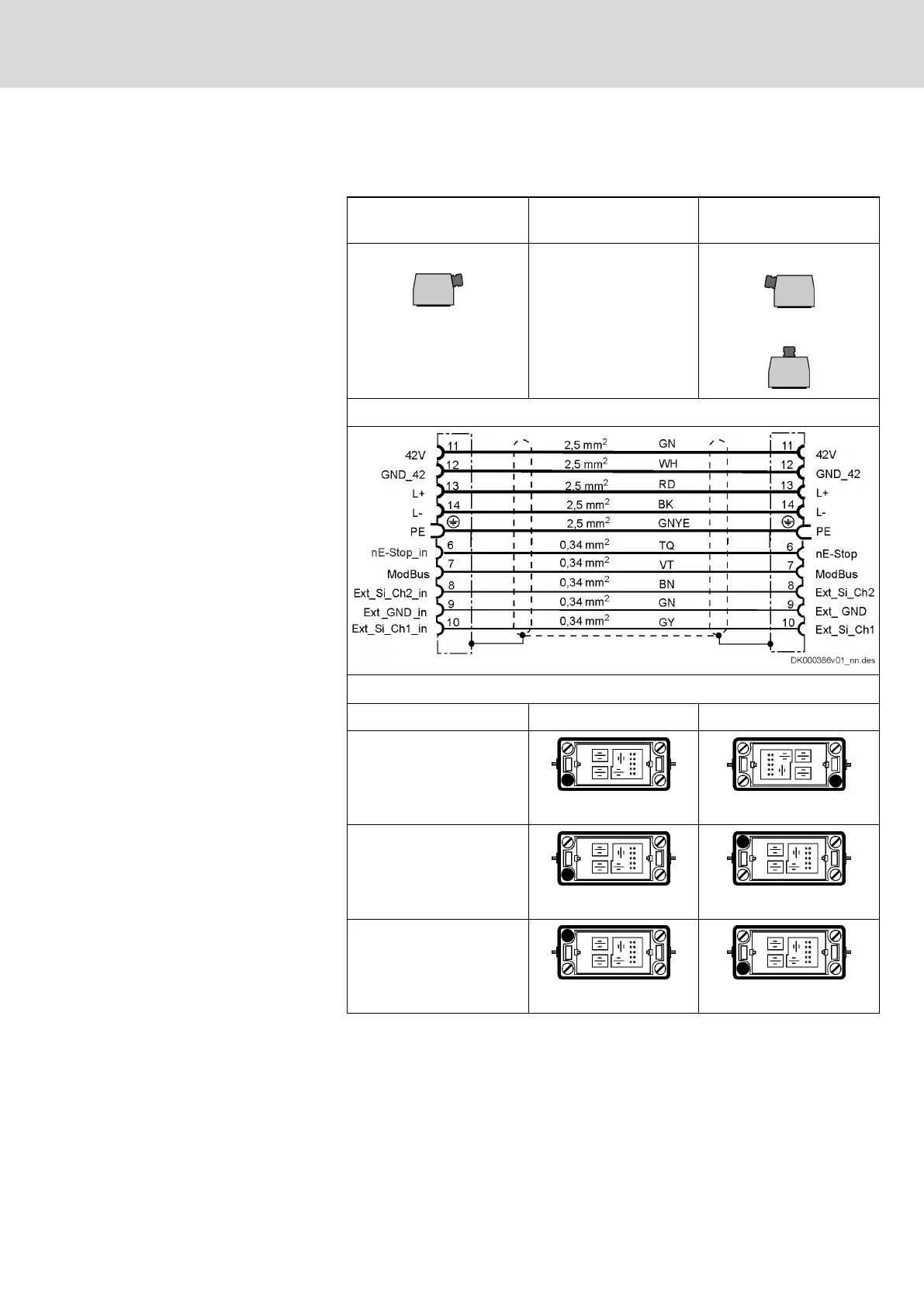

Interconnection diagram
KSM/KMS plug-in connector
3)
Cable type L-End R-End
RKH0021
X103.1 X103.2
RKH0120
X103.1 X103.2
RKH0121
X103.2 X103.1
IndraDrive Mi Drive Systems with KCU02, KSM02,
KMS02/03, KMV03, KNK03, KLC03
135/407
Technical data of the components
R911335703_Edition 04 Bosch Rexroth AG
