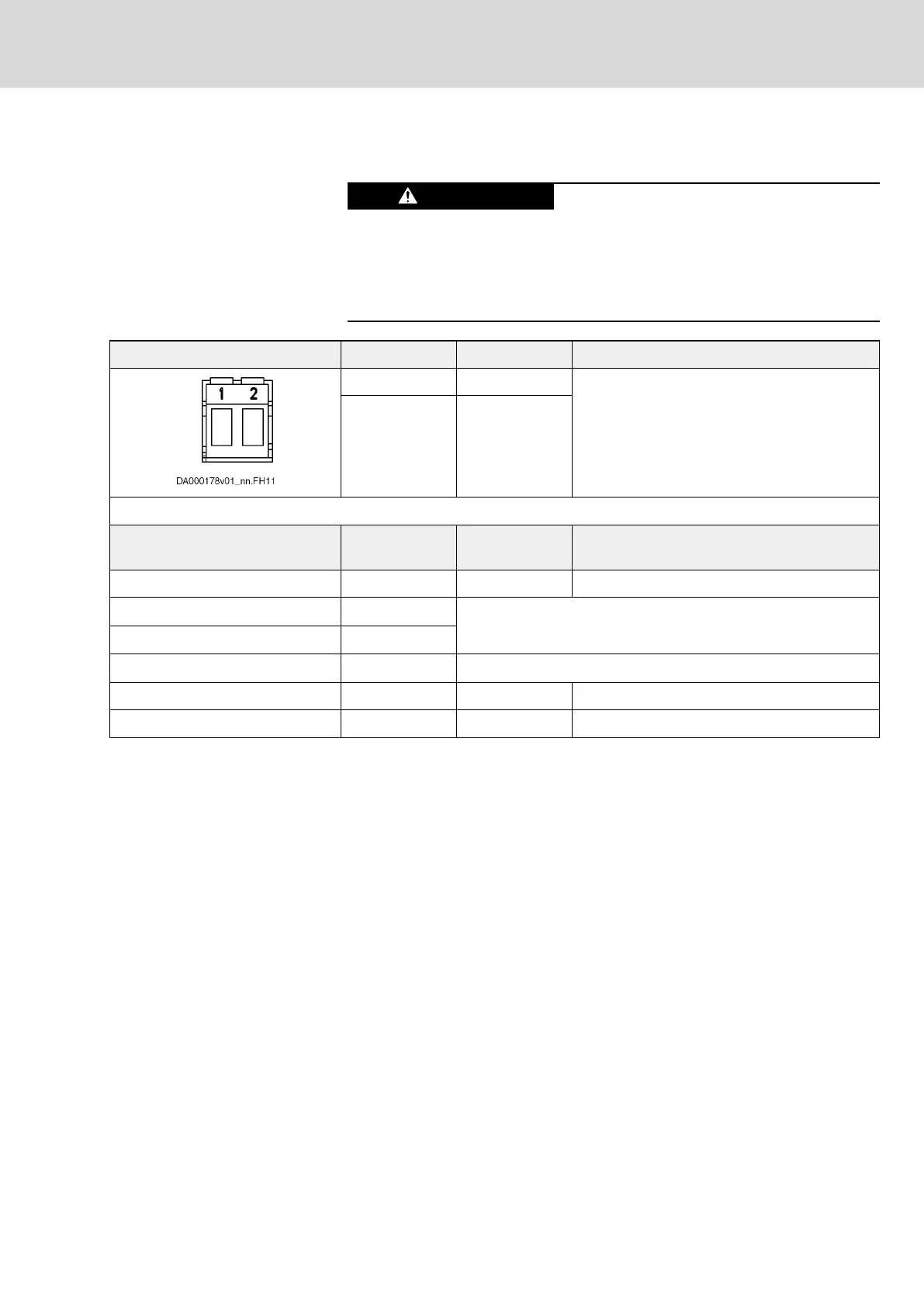

6.2.7 X53, Control Voltage Output
High electrical voltage! Danger to life by
electric shock!
Do not remove connectors when the component has been powered. Do not
plug in connectors when the component has been powered.
Wait at least 30 minutes after switching off the supply voltages to allow
discharging.
View Connection Signal name Function
1 (WH*) GND ● Output of DC-DC converter (24V – 42V) in
KCU02
(GND is not connected to 0V of the 24V
supply)
● Supplies KSM02/KMS02 with control
voltage
2 (GN*) 42 V
Screw terminal (connector at hybrid
cable)
Unit Min. Max.
Tightening torque Nm 1,5 1,7
Connection cable stranded wire
mm
2
Connection via hybrid cable RKH
Connection cable AWG
Output data U
out
, P
out
(see technical data of KCU02)
Short circuit protection – Present
Overload protection – Present
* Conductor color of the ready-made cable RKH
Tab. 6-10: Function, Pin Assignment, Properties
Control Voltage Monitoring
The control voltage is constantly monitored. If the allowed voltage range is
left, the control voltage for the connected KSM02/KMS02 devices is switched
off and LED H53 emits red light. Thereafter, the motors are coasting down
because a return movement is no longer possible.
Notes on Operation
Do not remove connectors when the component has been powered. Do not
plug in connectors when the component has been powered.
IndraDrive Mi Drive Systems with KCU02, KSM02,
KMS02/03, KMV03, KNK03, KLC03
151/407
