KMV03 used as supply unit

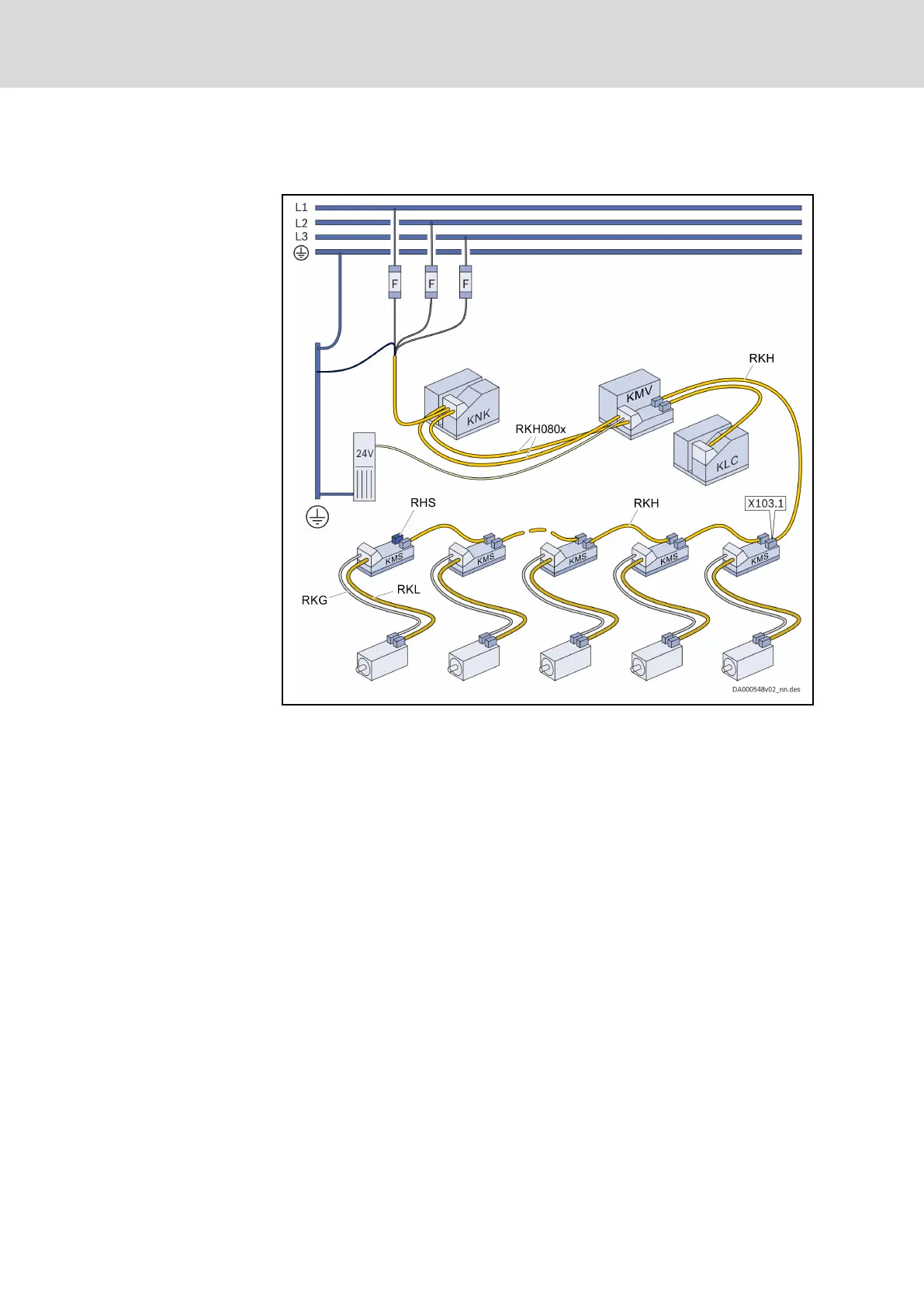

IndraDrive Mi drive system with KMV03 supply unit:
24V 24V supply
F Fuses
KLC DC bus capacitor unit
KMS Near motor servo drive
KMV Supply unit
KNK Mains filter with integrated mains choke and integrated mains
contactor
RHS Terminal connector
RKG Encoder cable (optional)
RKH Hybrid cable
RKL Motor power cable
X103.1 Connection of RKH hybrid cable at first KMS
Fig. 9-9: IndraDrive Mi drive system with KNK03, KMV03, KMS03
294/407
Mounting and installation
IndraDrive Mi Drive Systems with KCU02, KSM02,
KMS02/03, KMV03, KNK03, KLC03
Bosch Rexroth AG R911335703_Edition 04
