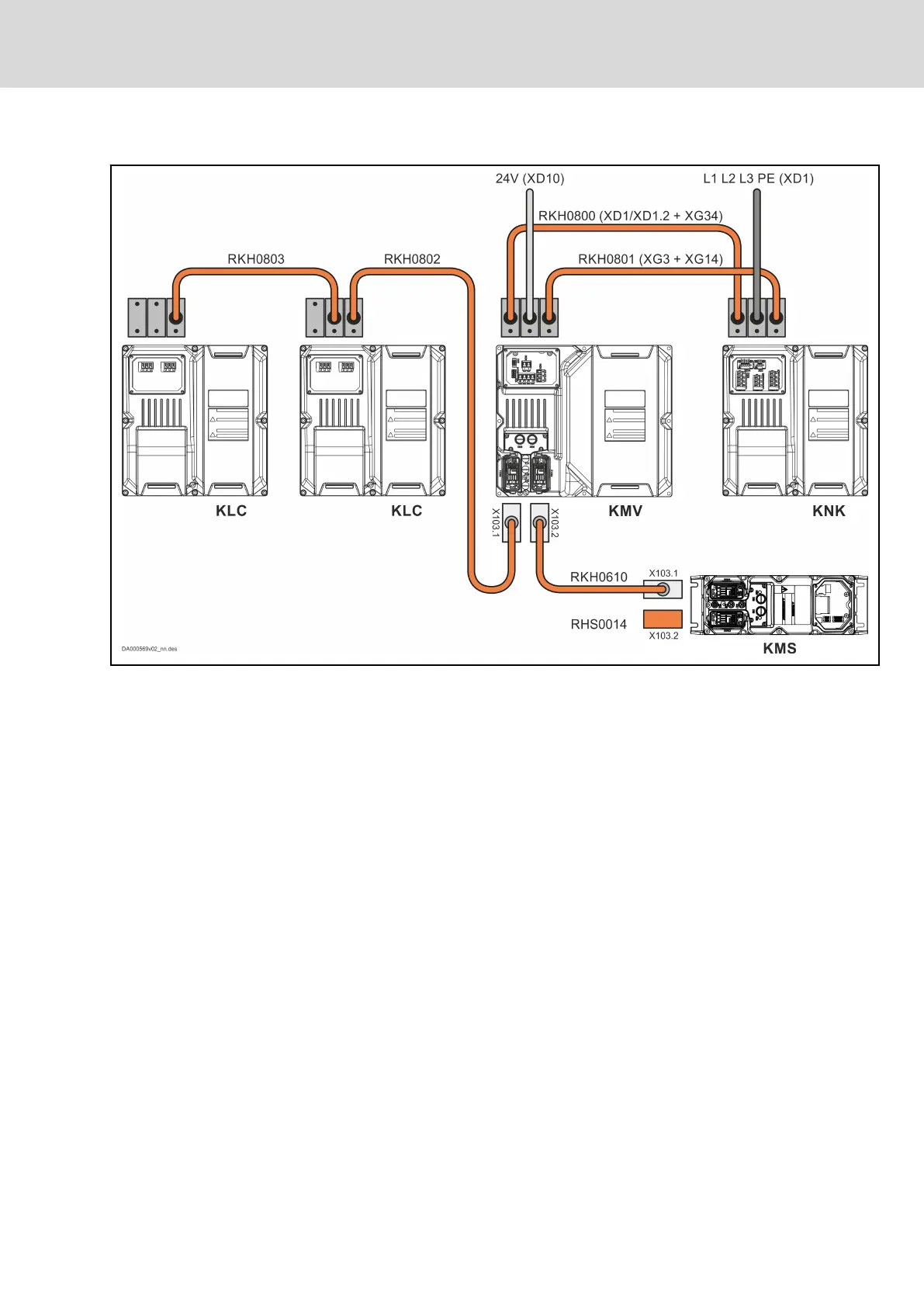

Cables for IndraDrive Mi drive system with KMV03 as supply unit
24V (XD10) KMV control voltage (XD10 connection point); customer
assembles the cable (HAS05.1-020 accessories re‐
quired)
L1 L2 L3 PE (XD1) KNK mains voltage and equipment grounding conductor
(XD1 connection point); customer assembles the cable
(HAS05.1-019 accessories required)
RHS0014 Terminal connector
RKH0610 Exemplary ready-made hybrid cable; connects KMV
(X103.2) to KMS/KSM (X103.1); the actual hybrid cable
(RKH0xxx) depends on the desired cable outgoing direc‐
tions at the X103.1 and X103.2 connection points
RKH0800 Ready-made hybrid cable; connects KMV (XD1, XG34)
to KNK (XD1.2, XG34)
RKH0801 Ready-made hybrid cable; connects KMV (XG3, XG14)
to KNK (XG3, XG14)
RKH0802 Ready-made hybrid cable; connects KMV (X103.1) to
KLC (XG9)
RKH0803 Ready-made hybrid cable; interconnects 2 KLC
Fig. 9-10: Cables for IndraDrive Mi system with KMV03 as supply unit
IndraDrive Mi Drive Systems with KCU02, KSM02,
KMS02/03, KMV03, KNK03, KLC03
295/407
Mounting and installation
R911335703_Edition 04 Bosch Rexroth AG
