KSM/KMS - KSM/KMS
Applies to: RKH0011, RKH0012, RKH0110, RKH0210, RKH0111, RKH0211,
RKH0212, RKH0213, RKH0214, RKH0215, RKH0610, RKH0611
KSM/KMS plug-in
connector
Bulk cable KSM/KMS plug-in
connector
RHS0011/C03
RHS0016/C03
REH0800 RHS0011/C03
RHS0016/C03

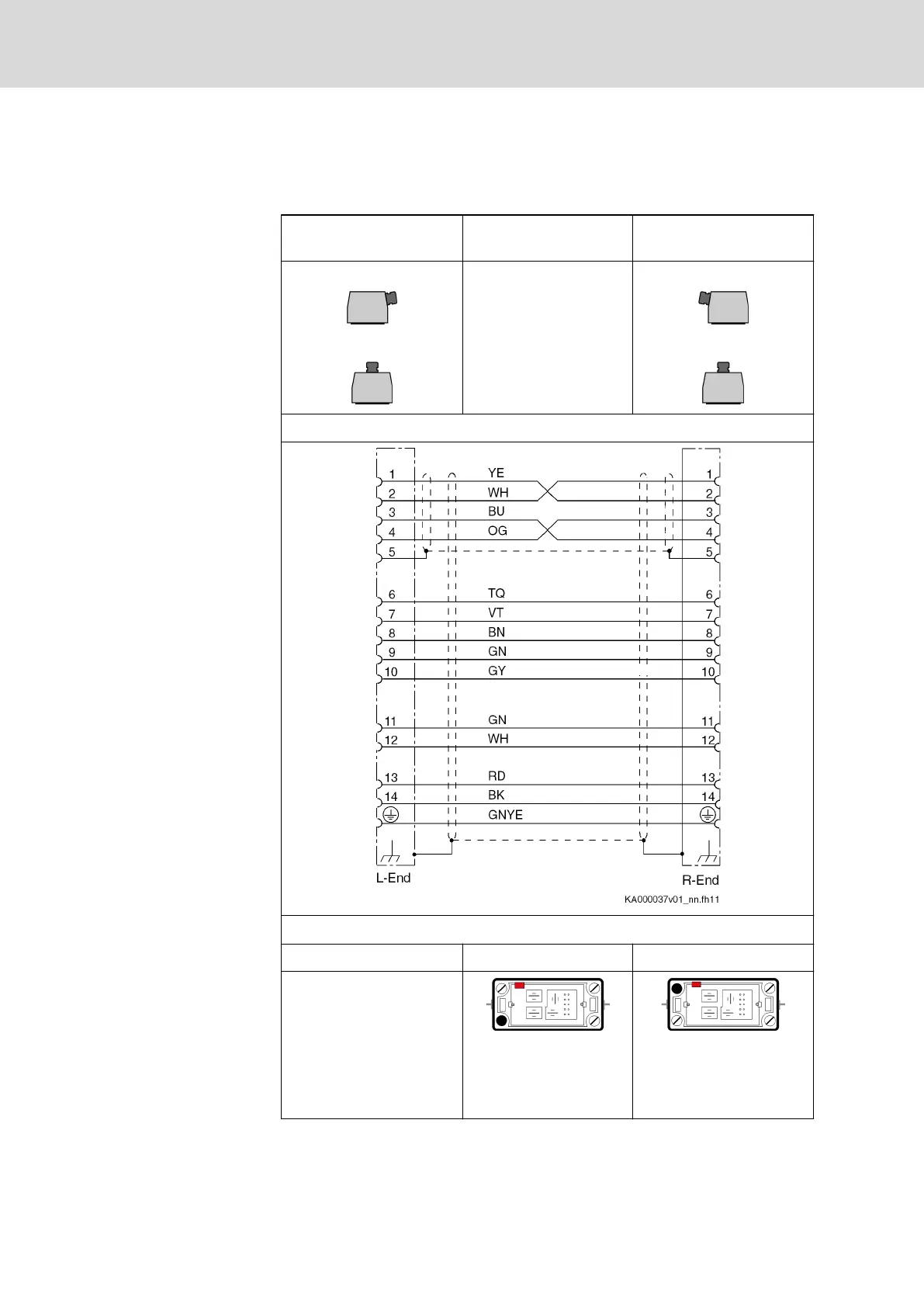

Interconnection diagram
Coding at KSM/KMS plug-in connector
1)
Cable type L-End (X103.1) R-End (X103.2)
RKH0011
RKH0110
RKH0210
RKH0212
RKH0214
RKH0610
124/407
Technical data of the components
IndraDrive Mi Drive Systems with KCU02, KSM02,
KMS02/03, KMV03, KNK03, KLC03
Bosch Rexroth AG R911335703_Edition 04
