10.5 HAS05.1-018, dummy plate for KMS03 encoder connection
Material number: R911371165

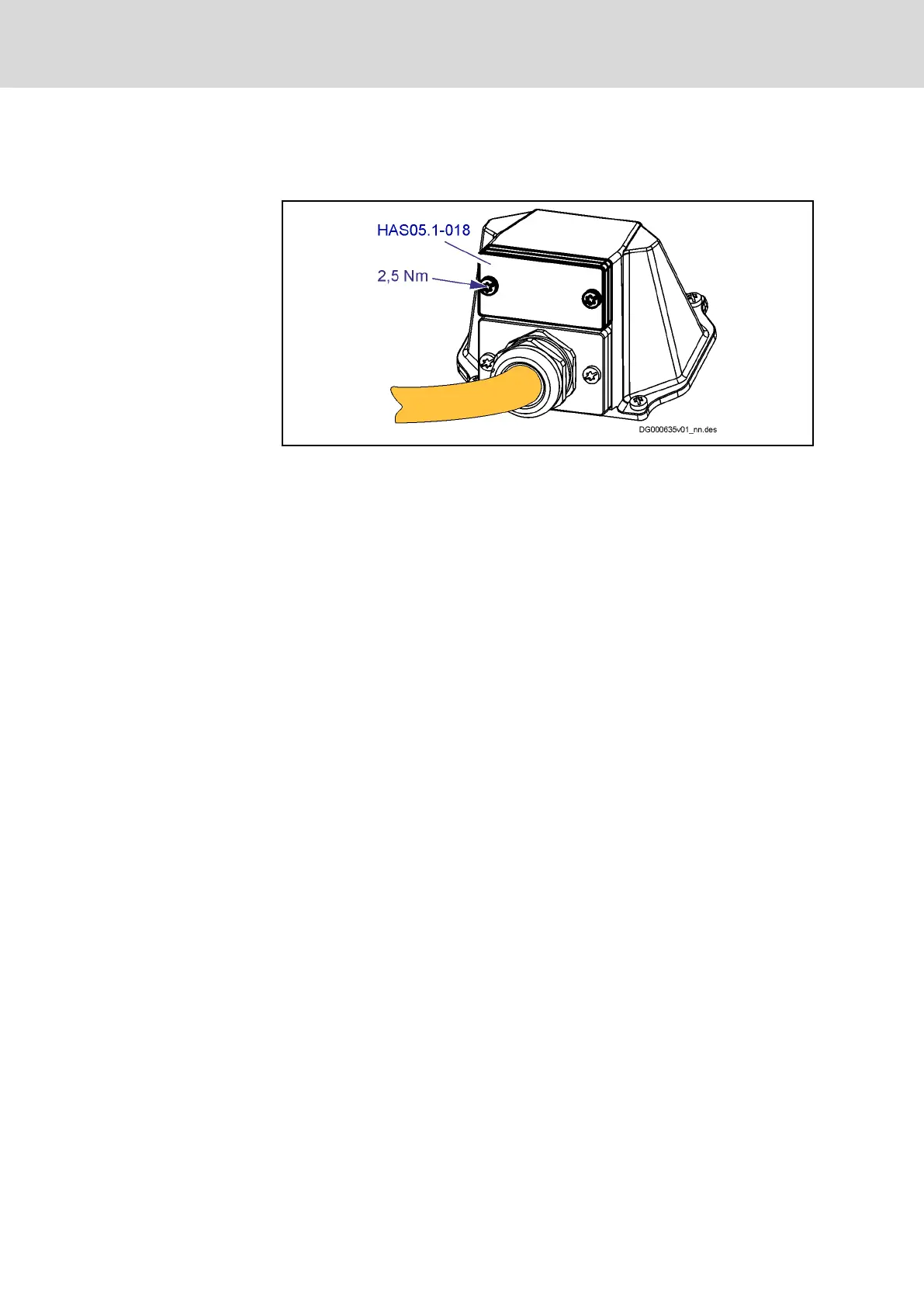

Fig. 10-3: HAS05.1-018, dummy plate for KMS03 encoder connection
The accessory contains the following parts:
● Plate incl. screws
304/407
Accessories
IndraDrive Mi Drive Systems with KCU02, KSM02,
KMS02/03, KMV03, KNK03, KLC03
Bosch Rexroth AG R911335703_Edition 04
