10.10.4 Dimensions
1 Mounting clearance (standard)
2 More mounting clearance with HAS10 accessory (fixing clip for
hybrid cable connectors). More mounting clearance is required
to install the HAS10 accessory with a screwdriver.
B Drilling pattern

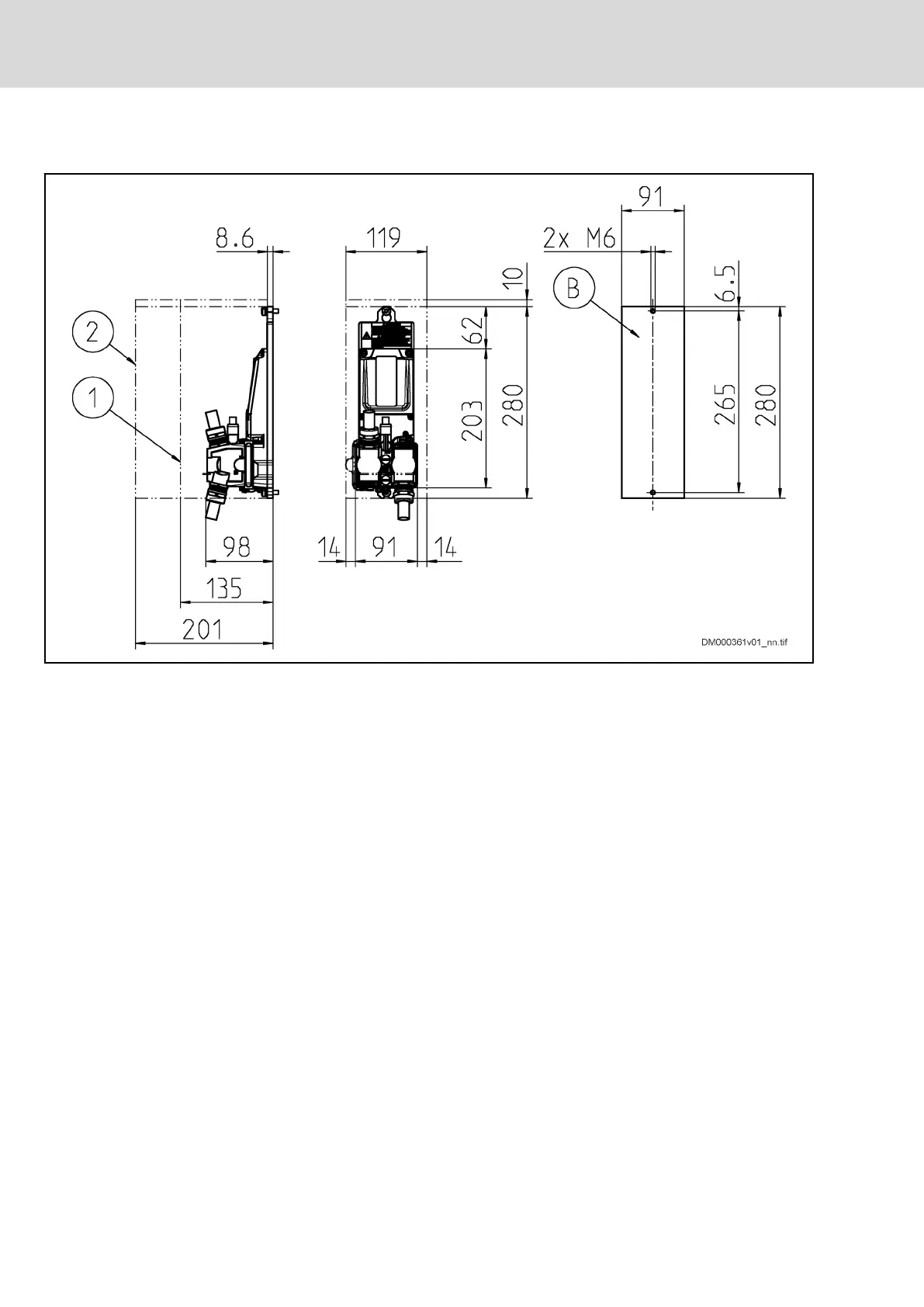

Fig. 10-15: HAS05.1-024, dimensions
318/407
Accessories
IndraDrive Mi Drive Systems with KCU02, KSM02,
KMS02/03, KMV03, KNK03, KLC03
Bosch Rexroth AG R911335703_Edition 04
