Flexible cable tracks
Applies to: RKH0710
KSM/KMS plug-in
connector
Bulk cable KSM/KMS plug-in
connector
RHS0023/CM02 REH0803 RHS0023/CM02

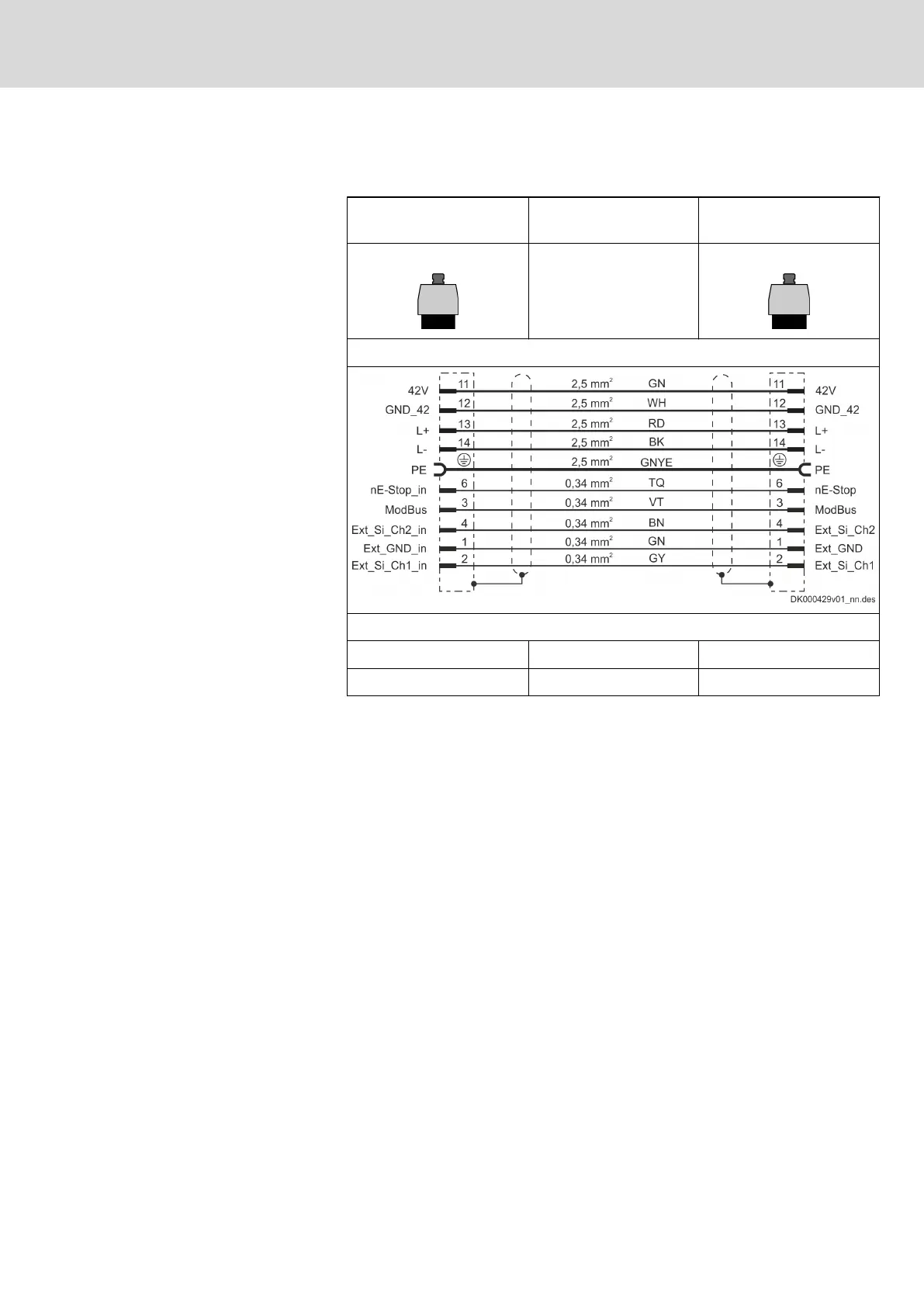

Interconnection diagram
Coding at KSM/KMS plug-in connector
Cable type L-End R-End
RKH0710 Not coded Not coded
Tab. 5-37: Parts of ready-made hybrid cable for flexible cable tracks
IndraDrive Mi Drive Systems with KCU02, KSM02,
KMS02/03, KMV03, KNK03, KLC03
137/407
Technical data of the components
R911335703_Edition 04 Bosch Rexroth AG
