Applies to: RKH0900, RKH0902, RKH0905, RKH0907
Plug-in connector, circular
connector
Bulk cable Plug-in connector, circular
connector/KSM/KMS
RHS2322/C03
1)
REH0800
RHS2321/C03
1)
RHS0011/C03
2)
RHS0016/C03
3)

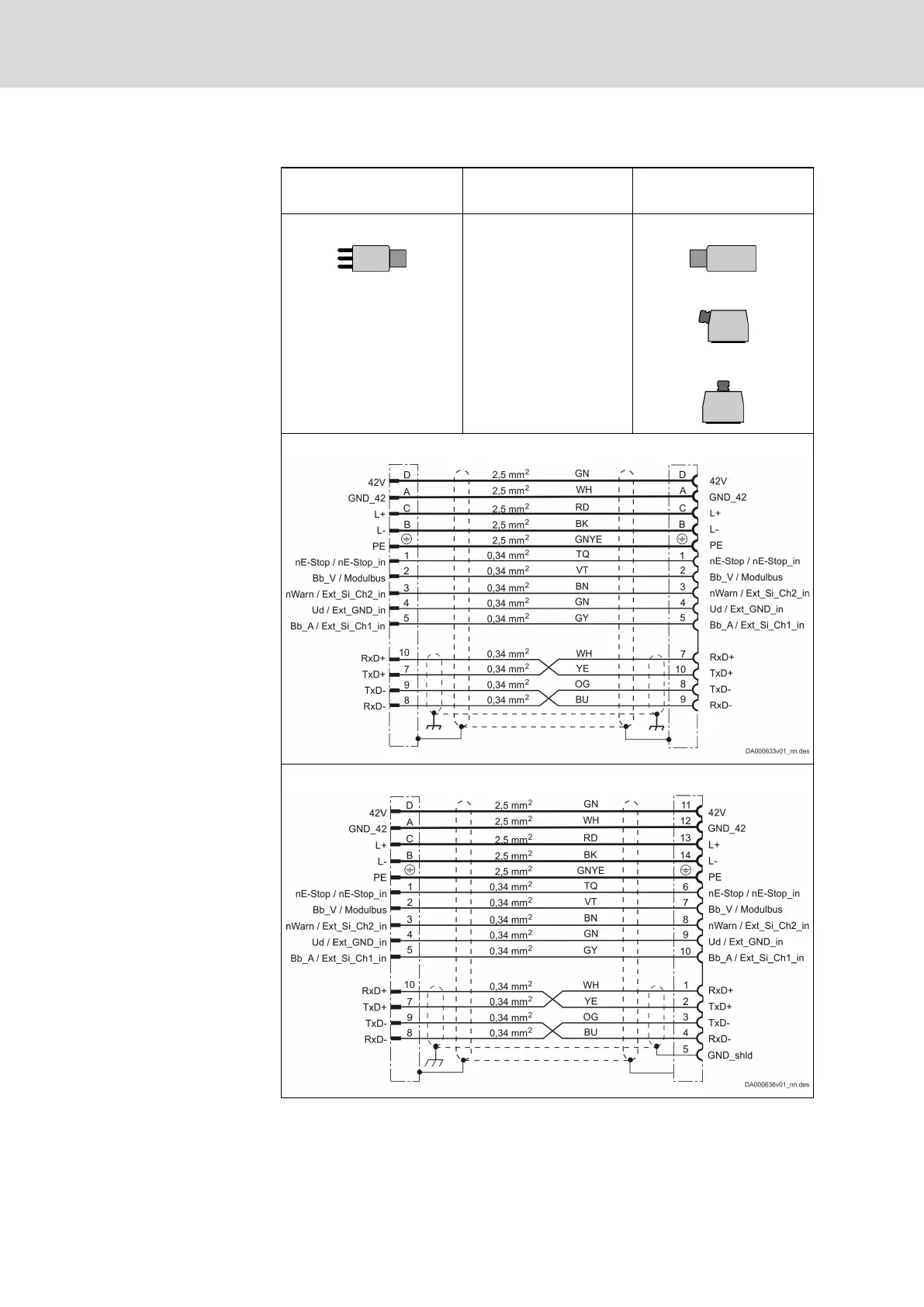

Interconnection diagram (RHS2322 - RHS2321)
Interconnection diagram (RHS2322 -RHS0011/RHS0016)
1) RKH0900
2) RKH0902, RKH0905
3) RKH0907
Tab. 5-29: RKH0900, RKH0902, RKH0905, RKH0907
128/407
Technical data of the components
IndraDrive Mi Drive Systems with KCU02, KSM02,
KMS02/03, KMV03, KNK03, KLC03
Bosch Rexroth AG R911335703_Edition 04
