Applies to: RKH0903
KCU plug-in connector Bulk cable Plug-in connector, circular
connector
RHS0005/C03 REH0800 RHS2321/C03

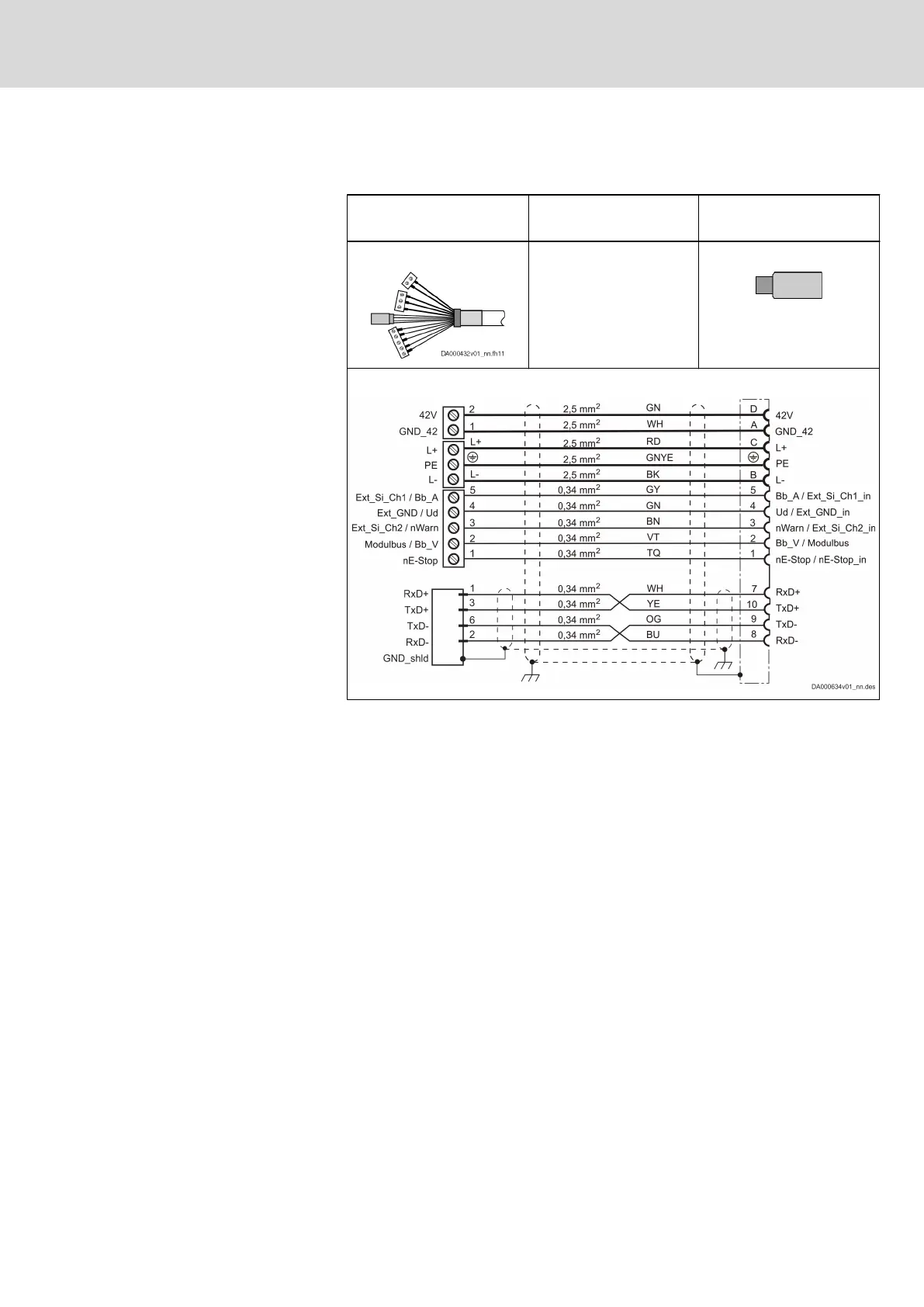

Interconnection diagram
Tab. 5-30: Parts of ready-made hybrid cables from KCU to circular connector
IndraDrive Mi Drive Systems with KCU02, KSM02,
KMS02/03, KMV03, KNK03, KLC03
129/407
Technical data of the components
R911335703_Edition 04 Bosch Rexroth AG
