Applies to: RKH0909
HAS05.1-023 plug-in
connector
Bulk cable Plug-in connector, circular
connector
RHS0015/CM03 REH0800 RHS2321/CM03

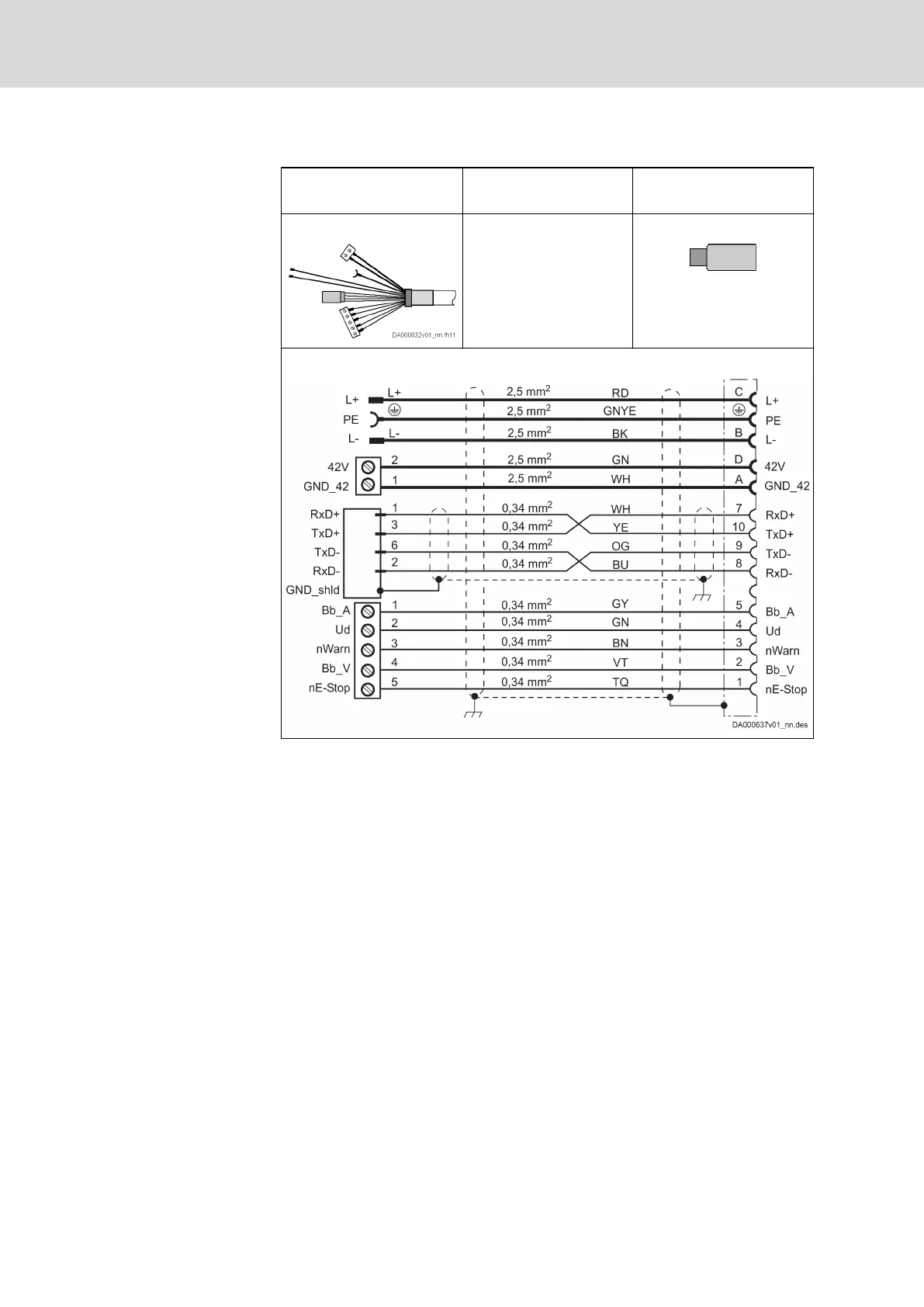

Interconnection diagram
Tab. 5-31: Parts of ready-made hybrid cables from HAS05.1-023 to circular
connector
130/407
Technical data of the components
IndraDrive Mi Drive Systems with KCU02, KSM02,
KMS02/03, KMV03, KNK03, KLC03
Bosch Rexroth AG R911335703_Edition 04
