WARNING! Lethal electric shock by live parts with
more than 50 V!

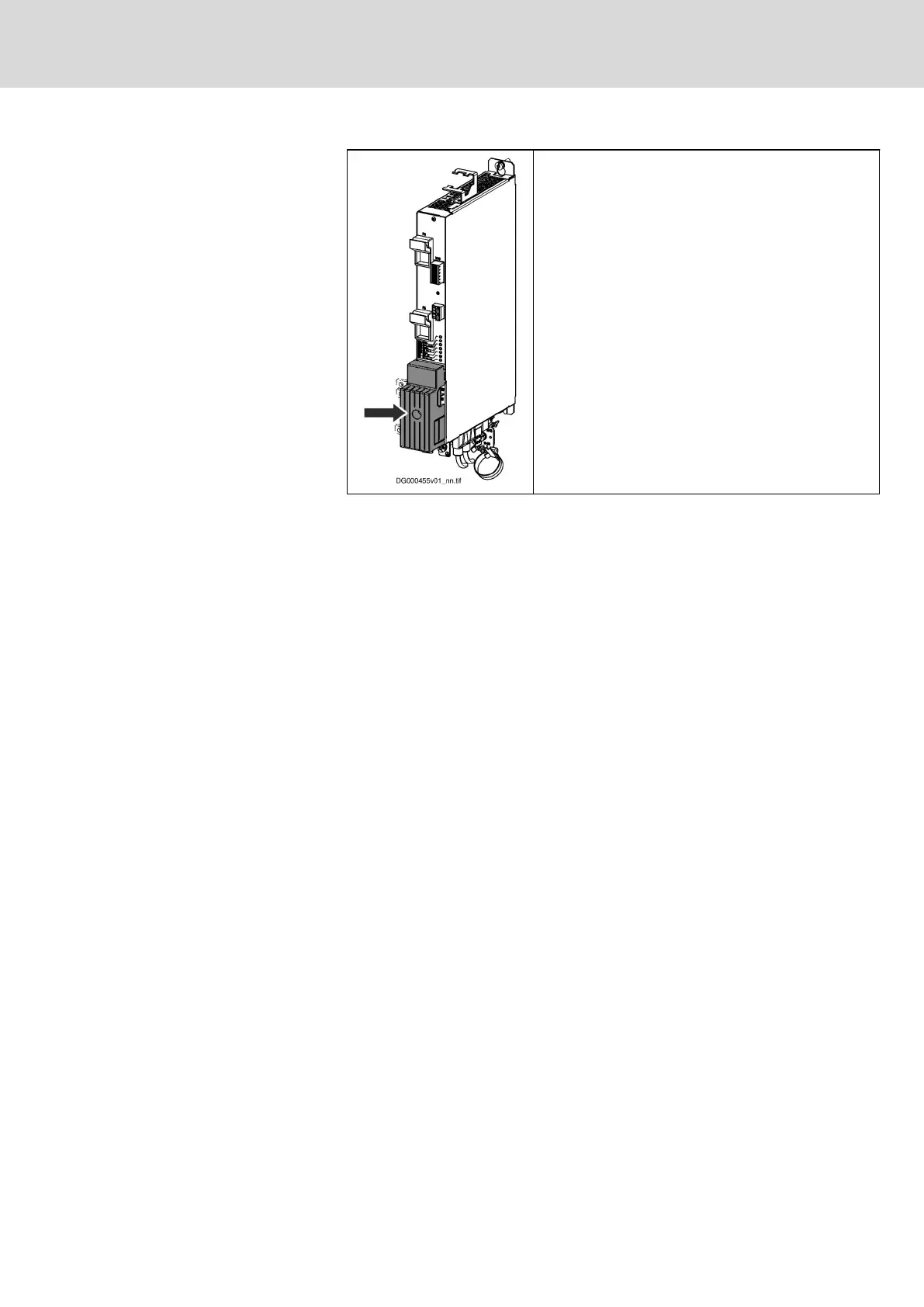

The appropriate touch guard must be mounted for
each device following connection work.
Never operate the device without the touch guard
mounted.
Tab. 6-14: Touch Guard
Adjusting Mounting Depths
HMV01 and HCS03 devices have greater mounting depths than the drive
connection box KCU. For connecting the drive connection box KCU to an
HMV01 or HCS03 device, you must therefore use the control cabinet adapter
HAS03.1-002 which compensates the different mounting depths.
IndraDrive Mi Drive Systems with KCU02, KSM02,
KMS02/03, KMV03, KNK03, KLC03
155/407
Connection points
R911335703_Edition 04 Bosch Rexroth AG
