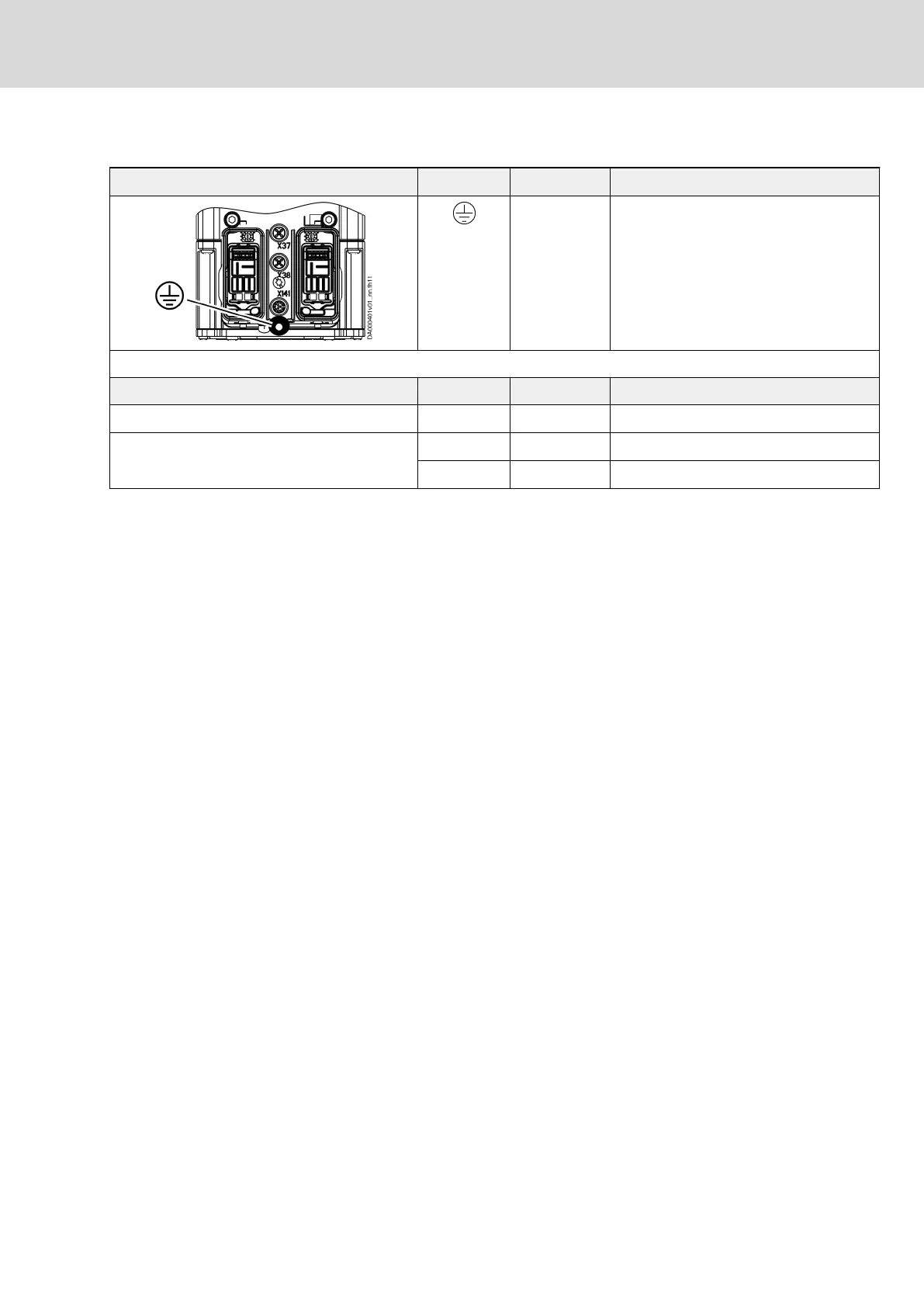

Second connection point of equipment grounding conductor at housing
View Connection Signal name Function
Equipment
grounding
conductor
Second connection point of equipment
grounding conductor
Is used to connect KSM0x/KMS0x to a
grounded part of the installation, e.g. the
machine base
Thread M5 (for ring cable lug) Unit min. max.
Tightening torque Nm 2.6 3.1
Cable cross section stranded wire
mm
2
2.5 -
AWG 14 -
Tab. 6-32: Second connection point of equipment grounding conductor, proper‐
ties
IndraDrive Mi Drive Systems with KCU02, KSM02,
KMS02/03, KMV03, KNK03, KLC03
179/407
Connection points
R911335703_Edition 04 Bosch Rexroth AG
