Peak power
Comply with KCU peak power
The sum of the electric powers of all KSM/KMS of a drive line
should not exceed the indicated value P
DC_max
of the KCU drive
connection box.
P
LN_max
Peak power of KSM/KMS
P
DC_max
KCU peak power
Fig. 7-8: KCU peak power
Derating of Peak Power
As the length of the hybrid cable increases, the peak power available at the
cable end is reduced.

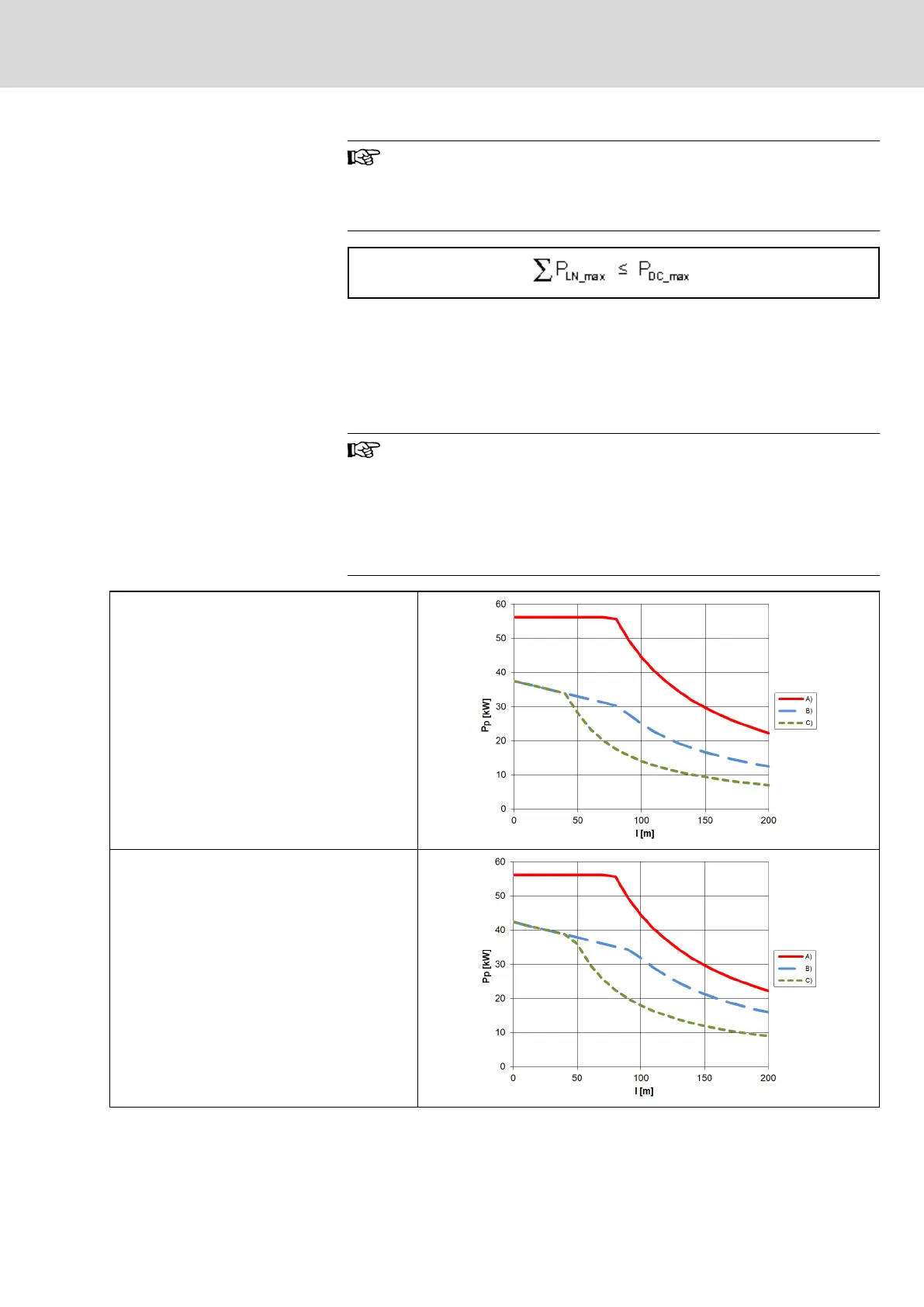

Peak power depending on the cable length
Due to occurring voltage drops, the effective length of the cable
influences the available peak power at KSM/KMS.
Observe the following diagrams and the sections
● "Peak power when accelerating" on page 224
● " Peak Power when Decelerating" on page 225
DC 500 V
DC 565 V
IndraDrive Mi Drive Systems with KCU02, KSM02,
KMS02/03, KMV03, KNK03, KLC03
223/407
Notes on project planning
R911335703_Edition 04 Bosch Rexroth AG
