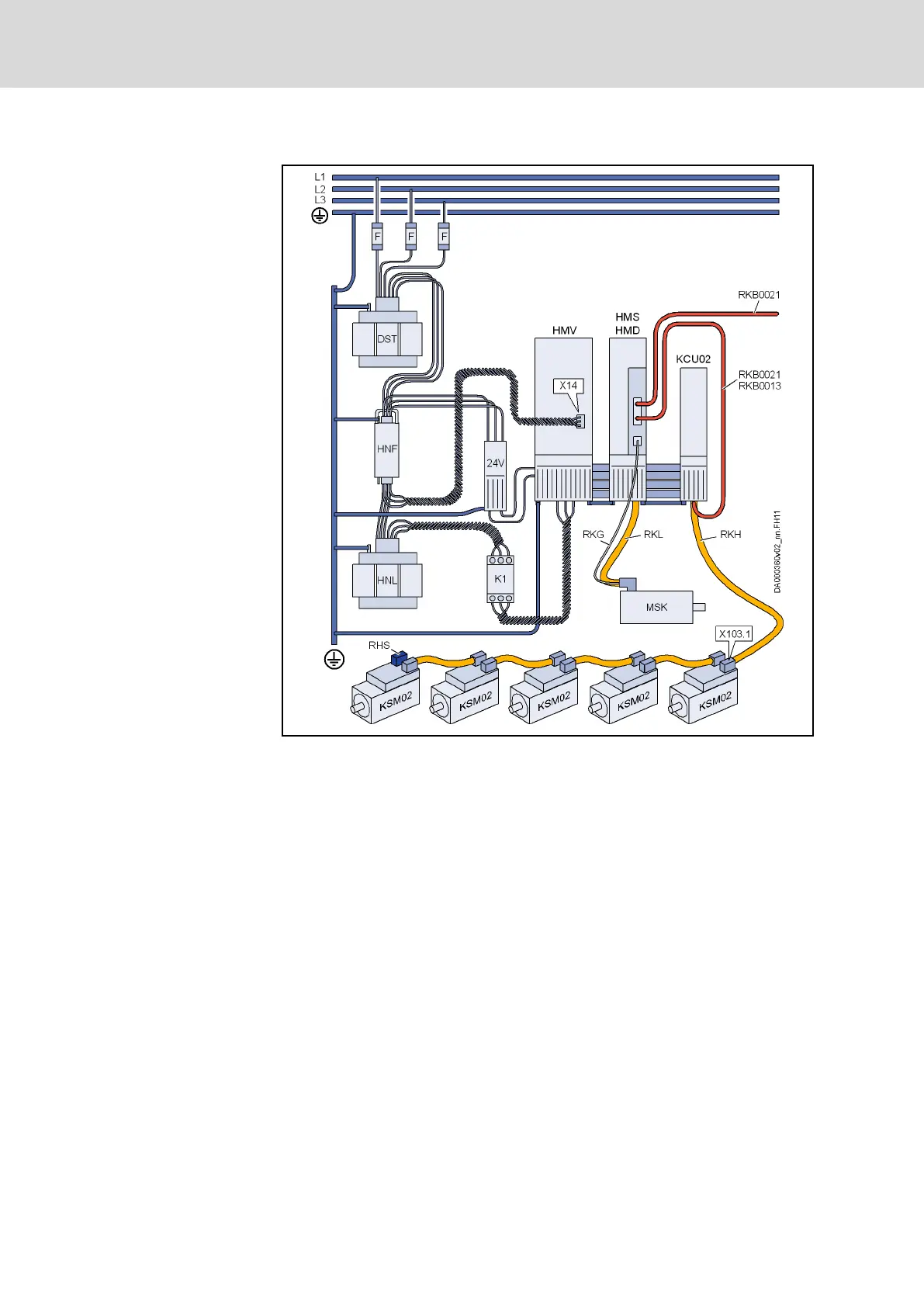

IndraDrive Mi drive system with HMV01 supply unit:
24V 24V supply
DST Transformer (optional)
F Fuses
HMD, HMS Inverter (optional)
HMV01 Supply unit
HNF Mains filter
HNL Mains choke
K1 Mains contactor (only for supply units without integrated mains
contactor, e.g. HMV01.1R-W0120)
KCU02 Drive connection box
KSM02 Motor-integrated servo drive (alternative: KMS02 near motor
servo drive and motor)
MSK Servo motor (optional)
RHS Terminal connector
RKB0021 Ethernet cable of variable length
RKB0013 Ethernet cable of defined length (max. 0.55 m)
RKG Encoder cable (optional)
RKH Hybrid cable
RKL Motor cable (optional)
X14 Mains synchronization (only with regenerative HMVs)
X103.1 Connection of RKH hybrid cable at first KSM02
Fig. 1-3: IndraDrive Mi drive system with HMV01
10/407
System presentation
IndraDrive Mi Drive Systems with KCU02, KSM02,
KMS02/03, KMV03, KNK03, KLC03
Bosch Rexroth AG R911335703_Edition 04
