A Servo drives evenly distributed over the entire drive line
B Servo drives evenly distributed at the end of the drive line
C Servo drives evenly distributed starting at 20% of the drive line
D Limit value: Hybrid cable length = 16 m with P
42V
= 588 W
l
total_max
Maximum allowed hybrid cable length of a drive line
P
42V
KCU output X53 load (without cable losses)

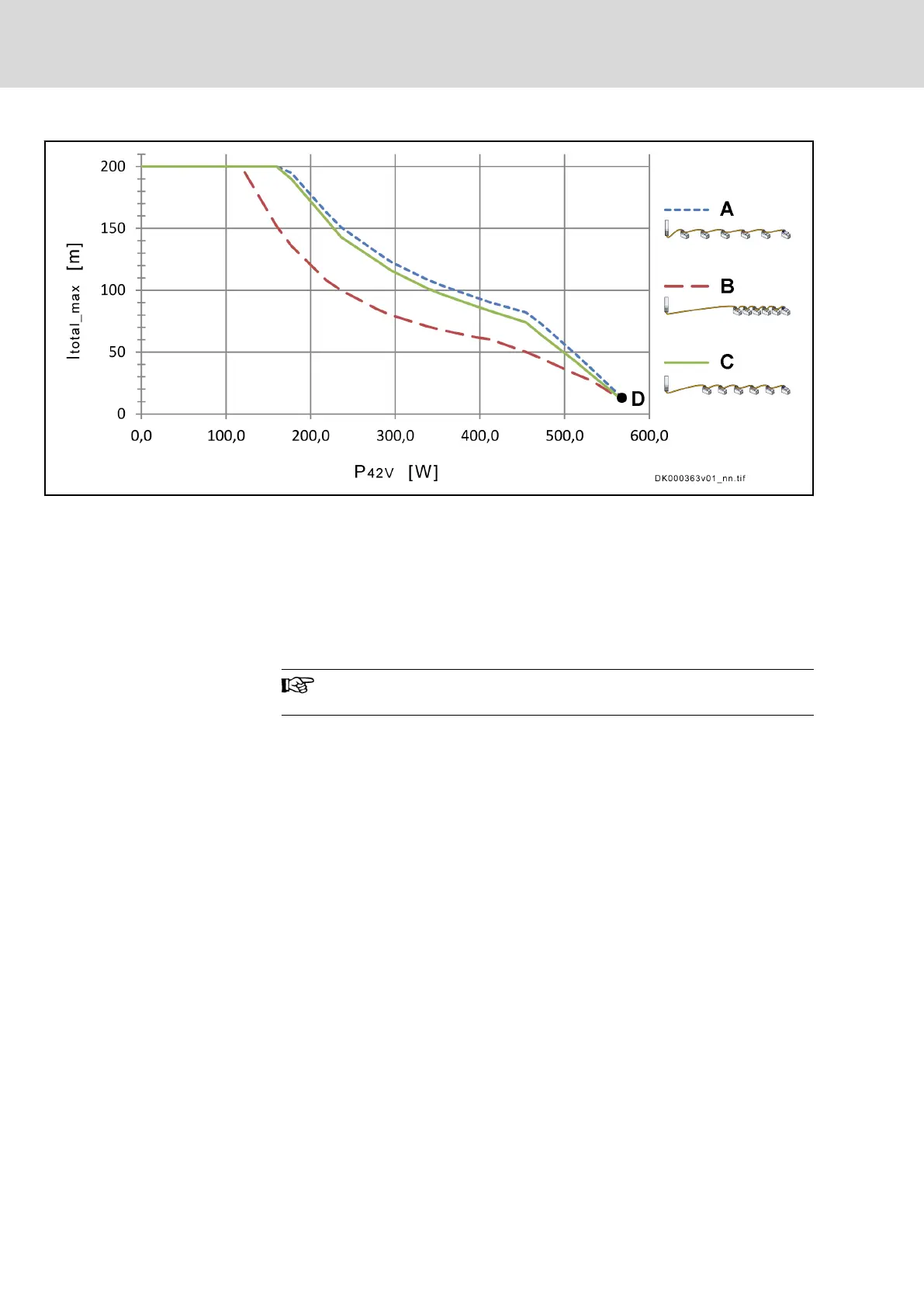

Fig. 7-14: Maximum allowed hybrid cable length of a drive line
For exact calculations of the allowed hybrid cable lengths in limit
cases, please contact our sales representative.
The figure below shows P
N3(KCU)
(KCU power consumption from 24V supply)
depending on P
42V
(KCU output X53 load).
232/407
Notes on project planning
IndraDrive Mi Drive Systems with KCU02, KSM02,
KMS02/03, KMV03, KNK03, KLC03
Bosch Rexroth AG R911335703_Edition 04
