A Servo drives evenly distributed over the entire drive line
B Servo drives evenly distributed at the end of the drive line
C Servo drives evenly distributed starting at 20% of the drive line
P
42V
KMV output XD10 load (without cable losses)
P
N3(KMV)
Maximum KMV power consumption from 24V supply

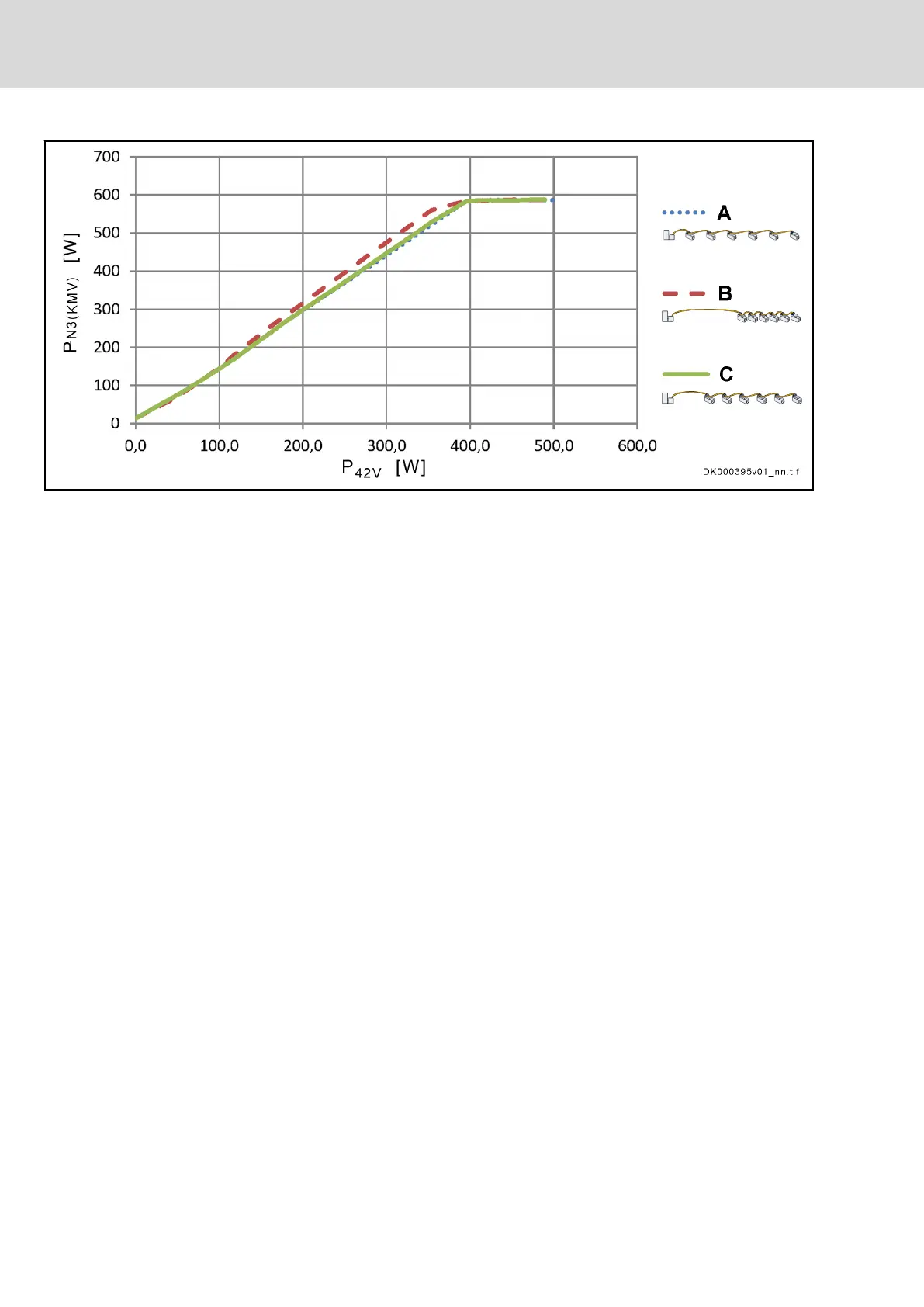

Fig. 7-17: P
N3(KMV)
vs. P
42V
236/407
