30 A DC bus fuses on top-hat rail
HCS01 HCS01.1E-W0054
RKH Hybrid cable (RKH0341, RKH0441, RKH0541, RKH0909)

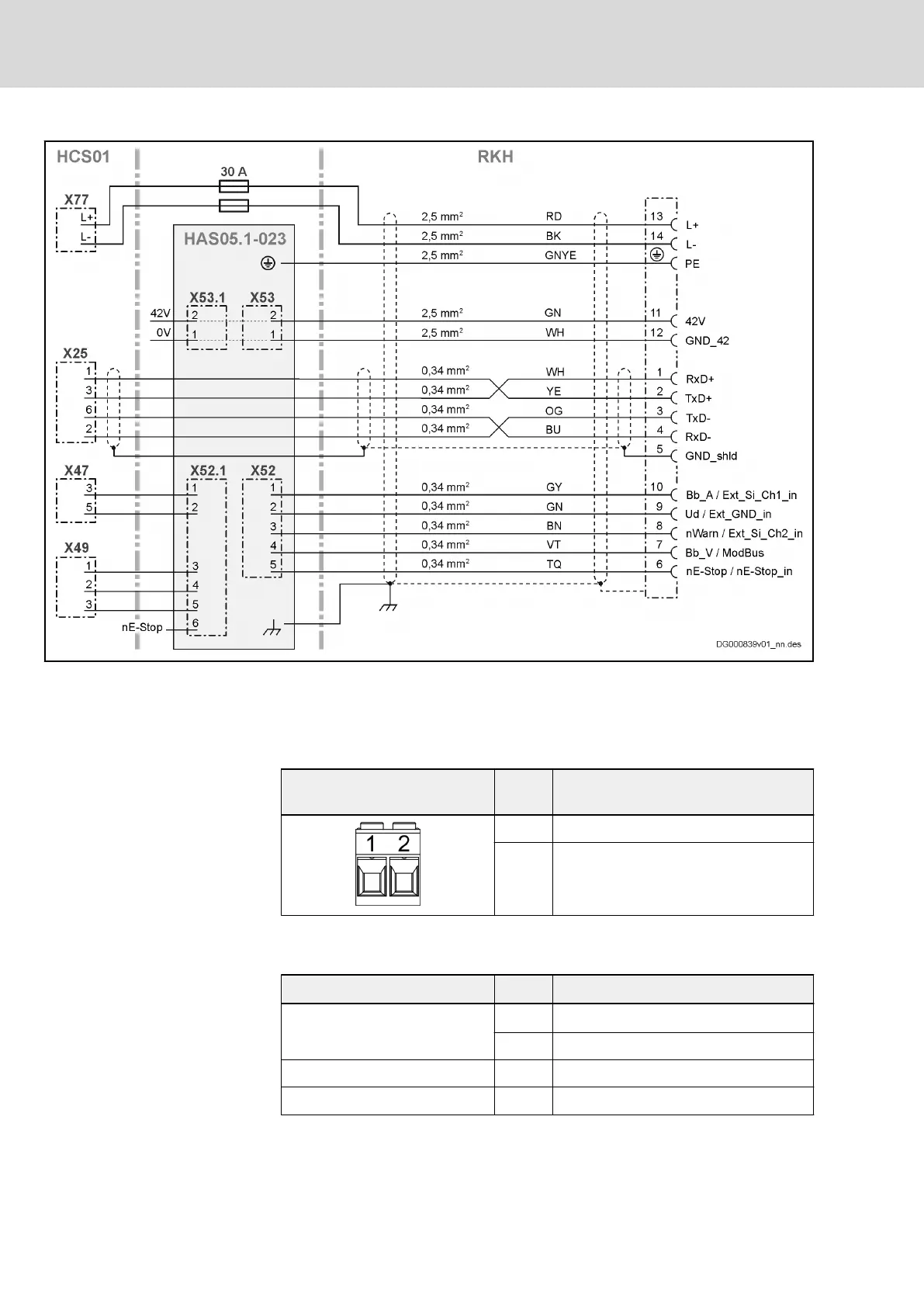

Fig. 10-10: Connection diagram
X53, X53.1; connection point
View Connec
tion
Function
1 Control voltage negative pole
2 Control voltage positive pole
Tab. 10-5: Pin assignment
Mechanical data
Screw terminal (connector) Unit max.
Connection cable
Stranded wire
mm
2
2.5
AWG 12
Stripped length mm 8
Tightening torque Nm 0.6
Tab. 10-6: Mechanical data
312/407
Accessories
IndraDrive Mi Drive Systems with KCU02, KSM02,
KMS02/03, KMV03, KNK03, KLC03
Bosch Rexroth AG R911335703_Edition 04
