Sercos

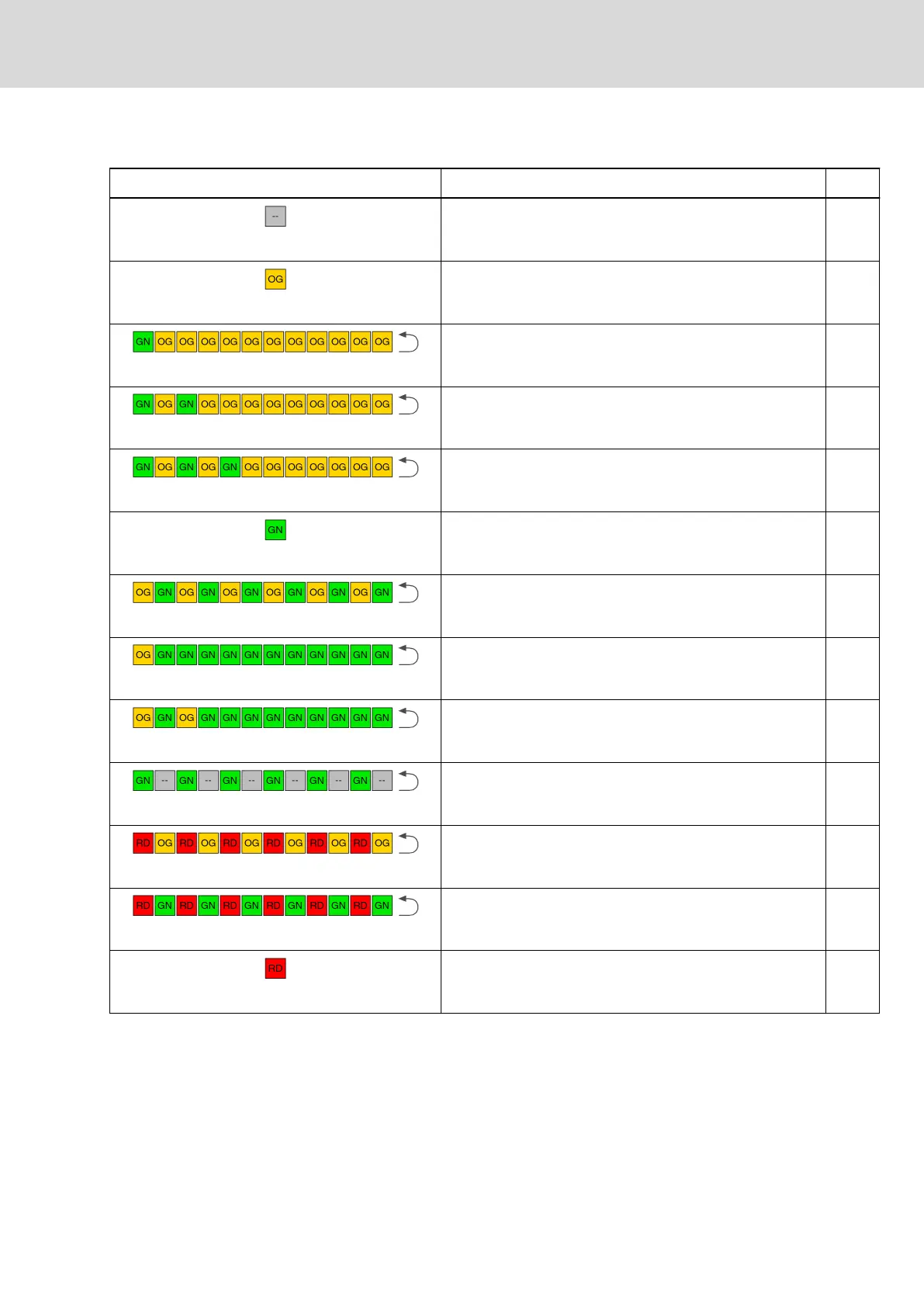

LED: Color / flashing pattern
1)
Description
Prio
2)
Off
NRT mode (no Sercos communication)
3)
6
Permanently lit orange
CP0 (communication phase 0 active) 6
Flashing orange-green
CP1 (communication phase 1 active) 6
Flashing orange-green
CP2 (communication phase 2 active) 6
Flashing orange-green
CP3 (communication phase 3 active) 6
Permanently lit green
CP4 (communication phase 4 active) 6
Flashing orange-green
HP0 (hot-plug phase 0 active) 6
Flashing orange-green
HP1 (hot-plug phase 1 active) 6
Flashing orange-green
HP2 (hot-plug phase 2 active) 6
Flashing green
Transition from Fast forward to Loopback 5
Flashing red-orange
Application error
(sub-device/device error [C1D])
4
Flashing red-green
MST warning
4)
(S‑0‑1045, Sercos: Device Status [S‑Dev], bit15)
3
Permanently lit red
Communication error
(sub-device/device error [C1D])
2
