5) 6) Manufacturing tolerance ±5%
Tab. 5-1: KSM02.1B-041, KSM02.1B-061, KSM02.1B-071, KSM02.1B-076 da‐
ta sheet
Motor data
The motor data and characteristics are determined under the following
conditions:
● Ambient temperature 40 °C
● Insulated structure (aluminum flange)
● Amplifier temperature S-0-0384 = 100 °C (ΔT = 60 K); this temperature
is slightly higher than the temperature of the motor housing
● Switching frequency 4 kHz (at 8 kHz reduced continuous torque and
peak torque)
● Motors with radial shaft sealing ring
Operation modes
KSM02 motor-integrated servo drives are documented according to the test
criteria and measuring methods of EN 60034-1. The specified characteristics
correspond to operation modes S1 or S3.
P Load
P
V
Electric losses
Θ Temperature
Θ
max
Highest temperature (motor housing)
t Time
T
C
Duty cycle
Δt
P
Operating time with constant load
Δt
V
Idle time

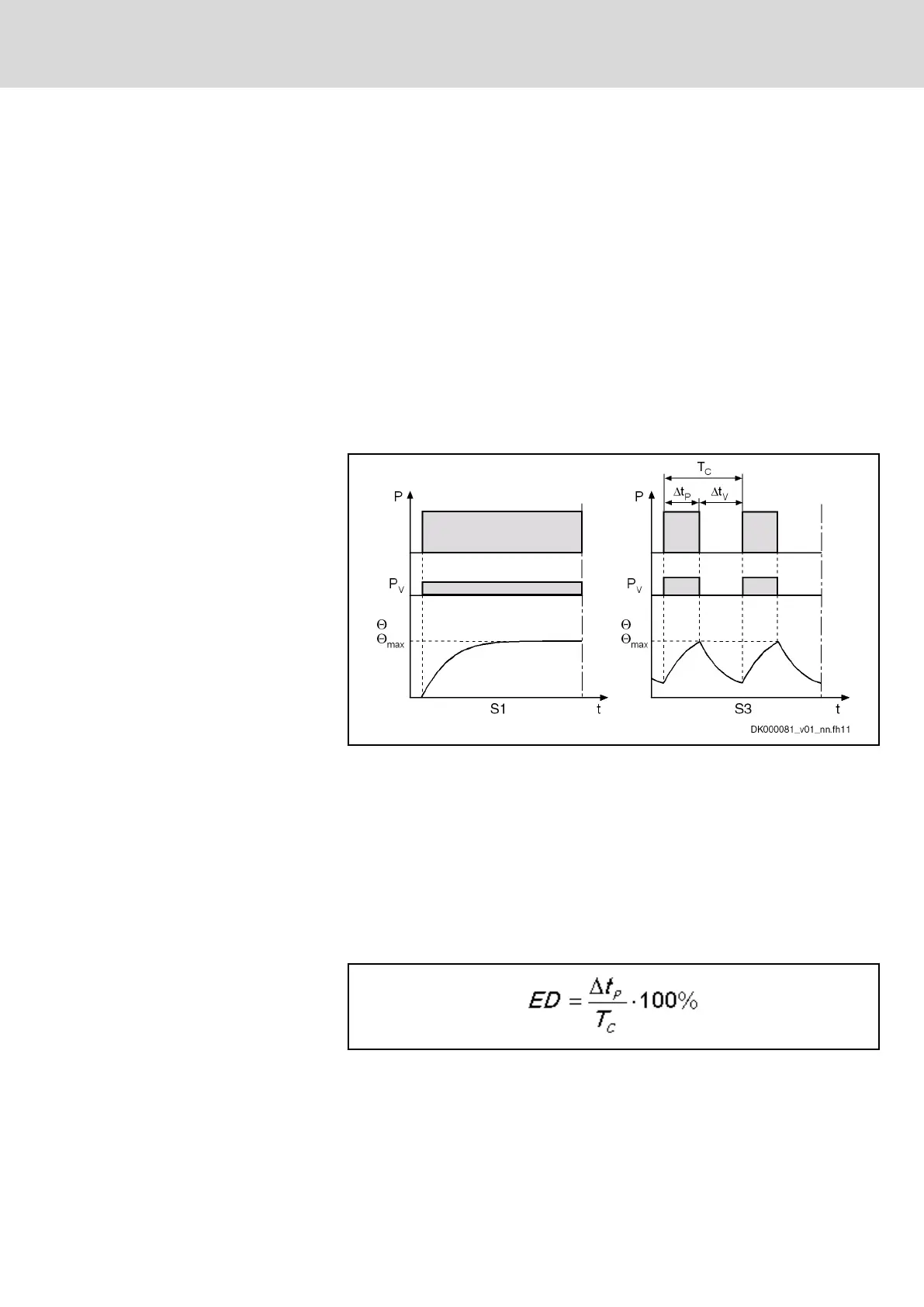

Fig. 5-1: Operation modes according to EN 60034-1: 1998
Duty cycle
Operation mode S3 (intermittent duty) is supplemented by specification of the
duty cycle ED %. The duty cycle is calculated as follows:
ED Relative duty cycle in %
Δt
P
Operating time with constant load
Fig. 5-2: Relative duty cycle
The values specified in the documentation have been determined on the
basis of the following parameters:
Cycle duration: 1 min
IndraDrive Mi Drive Systems with KCU02, KSM02,
KMS02/03, KMV03, KNK03, KLC03
63/407
Technical data of the components
R911335703_Edition 04 Bosch Rexroth AG
