1 Mounting clearance (standard)
2 More mounting clearance with HAS10 accessory (fixing clip for
hybrid cable connectors). More mounting clearance is required
to install the HAS10 accessory with a screwdriver. The exact
dimension of the mounting clearance is not specified, since the
required mounting clearance depends on the length of the
screwdriver used.
B Boring dimensions

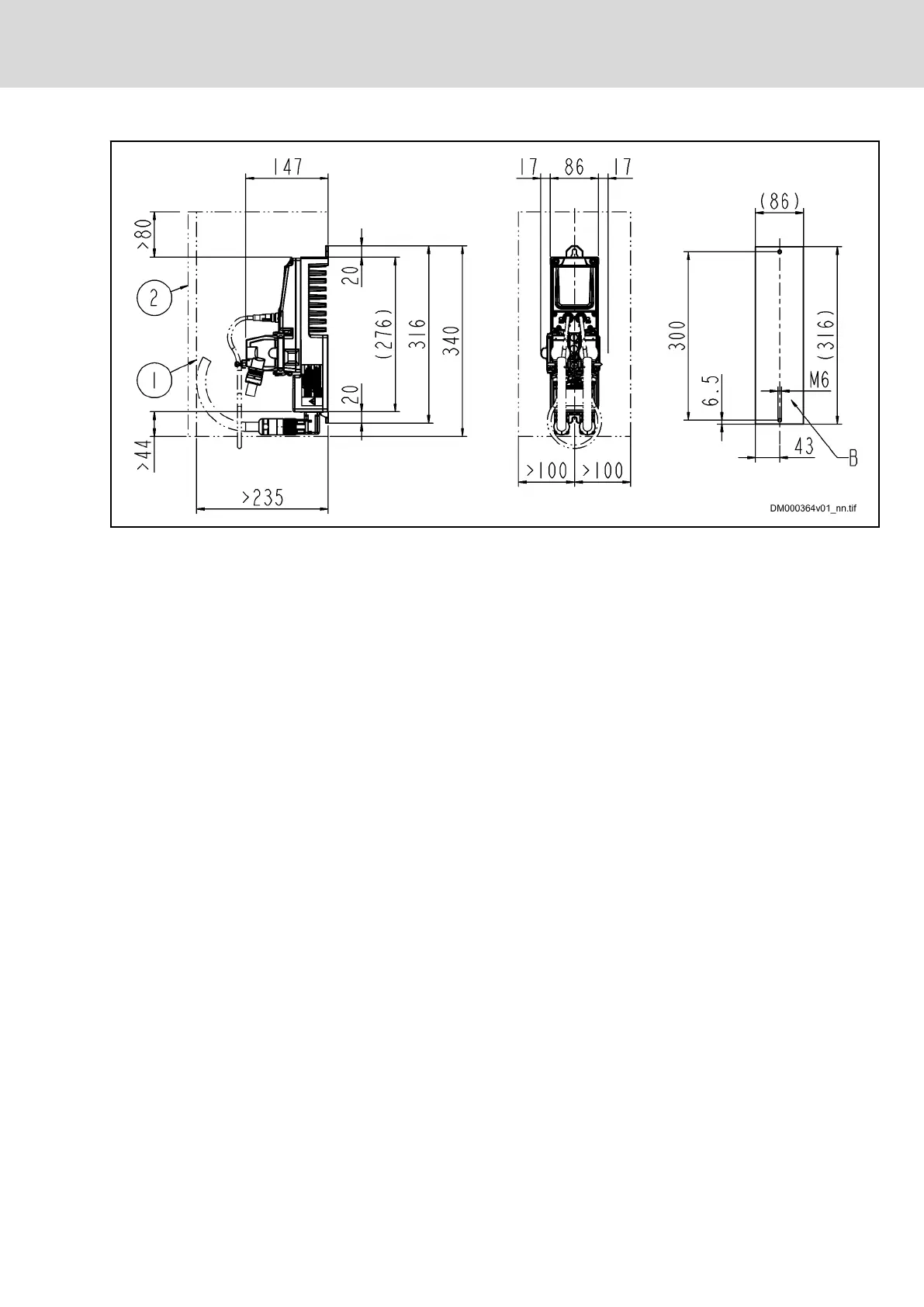

Fig. 5-21: Dimensions (with angular connector for motor and encoder connec‐
tion)
IndraDrive Mi Drive Systems with KCU02, KSM02,
KMS02/03, KMV03, KNK03, KLC03
85/407
Technical data of the components
R911335703_Edition 04 Bosch Rexroth AG
