Daedong DSC48 - Page 113

Apr. 2007
2
-37
DSC48
417W261A
417W260A

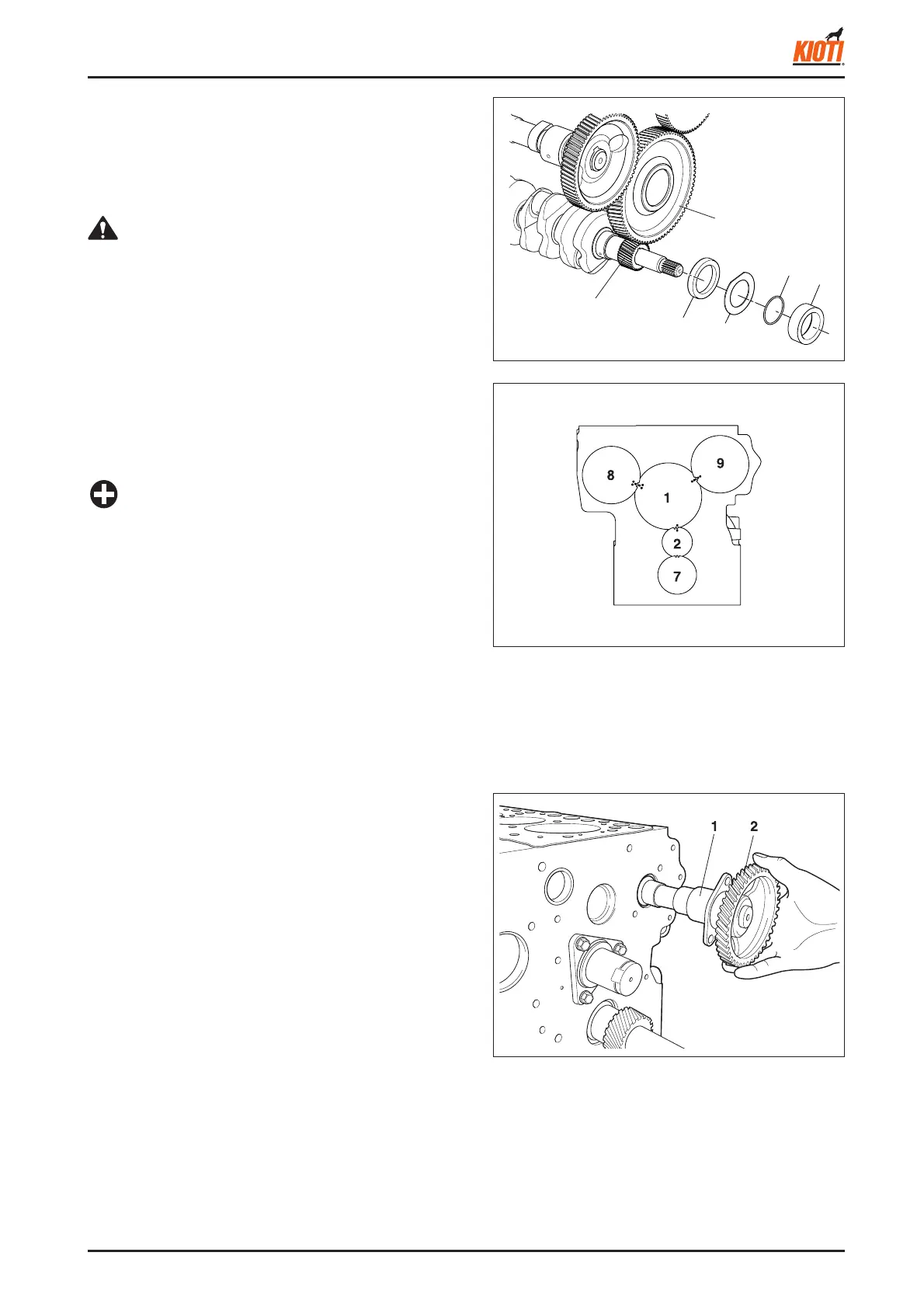

(1) Idle gear (6) Crankshaft collar
(2) Crank gear (7) Oil pump gear
(3) Crank gear collar (8) Injection pump gear
(4) Oil slinger (9) Cam gear
(5) O-ring
► IDLE GEAR AND CRANK GEAR
1. Remove the crankshaft collar (6), O-ring (5), oil slinger
(4), and crank gear collar (3) in order.
2. Remove the idle gear (1).
3. Remove the crank gear (2).
• When installing the idle gear, align the alignment marks
referring to the fi gure.
IMPORTANT
• When removing the oil pump, loosen the pump gear nut
if the oil pump gear (7) and crank gear (2) do not move.
CAUTION
<When reassembling>
• Heat the crankshaft gear to approx. 80°C and insert it
into the crankshaft.
• Apply oil on the O-ring.
1
5
6
4
3
2
417W262A
(1) Camshaft (2) Cam gear
► CAMSHAFT
1. Align the holes on the cam gear (2) with the bolts. And
loosen the bolts with a T-shaped handle wrench.
2. Draw out the camshaft (1).
3. Remove the cam gear (2).
<When reassembling>
• Heat the cam gear to approx. 80°C and insert it into the
cam shaft.
