2
-52
Apr. 2007
DSC48
417W2A4A
417W2A5A

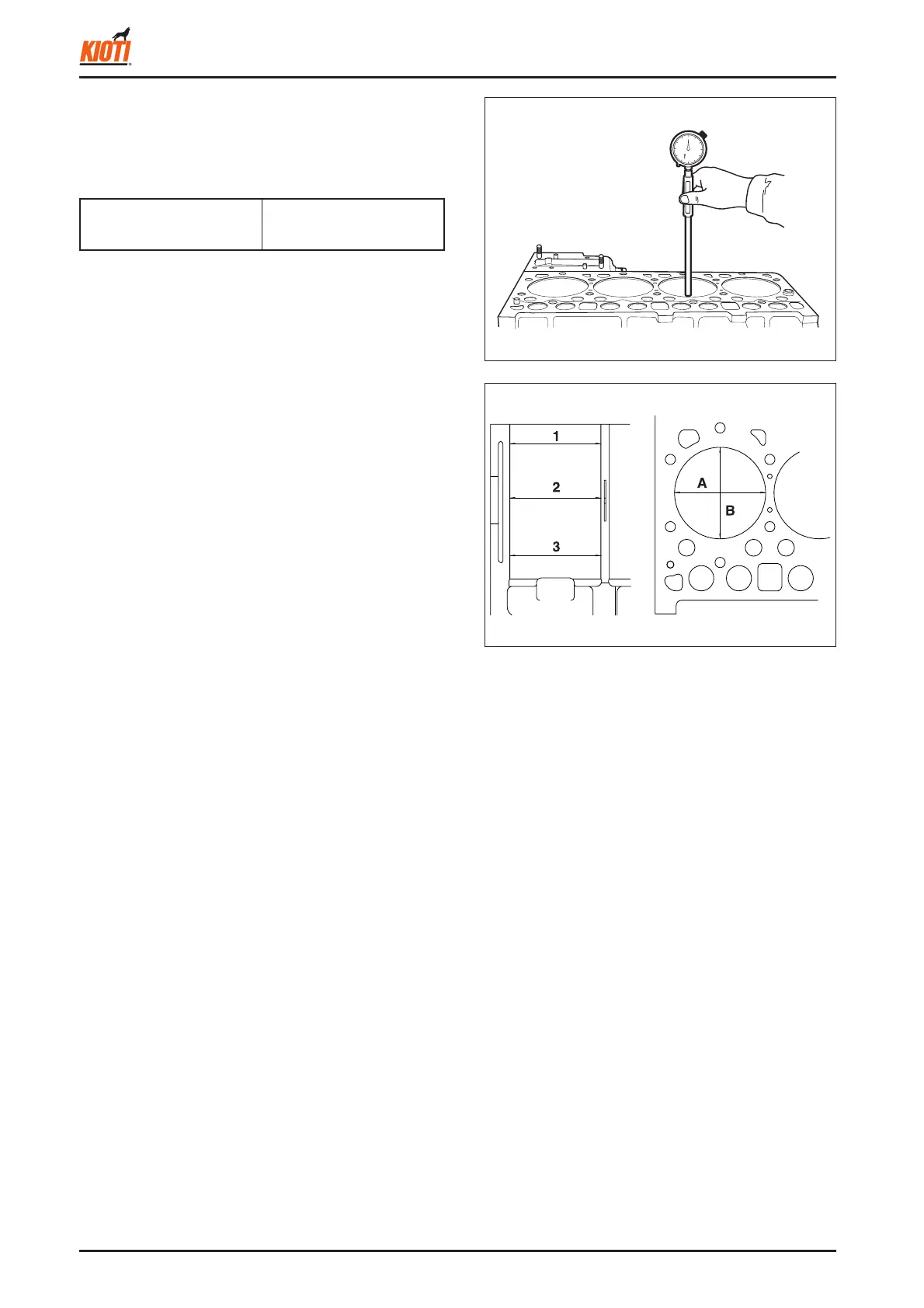

E. CYLINDER BORE
► CYLINDER BORE
1. Measure the cylinder I.D. at six positions shown in the
fi gure to fi nd the maximum wear.
Cylinder I.D. (
φ
87)
0 ± 0.022 mm
0 ± 0.001 in.
