F. CUTTING DISC
1. Remove the shaft support 2 (1) and install the spanner
(26 mm) to the hexagonal shaft of the discharge foil 2 (3).
Unscrew the hex. nut (LH, 2) clockwise.
2. Remove the spring washer 20 (6) from the discharge
foil 2.
<When assembling>
• The protrusion on the spring washer 20 should face the
left side of the hex. nut.
• Make sure to install the discs in correct direction and
order. (Refer to the diagram below)

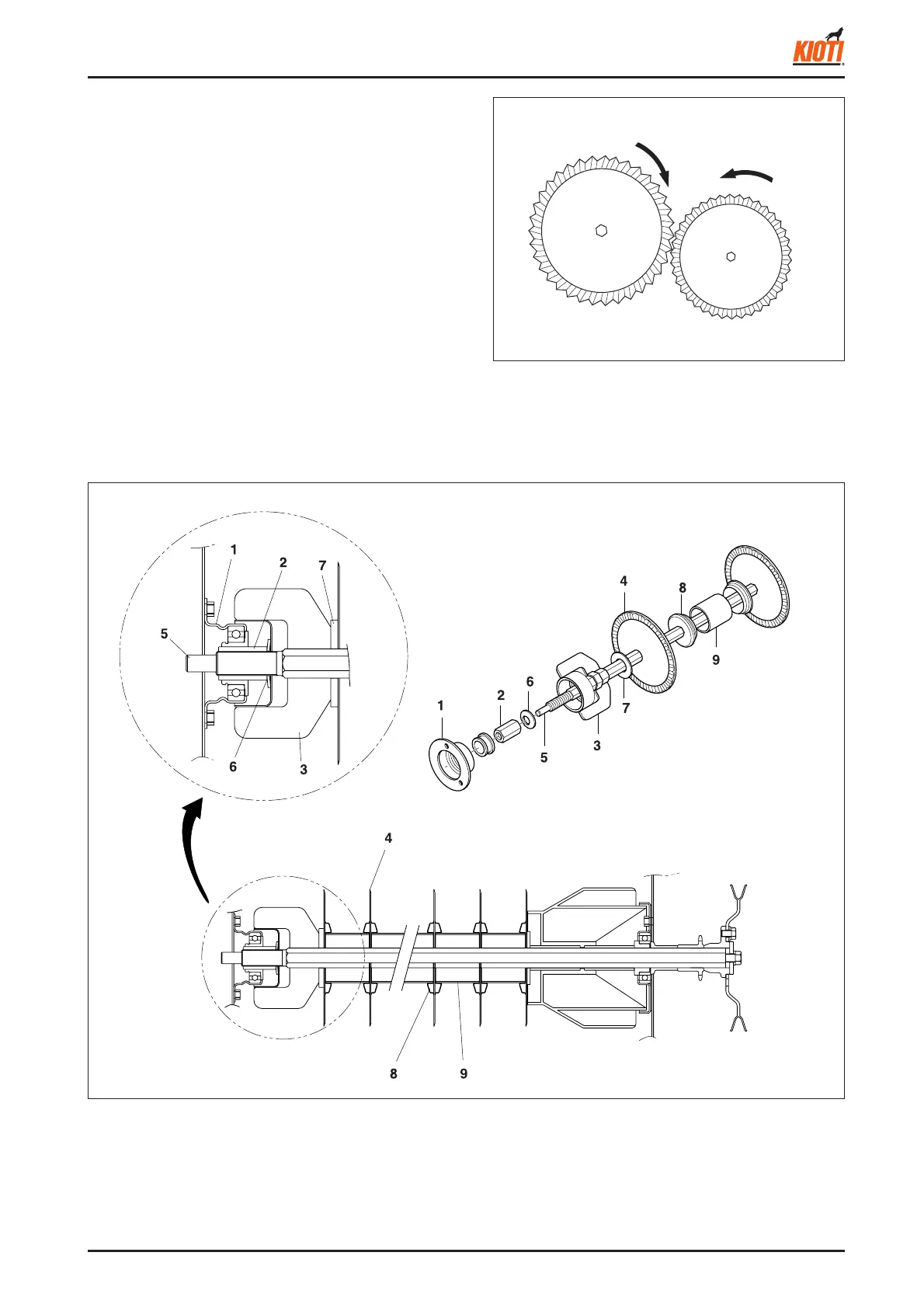

417W481A
(1) Pulling blade
(2) Cutting blade
(A) Rotating direction
(B) Blades should face the rotating direction.
417W482A
(7) Support washer 2
(8) Anti-roll plate
(9) 53.8 pipe
(1) Shaft support 2
(2) Mounting nut (LH)
(3) Discharge foil 2
(4) Cutting disc 170
(5) Cutter shaft
(6) Spring washer 20
