5
-10
Apr. 2007
DSC48
4
3
2
1
L
1

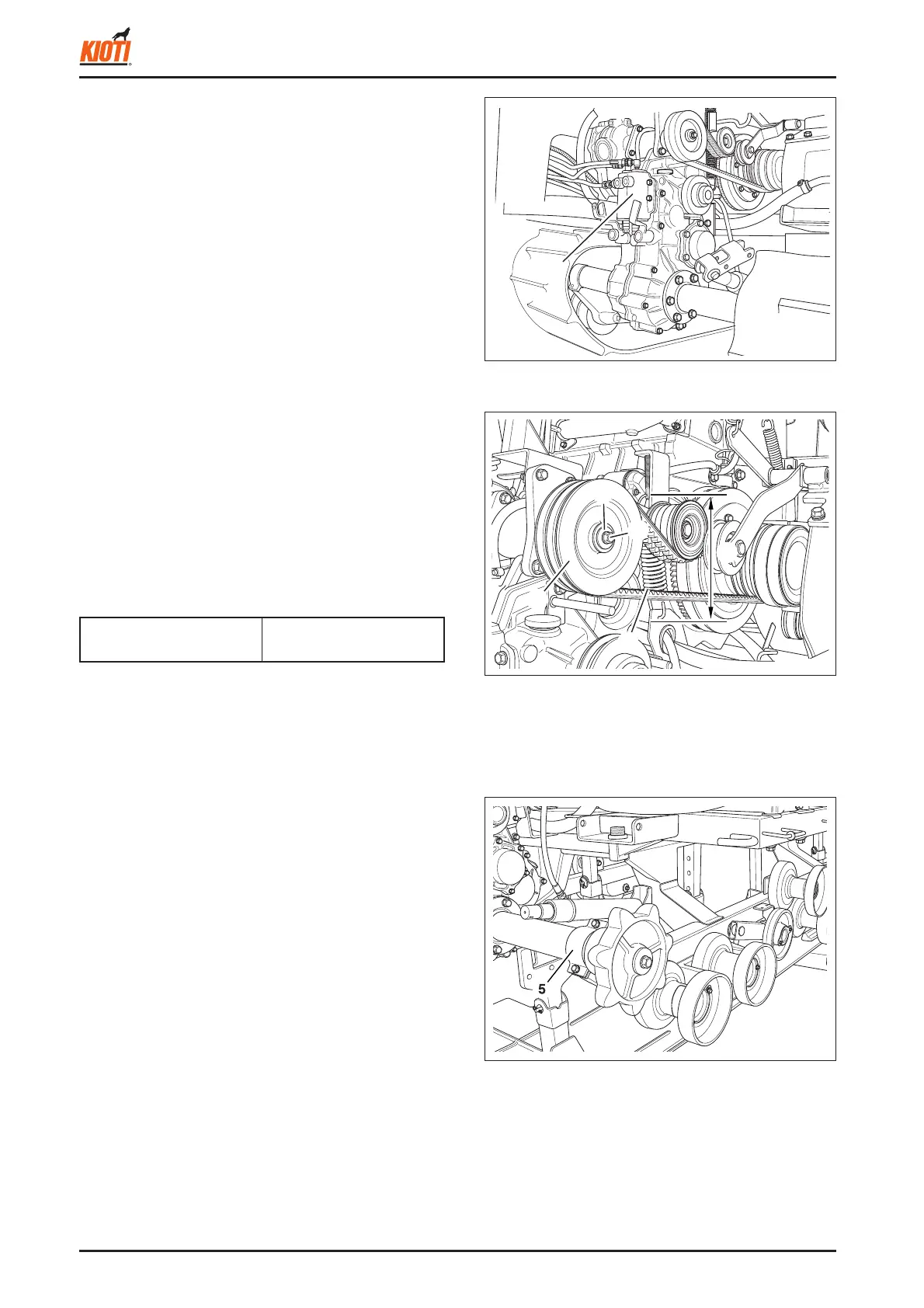

3. Remove the clutch cylinder.
<When assembling>
• Apply LOCTITE to the mounting bolt of the side clutch
cylinder.
417W519A
4. Remove the transmission drive belt (1).
5. Remove the bolt (2) and plain washer (3).
6. Remove the transmission drive pulley (4) (132 pulley).
<When assembling>
• Adjust the belt's tension after installation.
• Check the distance between the center of the spring
holder bolt's hole and the spring's end to adjust the belt
tension.
417W520A
417W521A
7. Remove the axle case holder (5).
<When assembling>
• Apply LOCTITE to the mounting bolts of the axle case
holder.
(1) Transmission drive belt
(2) Bolt
(3) Plain Washer
(4) 132 pulley
(1) Clutch cylinder
(5) Axle case holder
Standard length of spring
(installed)
192 ~ 194 mm
