L. FUEL PIPE
(Check every 150 hours and replace every 2 years)
• Make sure that the fuel pipe is not aged or the hose
clamp is not loose.
K. RADIATOR HOSE AND CONNECTING HOSE
(Check every 200 hours and replace every 2 years)
• Make sure that the hose is not aged or the hose clamp
is not loose.

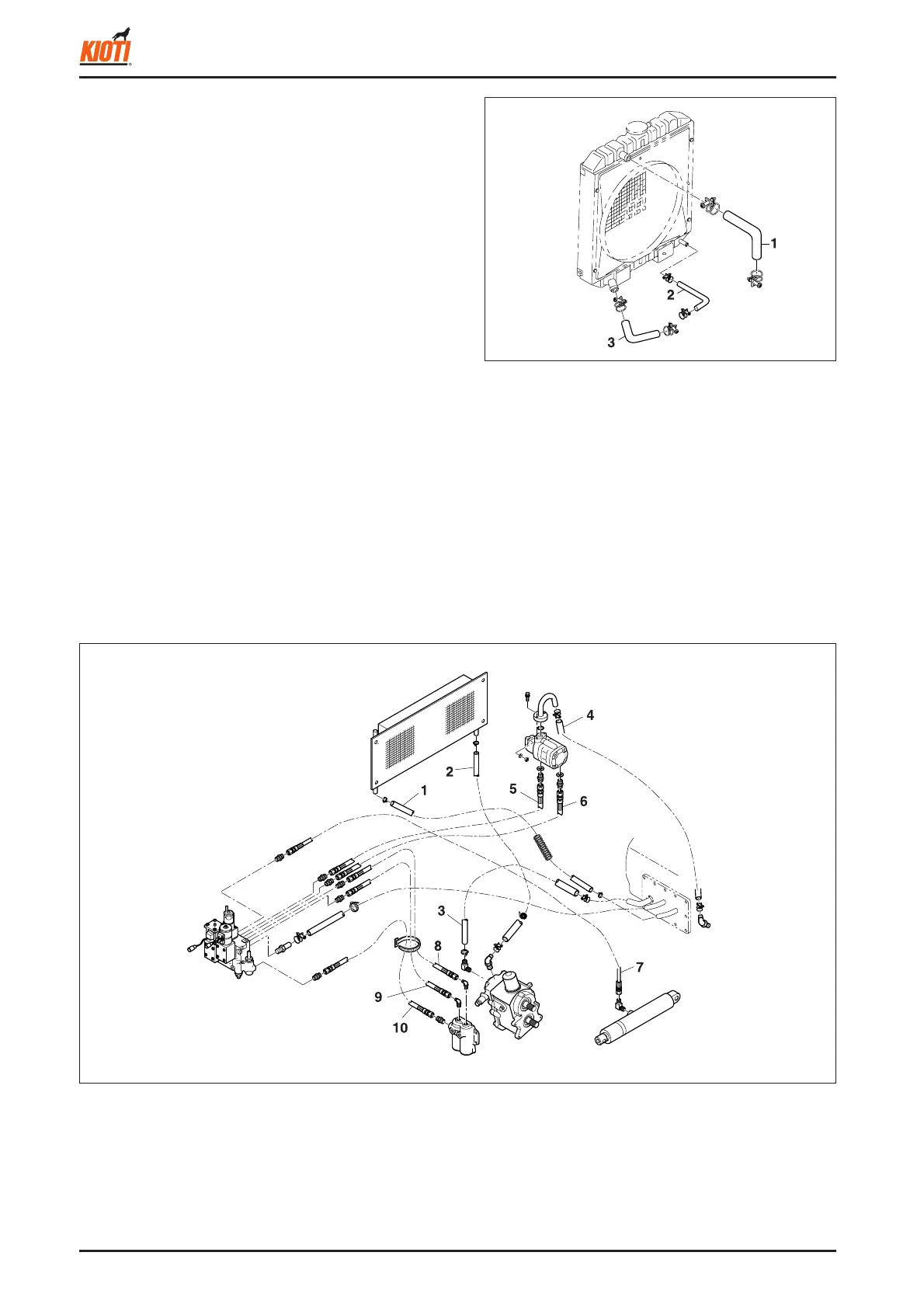

(1) Water pipe 1 (3) Water pipe 3
(2) Water pipe 2
M. HYDRAULIC HOSE
(Check every 200 hours and replace every 500 hours)
• Make sure that the hose is not aged or the hose clamp
is not loose.
417W544A
417W545A
(6) Brake discharge hose
(7) Reaping height control hose
(8) Hose (RH direction)
(9) Hose (LH direction)
(10) Brake hose
(1) HST drain hose 1
(2) HST drain hose 2
(3) HST intake hose
(4) Suction Hose
(5) Reaping height control discharge hose
To Next Page
