Apr. 2007
5
-17
DSC48

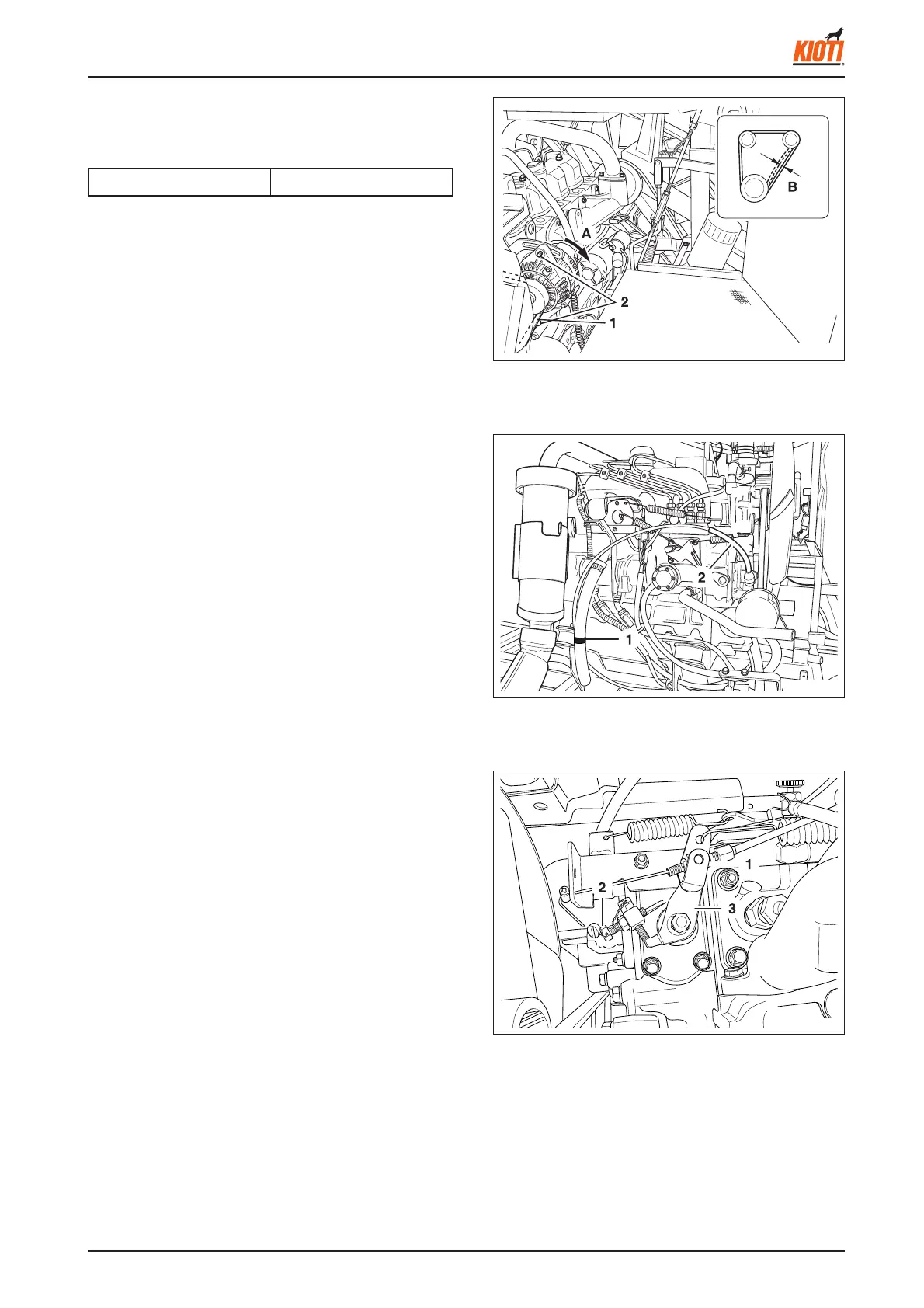

J. ACCELERATOR CABLE
(Check every 100 hours)
1. Adjust the cable so that the speed adjusting lever con-
tacts the speed adjusting bolt (stop screw) when the
accelerator lever is set to the highest speed. Apply
LOCTITE to the nut of the adjusting metal.
417W542A
(1) Adjusting metal (3) Lever
(2) Stop screw
I. HOUR METER CABLE
(Check at every 200 hours, replace at every 800 hours)
1. Clamp the hour meter cable (2) to the suction hose (1).
417W541A
(1) Suction hose
(2) Hour meter cable
H. FAN DRIVE BELT
1. Unscrew the mounting bolts on the alternator and tight-
en the bolts while pulling the alternator.
417W540A
(1) Fan drive belt (2) Bolt
(A) Pull
Defl ection of belt center (B) 7 ~ 9 mm
