1
-24
Apr. 2007
DSC48

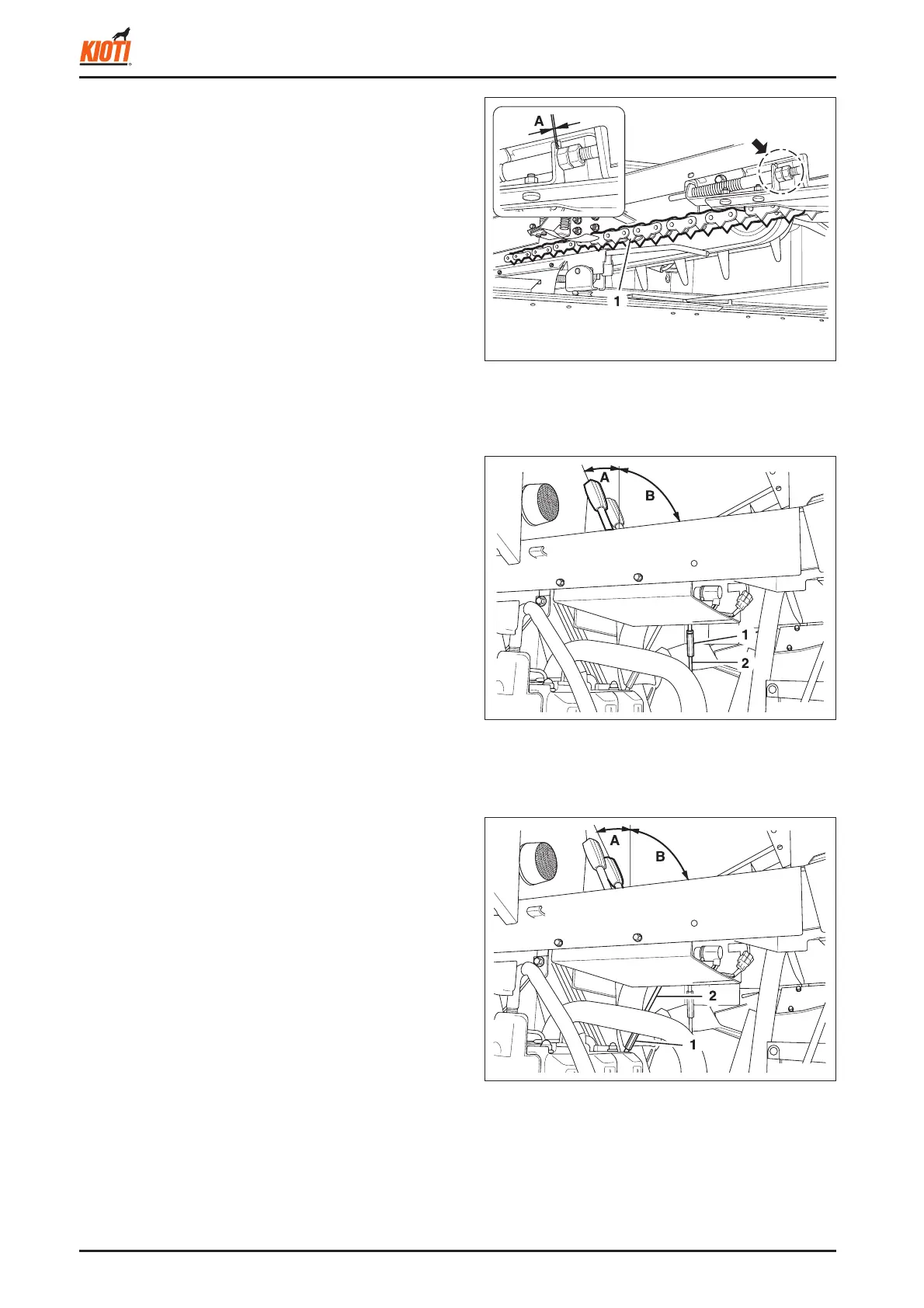

K. ADJUSTING STRAW DISCHARGE CHAIN
(STRAW END SIDE)
• Check and adjustment
Check whether the chain is defl ected or the roller is broken
or worn.
• Replacement
If it is severely worn or damaged or sits on the drive
sprocket
417W160A
(1) Straw discharge chain (straw end side)
(A) Within 0 ~ 1 mm (0 ~ 0.039 in.)
L. ADJUSTING REAPING CLUTCH ROD
Adjust the rod to ensure the reaping clutch lever's correct
movement without deflection to the upright position from
the "Disengage" position.
• The spring length should be 102 mm when the clutch is
in the "Engage" position.
417W161A
(1) Turnbuckle (A) Margin
(2) Reaping clutch rod (B) Operating range (90º)
M. ADJUSTING THRESHING CLUTCH ROD
Adjust the rod to ensure the threshing clutch lever's cor-
rect movement without deflection to the upright position
from the "Disengage" position.
• The spring length should be 143 mm when the clutch is in
the "Engage" position.
417W162A
(1) Turnbuckle (A) Margin
(2) Threshing clutch rod (B) Operating range (90º)
To Next Page
