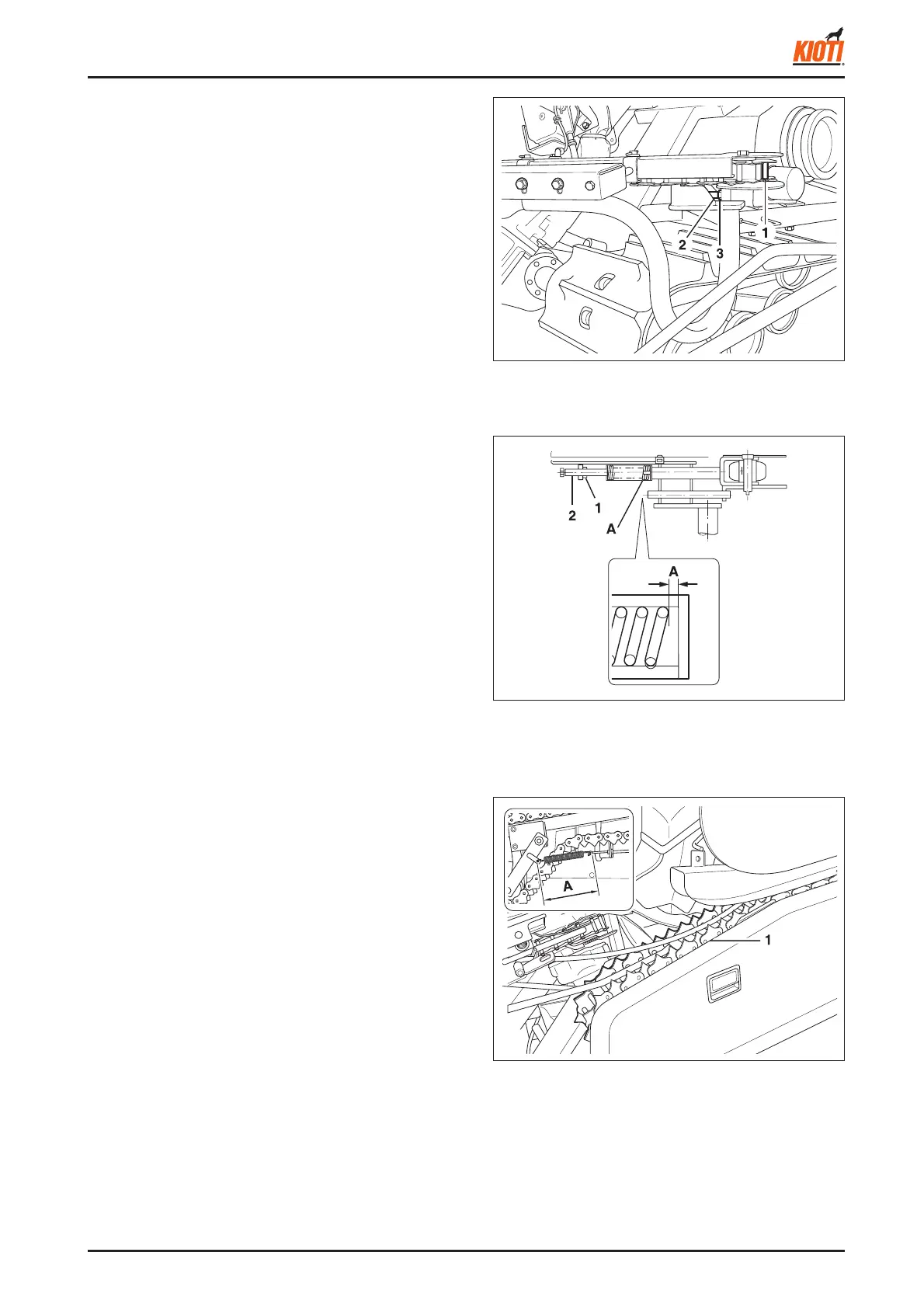

J. ADJUSTING FEEDING CHAIN
• Check and adjustment
Check whether the chain is defl ected or the roller is broken
or worn.
• Replacement
If the chain is severely worn or damaged, sits on the drive
sprocket, or cannot be adjusted by the adjusting bolt
417W159A
(1) Feeding chain (A) 150 ~ 155 mm
(5.906 ~ 6.102 in.)
I. ADJUSTING FEEDING DEPTH CONTROL
CHAIN
• Check and adjustment
Check whether the chain is defl ected or the roller is broken
or worn.
• Replacement
If the chain is severely worn or damaged, sits on the drive
sprocket due to defl ection, or doesn't have enough gap to
adjust
417W157A
(1) Feeding depth control chain
(2) Adjusting nut (3) Mounting nut
417W158A
(1) Mounting nut
(2) Adjusting bolt
(A) Gap: 1 ~ 2 mm
(0.039 ~ 0.079 in.)
