1
-22
Apr. 2007

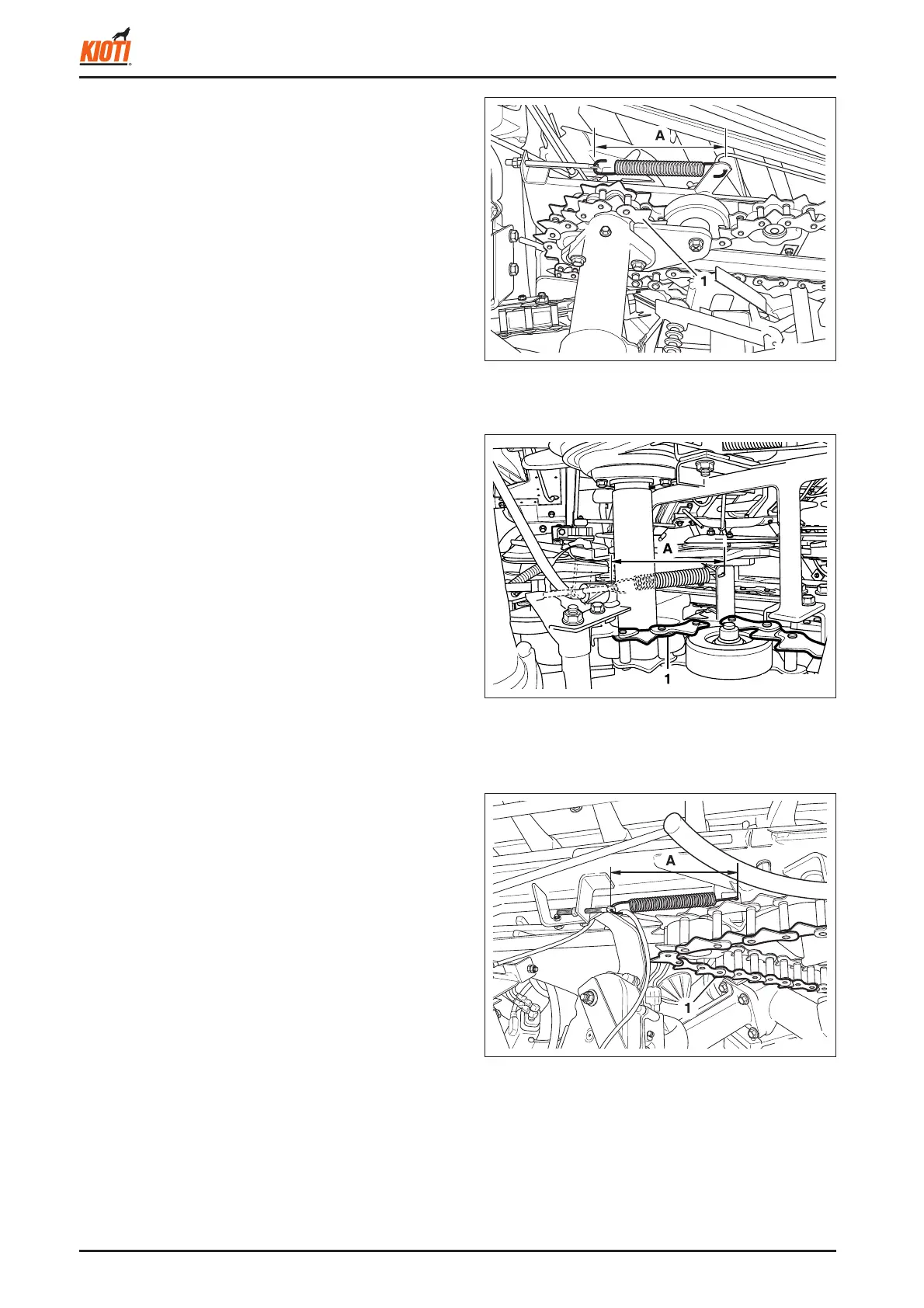

DSC48
417W155A
(1) Stem side chain (LH)
(A) 123 ~ 129 mm (4.843 ~ 5.079 in.)
G. ADJUSTING STEM SIDE CHAINS (LH/RH)
• Check and adjustment
Check whether the chain is stretched or the roller is broken
or worn.
• Replacement
If it is severely damaged or worn, sits on the drive sprocket
due to defl ection, or cannot be corrected with the adjusting
bolt
417W154A
(1) Stem side chain (RH)
(A) 168 ~ 172 mm (6.614 ~ 6.772 in.)
H. ADJUSTING STEM SIDE FEEDING CHAIN
• Check and adjustment
Check whether the chain is defl ected or the roller is broken
or worn. Also, check the chain's distance from the feeding
guide.
• Replacement
If it is severely worn, damaged or impossible to be adjusted
by the adjusting bolt
417W156A
(1) Stem side feeding chain
(A) 163 ~ 167 mm (6.417 ~ 6.575 in.)
