Apr. 2007
1
-31
DSC48

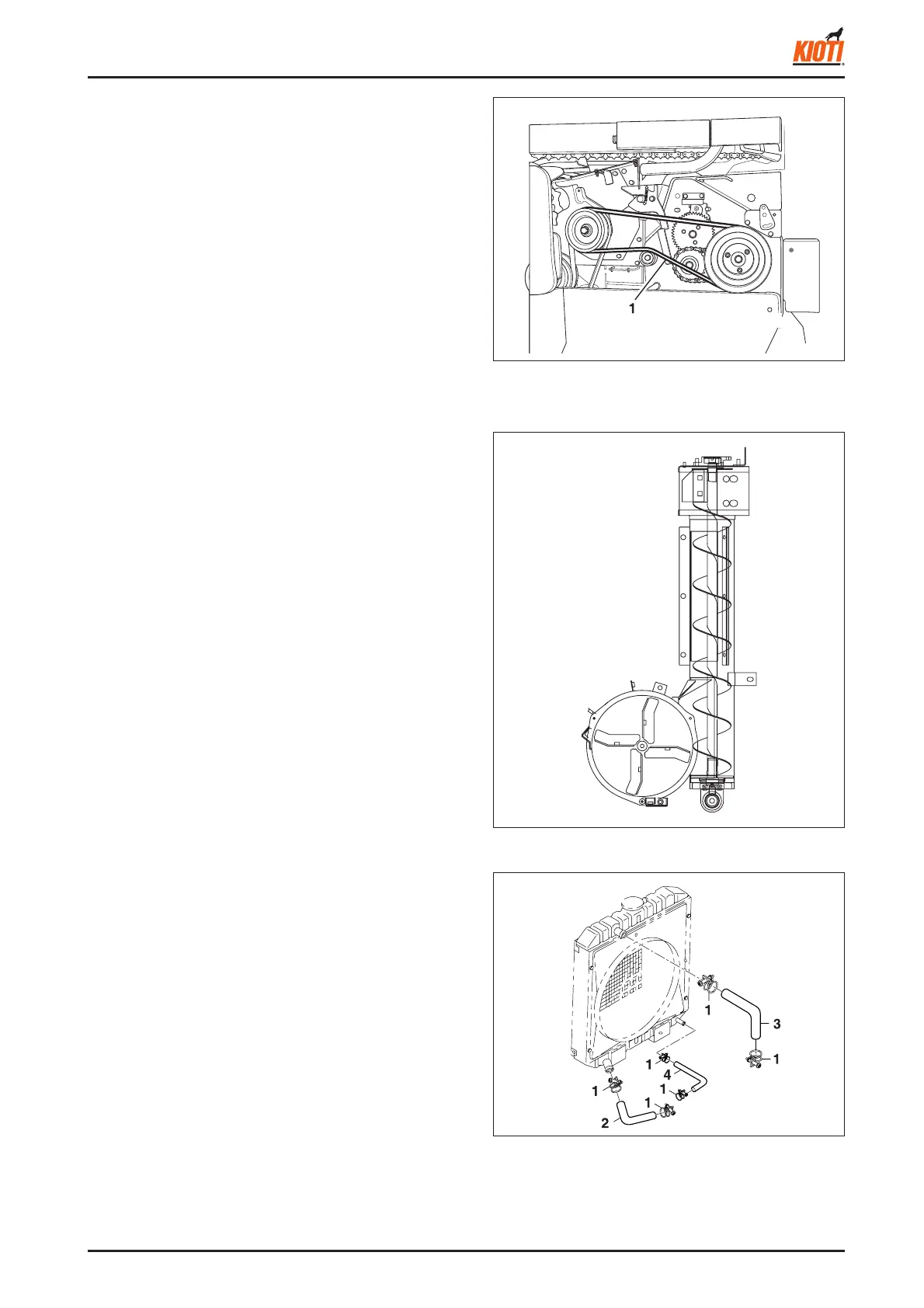

C. REPLACING CUTTER DRIVE BELT
Belt specifi cation: B-55
417W180A
(1) Drive belt
D. CHECKING NO. 2 AUGER BLADE
• Check and adjustment
Check if it is worn and the liner steel plates are at proper
interval.
• Replacement
If the blade edge is worn or tilted
417W181A
E. CHECKING COOLANT PIPE
• Check and adjustment
Check if coolant leaks, due to breaks or damages around
the hose clamp.
• Replacement
If the coolant leaks or is about to leak
417W182A
(1) Clamp (3) Coolant pipe 2
(2) Coolant pipe 1 (4) Drain pipe 3
