doble F6000 - Figure 5.17 Fault Rotated to I3

Fault Rotate
5-20 72A-1589 Rev. C 02/01
D
DD
D
R
RR
R
A
AA
A
F
FF
F
T
TT
T
3
33
3
/
//
/
5
55
5
/
//
/0
00
0
1
11
1
12. Click Fault Rotate to go to the third fault configuration (overcurrent
in I3).
The overcurrent fault rotates to I3 in the source table (Figure 5.17.)

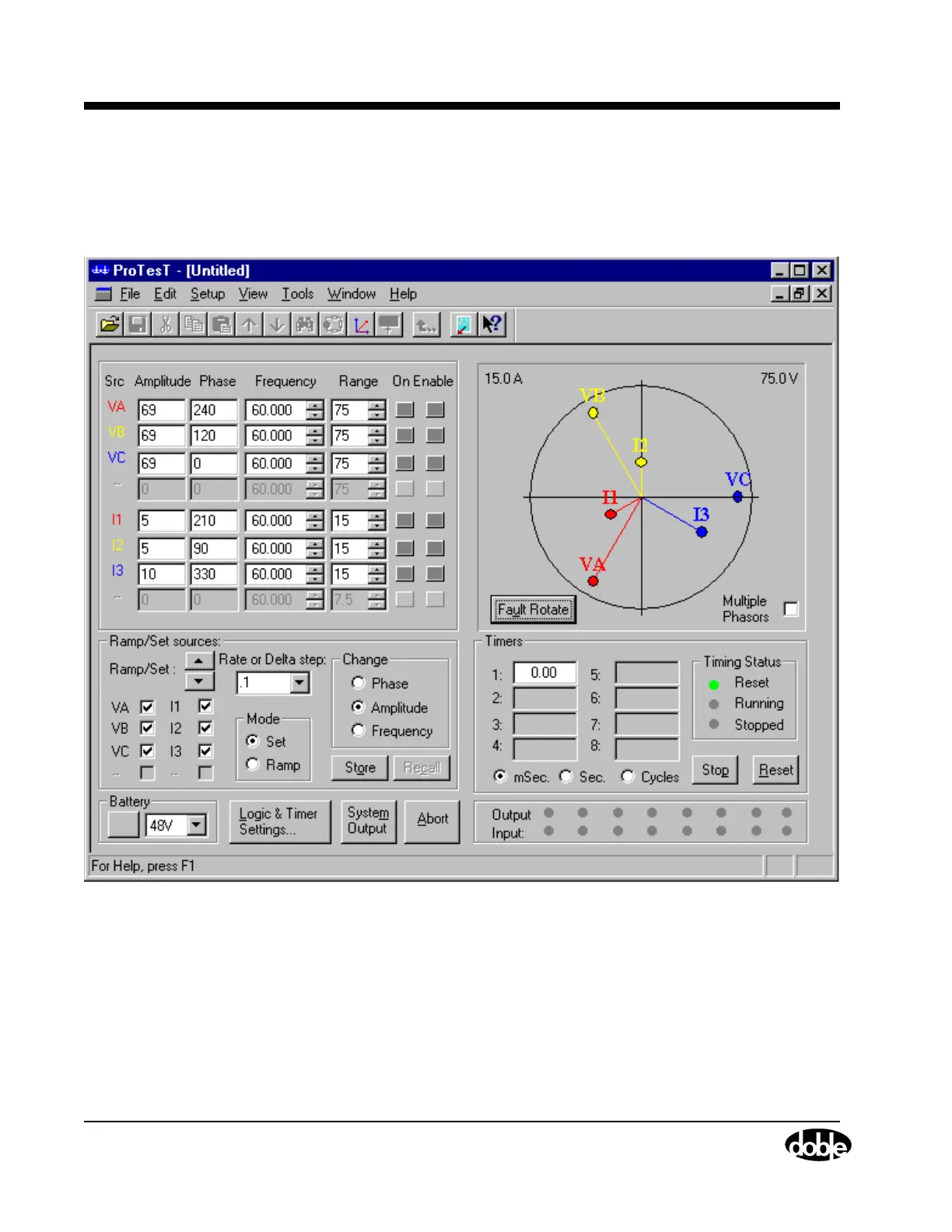

Figure 5.17 Fault Rotated to I3
13. Click System Output to turn the current sources on.
When the relay responds, the indicator light for Input 1 turns red.
14. Click System Output to turn the current sources off.
