Time Test
Next, conduct a time test with the same relay. For this test, the phase
angles for I1, I2, and I3 are 330°, 210°, and 90° respectively. Use a timer
to determine how long the relay takes to close after the current has been
applied.
1. Set the range for current source I1 at 15.
2. Enter 10 for the amplitude of current source I1.
3. Click the radio button for Set mode in the Ramp/Set sources section.
N
OTE
The timers operate only when the sources are in Set mode, not in
Ramp mode.
4. Click the radio button for mSec. in the Timers section.

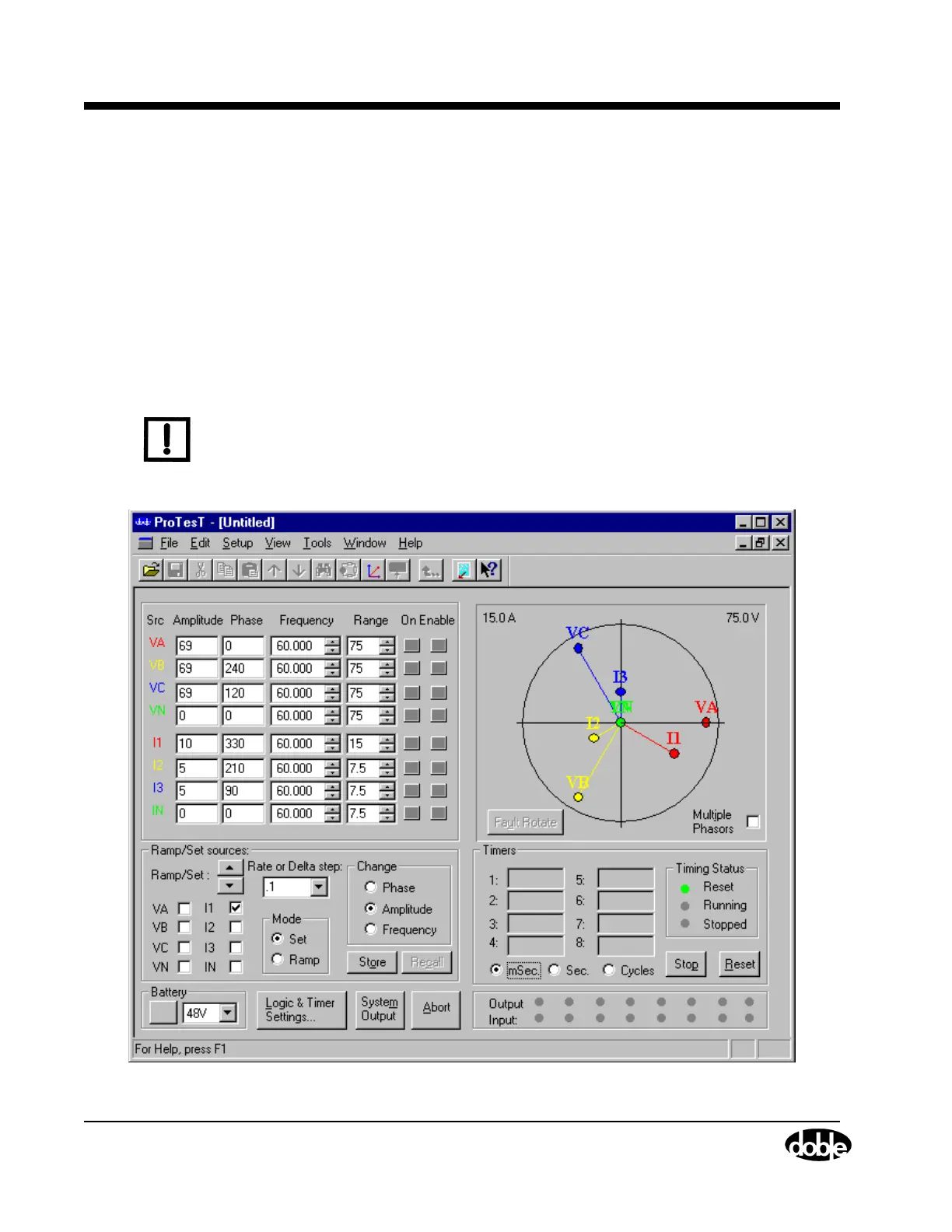

The Control Panel appears as it does in Figure 5.6.
Figure 5.6 Source Table Settings for Time Test
