F6000 Family of Power System Simulators User Guide
72A-1589 Rev. C 02/01 5-25
D
DD
D
R
RR
R
A
AA
A
F
FF
F
T
TT
T
3
33
3
/
//
/
5
55
5
/
//
/0
00
0
1
11
1
Ramp/Set Sources
The Ramp/Set sources section is located below the source table in the
Control Panel (Figure 5.19 on page 5-23).
9. Click the radio button for Ramp mode.
10. Click the radio button for Amplitude.
11. Select .1 for the ramp rate from the Rate or Delta step pick list.
12. Remove the checkmark from VC, I1, I2, and I3.
VA and VB remain active sources.
After completing steps 9 through 12, the Ramp/Set sources section
appears as shown in Figure 5.21.

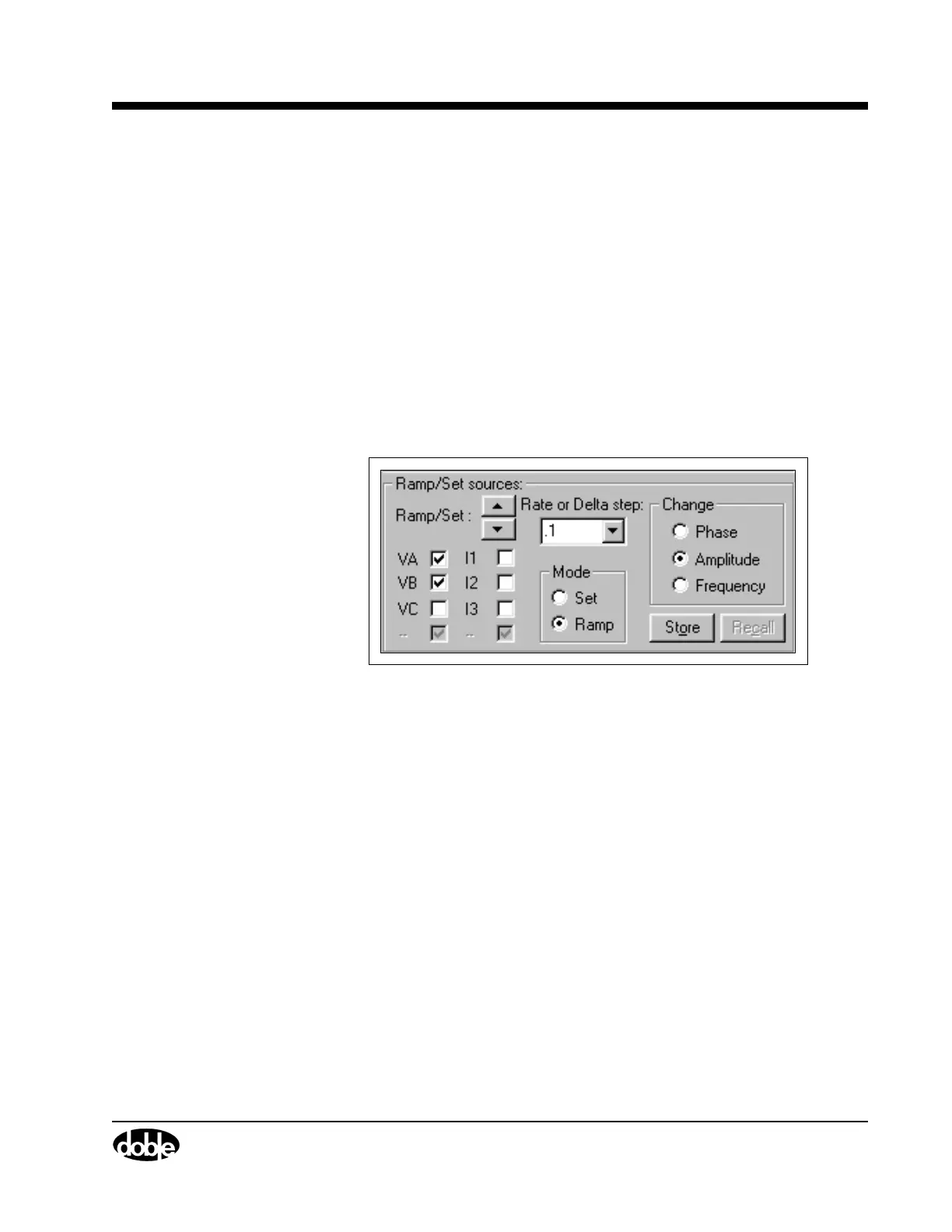

Figure 5.21 Settings in the Ramp/Set Sources Section
