Voltage and Current Sources
Figure 2.2 shows the voltage and current sources on the instrument
front panel. The F6150 provides three 150 VA voltage sources, which
can be optionally converted into current sources to provide low range
current testing. It also provides three 150 VA current sources, which can
be combined to achieve more power. Two 150 VA current sources can be
combined to form a 300 VA source. Three 150 VA current sources can be
combined to form a 450 VA source.
For source selection rules and examples of different test setups, see
Appendix C ”Source Configurations”.
N
OTE
Low current convertible sources and current sources must not be
paralleled. See ”Rules for Source Selection” on page C-2.

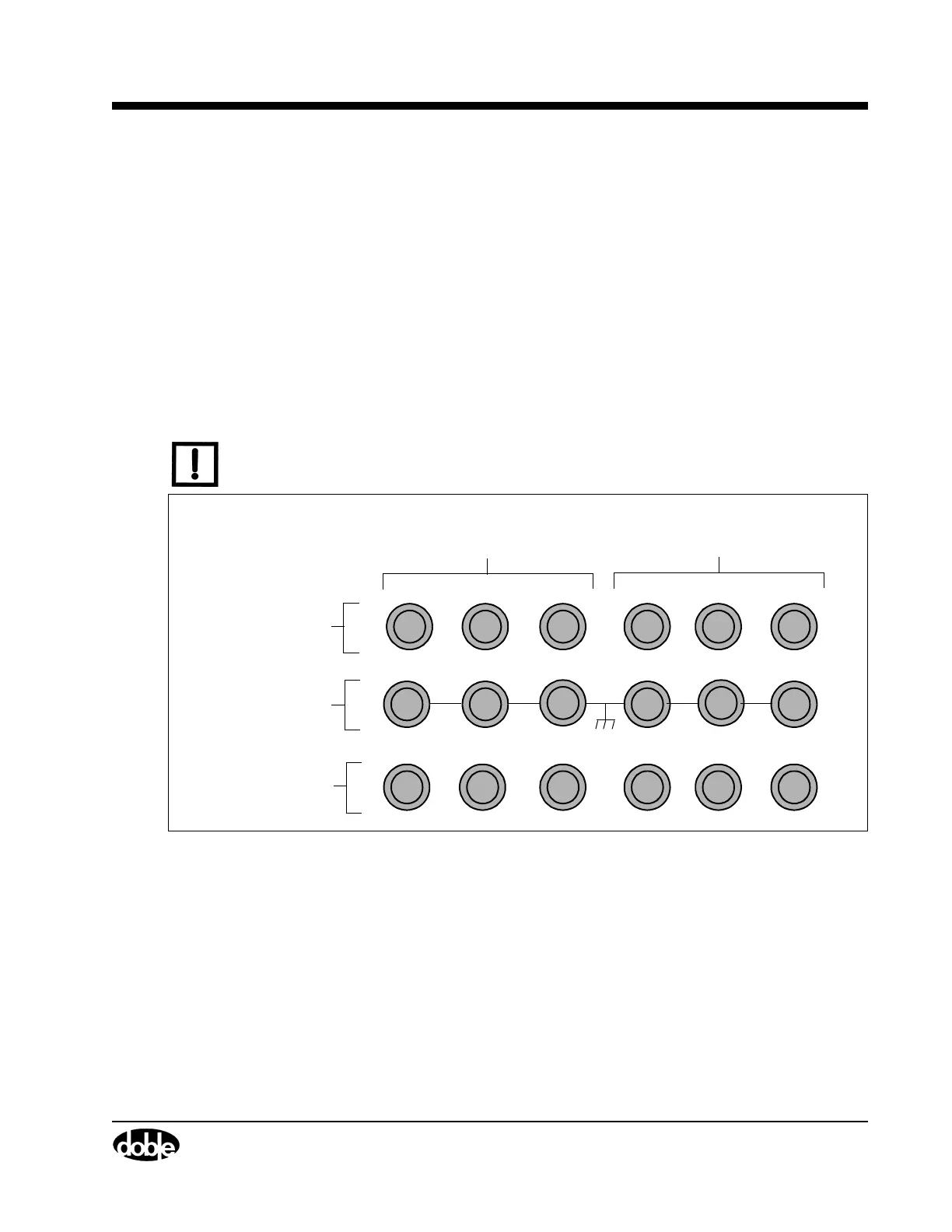

Figure 2.2 F6000 Instrument Front Panel Source Outputs
Convertible Sources
(Voltage or Low Current) Current Sources
150 VA Sources
75 VA Sources
Terminals for
Return Lines
(Red)
(Black)
(Red)
