Phase Shift Testing
F-16 72A-1589 Rev. C 02/01
D
DD
D
R
RR
R
A
AA
A
F
FF
F
T
TT
T
3
33
3
/
//
/
5
55
5
/
//
/0
00
0
1
11
1
Phase Shift Testing
75 VA (Right Bank) High Current Sources at 50 or 60 Hz
To perform the Phase Shift test on a 75 VA High Current source at 50 or
60 Hz:
1. Configure the F6000 for six currents (right bank) using the Pre-set
Configurations on the F6000 Configuration display in ProTesT.
2. Set all six ranges to 7.5 A and all amplitudes to 5 A.
3. Set all six phase angles to 0
°
.
4. Connect source I1 to the reference input of the phase meter.
5. Connect source I2 to the signal input of the phase meter.
6. Turn both sources ON.
7. Verify that the phase angle is within ± 0.25
°
.
8. Turn OFF the signal source.
9. Repeat steps 5 through 8 for sources I3, IR, IS, and IT as signal
sources.

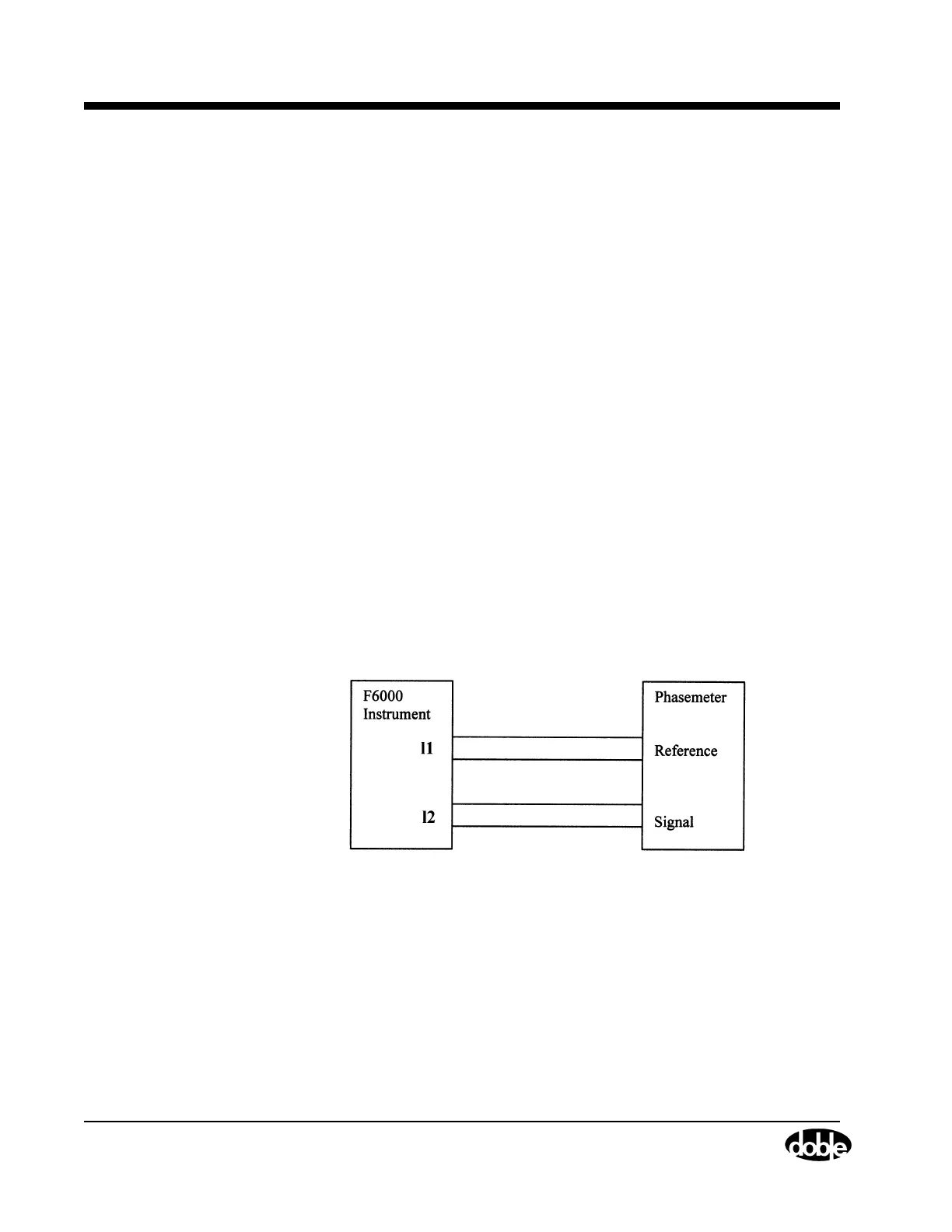

Figure F.11 shows a typical setup for phase testing six Current Sources.
The phase meter shown is an Arbiter model 931 A.
Figure F.11 Test Setup for Phase Testing Six Current Sources
