doble F6000 - Figure 7.12 Removal of the Power Supply and Voltage Amplifiers

Battery Simulator
7-20 72A-1589 Rev. C 02/01
D
DD
D
R
RR
R
A
AA
A
F
FF
F
T
TT
T
3
33
3
/
//
/
5
55
5
/
//
/0
00
0
1
11
1
7. Remove the voltage amplifiers from slots 8, 9, and 10 (Figure 7.12).

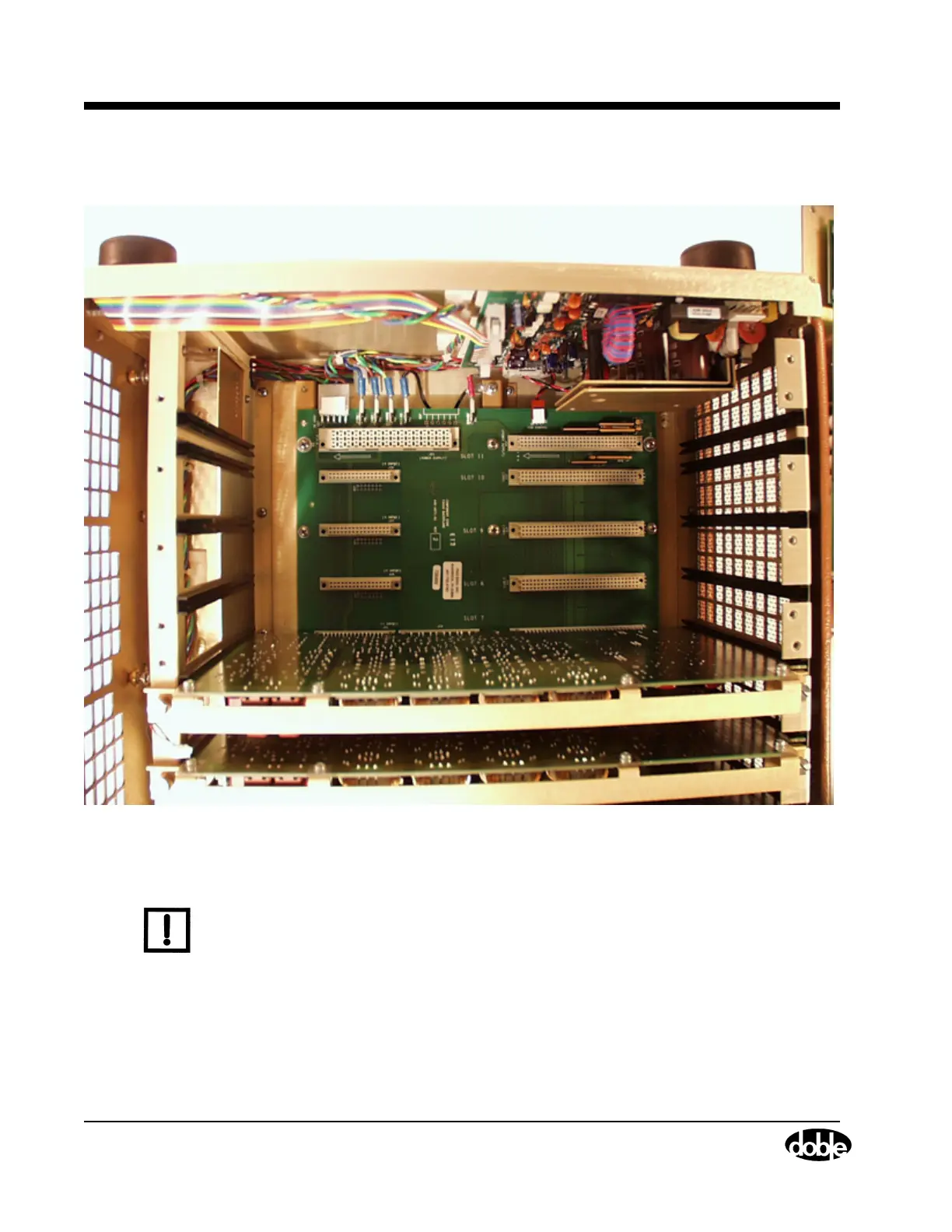

Figure 7.12 Removal of the Power Supply and Voltage Amplifiers
for Access to the Battery Simulator
N
OTE
The power supply is easily identifiable, but each voltage amplifier looks
the same. Label each voltage amplifier with its slot number when it is
removed from the instrument, and return it to its own slot when the
instrument is reassembled. The instrument will not be properly
calibrated if an amplifier is not returned to its original slot.
Use PIC00005a.tif on page 16.
