10. Ty pe ping after the prompt, followed by a space and the IP address of
the F6150.
• If the Ethernet connection is working, four replies from the F6150

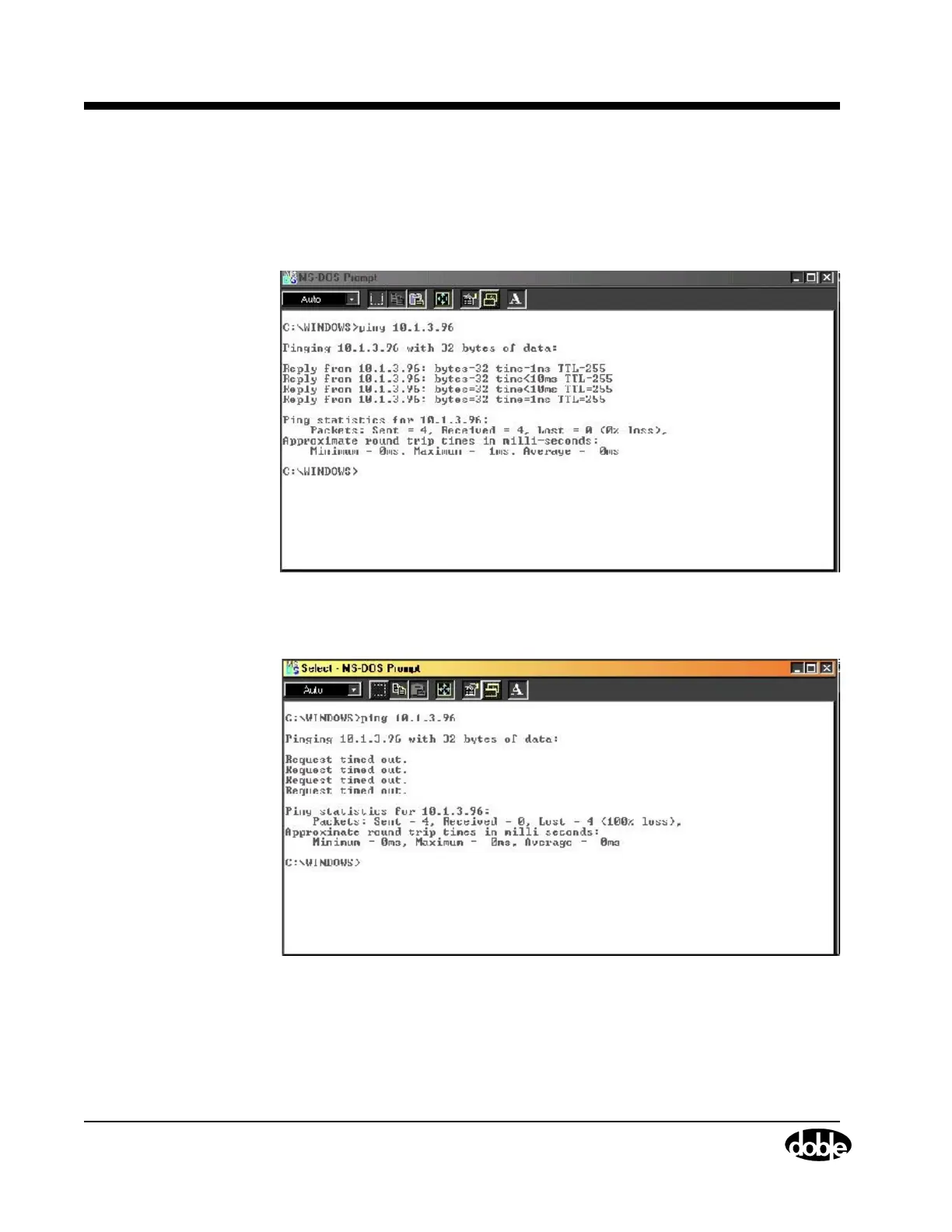

appear (Figure B.5).
Figure B.5 Successful Ping
• If the connection is not good, four time outs appear (Figure B.6).
Figure B.6 Unsuccessful Ping
• If the ping is unsuccessful, check the network connections,
terminators, connecting cable, and network properties. Then try
again.
