F6000 Family of Power System Simulators User Guide
72A-1589 Rev. C 02/01 F-13
D
DD
D
R
RR
R
A
AA
A
F
FF
F
T
TT
T
3
33
3
/
//
/
5
55
5
/
//
/0
00
0
1
11
1

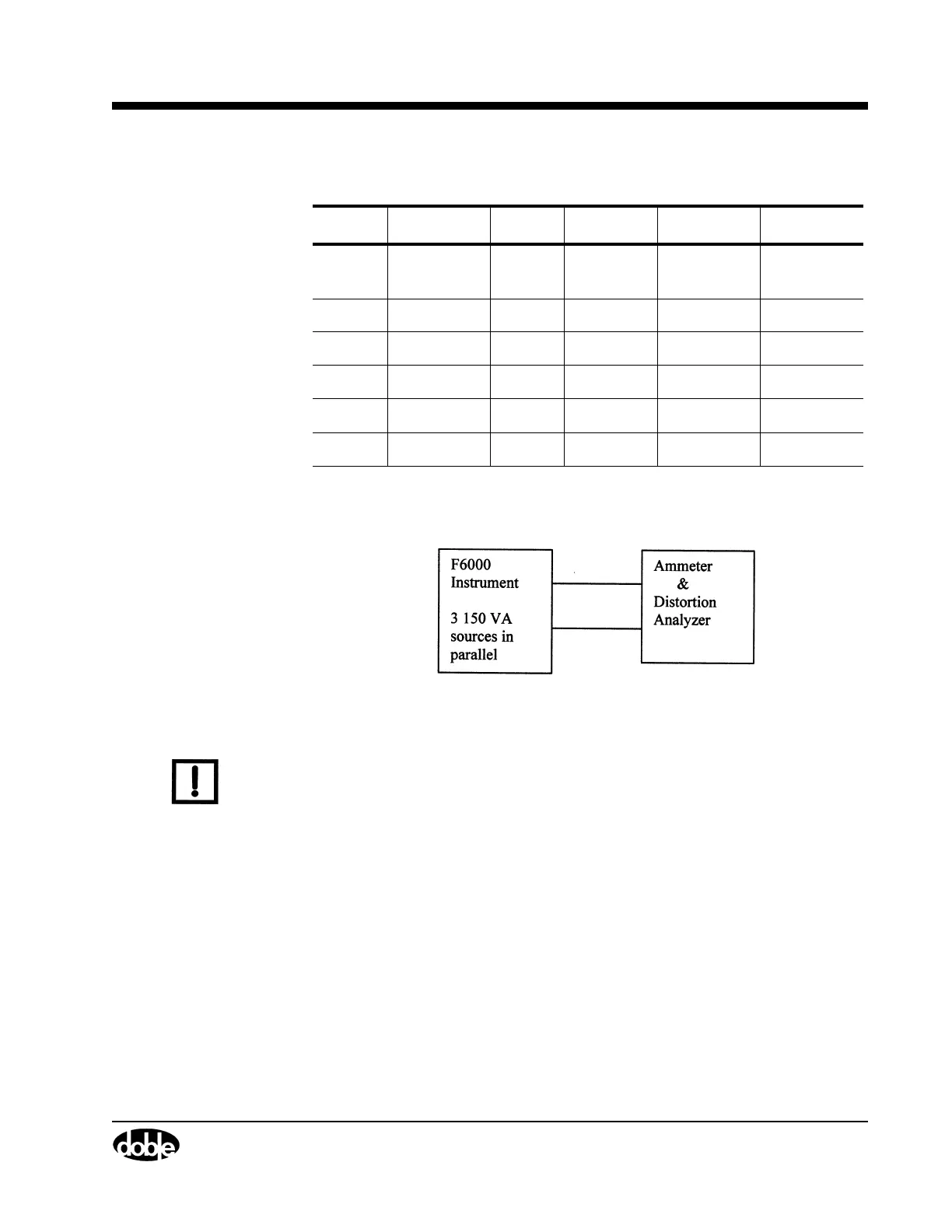

Figure F.8 shows
a typical setup for 450 VA (right bank) Convertible Low
Current Source measurement.
Figure F.8 450 VA Convertible Low Current Source Measurement
N
OTE
The ammeter and THD Analyzer are functions of the Arbiter 931A.
75 VA Convertible Voltage Source
To perform the Amplitude and Distortion check on a 75 VA Convertible
Voltage source:
1. Configure the F6000 for six voltages using the Pre-set Configurations
on the F6000 Configuration display in ProTesT.
2. Set the range to 75 V and amplitude to 75 V, connect the test
instruments as shown across Source VA and turn the source ON.
Verify that the amplitude is within limits and that the total harmonic
distortion (THD) is <2%.
Table F.9 450 VA Convertible Low Current Source Specification
Range Max. Load Value Minimum Maximum Max. THD
1.5 A Ammeter /
Shunt
1.5 A 1.491 A 1.509 A 2%
0.15 A 0.1491 A 0.1509 A 2%
3 A 3.0 A 2.982 A 3.018 A 2%
0.3 A 0.2982 A 0.3018 A 2%
6 A 6.0 A 5.964 A 6.036 A 2%
0.6 A 0.5964 A 0.6036 A 2%
