3. Change the amplitude as shown in Table F.5.
Verify that the amplitude and distortion are within the limits.
4. Repeat step 3 for the 90 A range.
N
OTE
The load including wire and connections must not exceed the Max.
Load in Table F.5.
Table F.5 lists the specifications for the 450 VA High Current Source
measurements. Minimum and maximum amplitudes are given in
amperes. When using a 4-terminal shunt, convert the values to the
appropriate voltages.

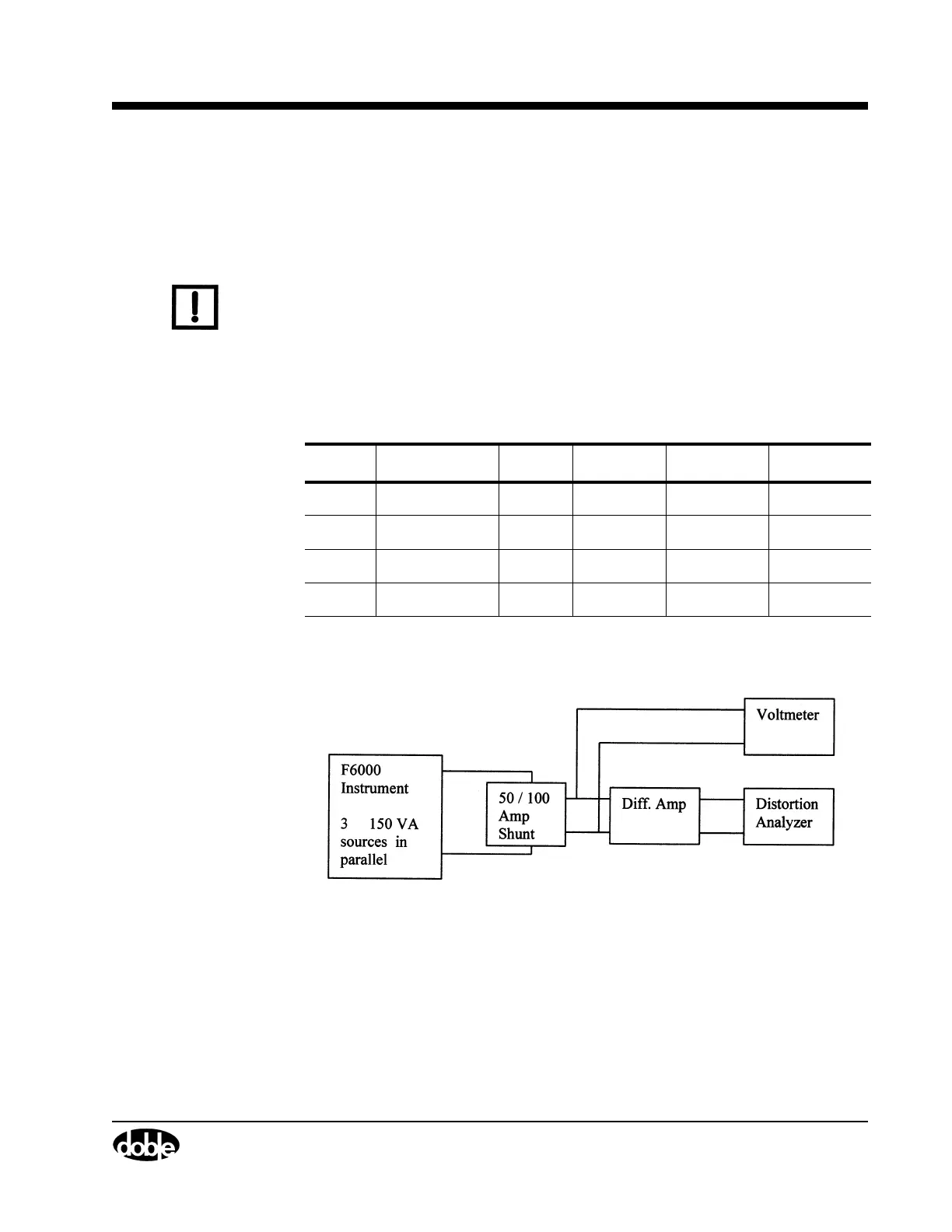

Figure F.4 shows a typical setup for 450 VA (right bank) High Current and
Distortion measurements.
Figure F.4 450 VA High Current Source Measurement
Table F.5 450 VA High Current Source Specification
Range Max. Load Value Minimum Maximum Max. THD
7.5 A 8 Ohm 7.5 A 7.48 A 7.523 A 2%
0.75 A 0.748 A 0.7523 A 2%
90 A 0.0555 Ohm 90.0 A 59.82 A 60.18 A 2%
9.0 A 5.982 A 6.018 A 2%
