3. Change the amplitude as shown in Table F.10.
Verify that the amplitude and distortion are within the limits.
4. Repeat step 3 for the 150 V range.
5. Repeat steps 2, 3, and 4 for Source VB, VC, VR, VS, and VT.
Table F.10 lists the specifications for the 75 VA Convertible Voltage
Source measurements.
Figure F.9 shows
a typical setup for the 75 VA Convertible Voltage Source
measurements.

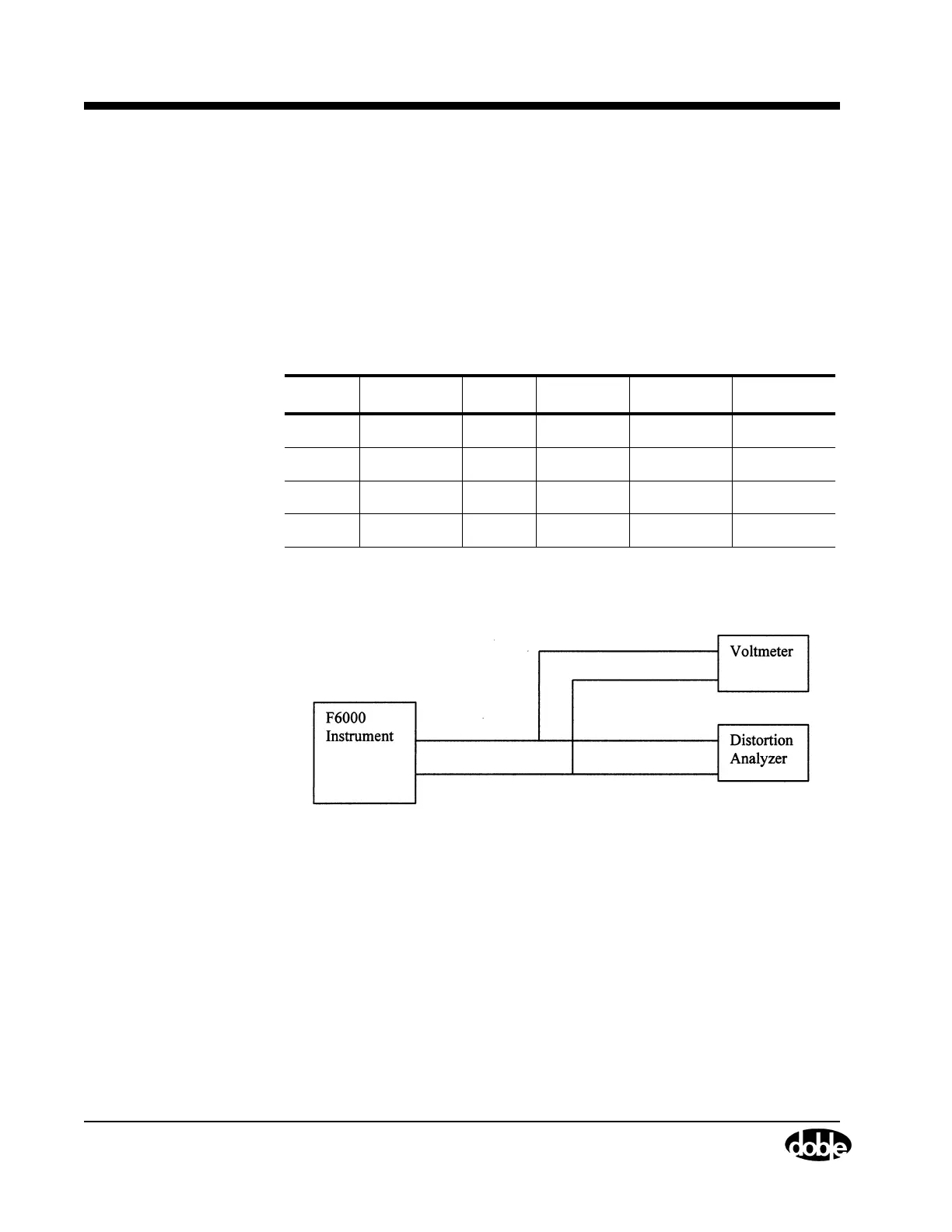

Figure F.9 75 VA Convertible Voltage Source Measurement
150 VA Convertible Voltage Source
To perform the Amplitude and Distortion check on a 150 VA Convertible
Voltage source:
1. Configure the F6000 for three 150 VA voltages by clicking User
Defined on the F6000 Configuration display in ProTesT.
• Set the number of Voltage Sources to 3.
• Set the number of Current Sources to 0.
Table F.10 75 VA Convertible Voltage Source Specifications
Range Max. Load Value Minimum Maximum Max. THD
75 V Open 75 V 74.8 V 75.2 V 2%
7.5 V 7.48 V 7.52 V 2%
150 V 150 V 149.6 V 150.5 V 2%
15 V 14.96 V 15.05 V 2%
