10. Click Set... for Trigger 1 (Figure 5.9).

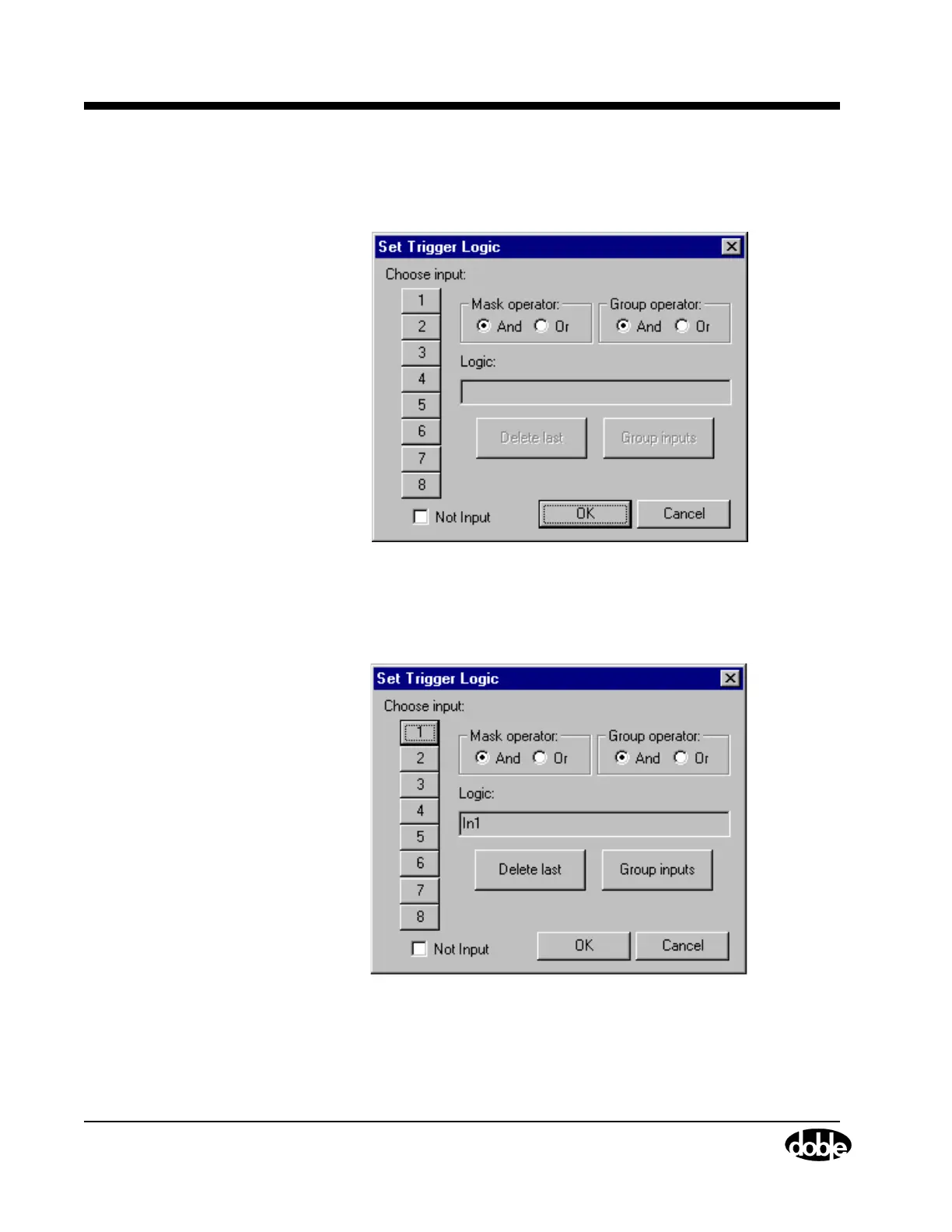

The Set Trigger Logic display appears (Figure 5.10).
Figure 5.10 Set Trigger Logic
11. Click 1 under Choose input.
In1 appears in the Logic field (Figure 5.11).
Figure 5.11 Trigger Logic Set for Input 1
12. Click OK to close the Set Trigger Logic display.
