300 VA Convertible Low Current Source
F-10 72A-1589 Rev. C 02/01
D
DD
D
R
RR
R
A
AA
A
F
FF
F
T
TT
T
3
33
3
/
//
/
5
55
5
/
//
/0
00
0
1
11
1

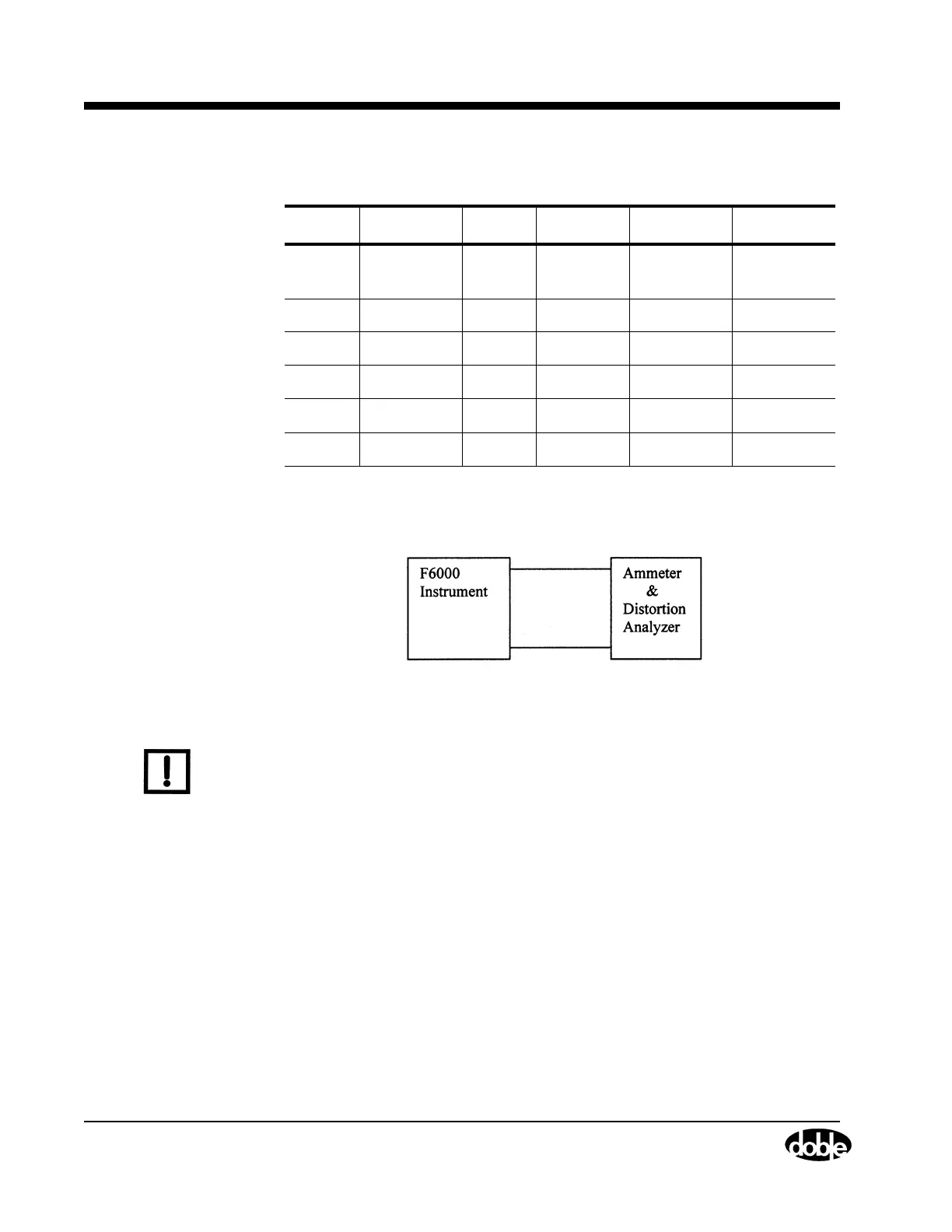

Figure F.6 shows
a typical setup for 150 VA Convertible Low Current and
Distortion measurements.
Figure F.6 150 VA Convertible Low Current Source Measurement
N
OTE
The ammeter and THD Analyzer are functions of the Arbiter 931A.
300 VA Convertible Low Current Source
To perform the Amplitude and Distortion check on a 300 VA Convertible
Low Current source:
1. Configure the F6000 for one Low Current 300 VA source by clicking
User Defined on the F6000 Configuration display in ProTesT.
• Set the number of Current Sources to 0.
• Set the number of Convertible V/I Sources to 2.
• Set the Convertible V/I Source designations to I1 and I1 (two
sources with the same name).
Table F.7 150 VA Convertible Low Current Specification
Range Max. Load Value Minimum Maximum Max. THD
0.5 A Ammeter /
Shunt
0.5 A 0.497 A 0.503 A 2%
0.05 A 0.0497 A 0.0503 A 2%
1 A 1.0 A 0.994 A 1.006 A 2%
0.1 A 0.0994 A 0.1006 A 2%
2 A 2.0 A 1.988 A 2.012 A 2%
0.2 A 0.1988 A 0.2012 A 2%
To Next Page
