The F6150 voltage sources are optionally convertible and may be
configured as either voltage or current sources. A convertible source,
when used in current mode, provides a low range current at a high
compliance voltage. The current ranges for 150 VA sources are 0.5 A,
1.0 A and 2.0 A, at a compliance voltage of 300 V, 150 V, and 75 V AC,
respectively (Table 2.1).
WARNING The high intensity yellow LED flashes when the battery simulator or any
output source is on or enabled to indicate the potential for dangerous or
fatal voltages.
The F6150 supplies three convertible voltage/current and three current
sources. Each source is rated at 150 VA of continuous power (Figure 2.3).

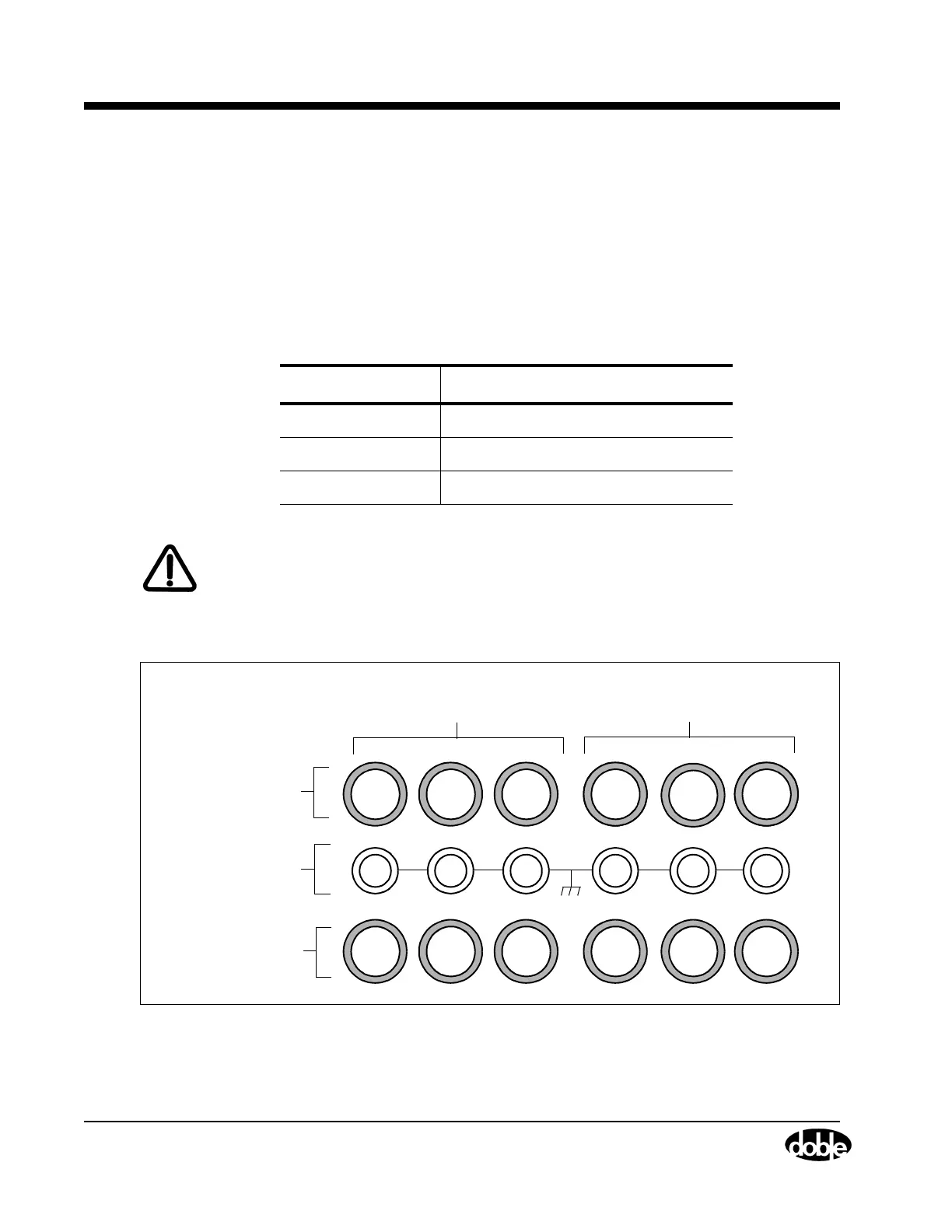

Figure 2.3 Six 150 VA Sources
Table 2.1 150 VA Convertible Sources Configured to
Supply Low Current at a High Compliance Voltage
Current Compliance Voltage
0.5 A 300 V
1.0 A 150 V
2.0 A 75 V
Convertible Sources
(Voltage or Low Current) Current Sources
Volts or
Amps
150 VA
Volts or
Amps
150 VA
Volts or
Amps
150 VA
Volts or
Amps
150 VA
Volts or
Amps
150 VA
Amps
150 VA
Amps
150 VA
Amps
150 VA
