F6000 Family of Power System Simulators User Guide
72A-1589 Rev. C 02/01 7-7
D
DD
D
R
RR
R
A
AA
A
F
FF
F
T
TT
T
3
33
3
/
//
/
5
55
5
/
//
/0
00
0
1
11
1

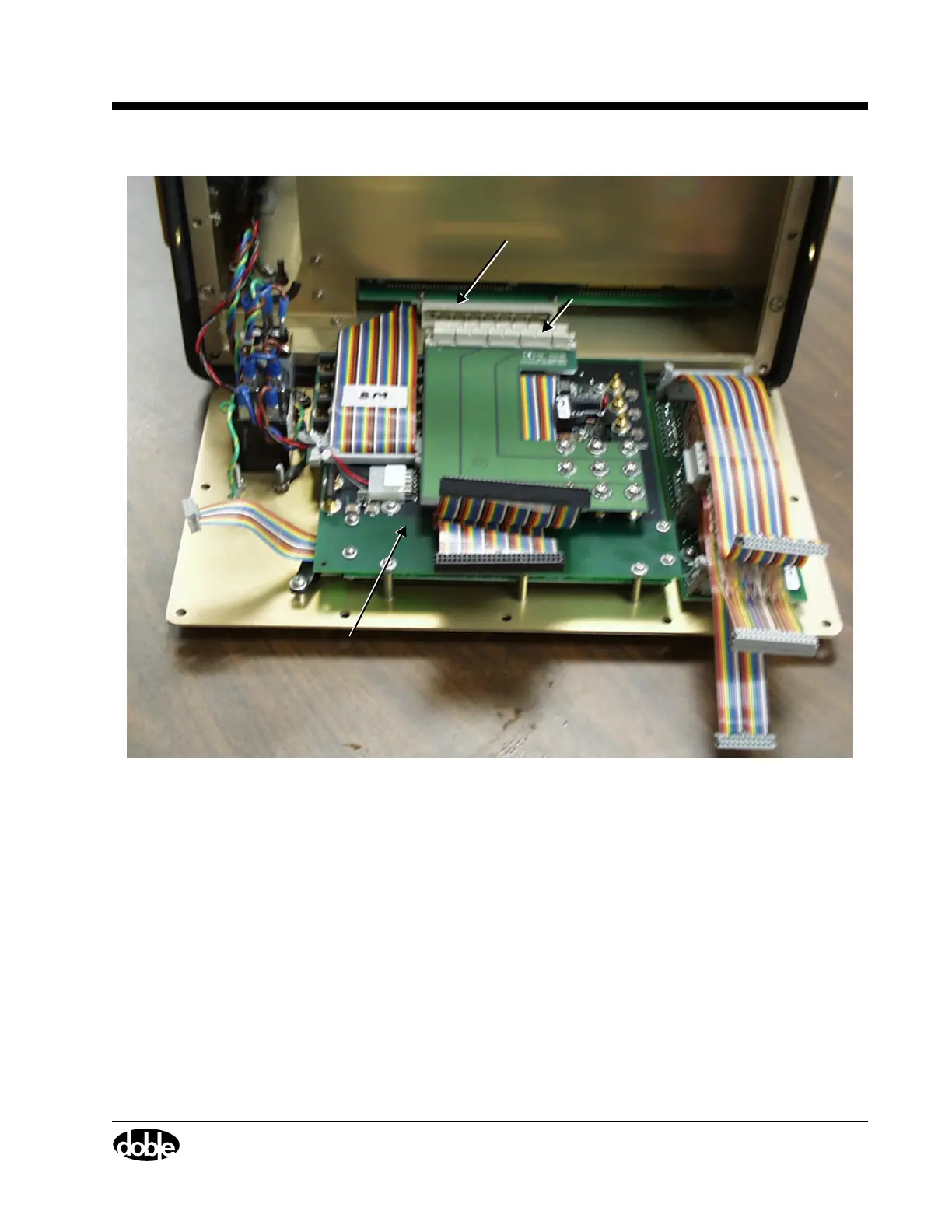

Figure 7.5 Front Panel Lying Face Down in Front of the Instrument
7. Disconnect wires W8 and W18 from the Output Terminal board.
8. Disconnect wires W2, W6, and W7 from the communications board
and set them aside for use with the new front panel (Figure 7.6 on
page 7-8).
High Current Interface
on the Motherboard
High Current Interface
Output Terminal Board
To Next Page
