System components
file:///D|/Manuales/Para%20recolocar/MOTOS/DUCATI/DUCATI/M796/wsm/EN/M796_ABS_11_6_12.35.1.html[11/12/2015 18:40:26]
Temperature sensor
This sensor is powered by the ECU and provides information regarding the temperature of the aspirated air.
The electronic signals thus obtained are transmitted to the ECU, where they are used to make corrections in accordance
with the temperature reading.
Note
To test the operation of the injector, use the DDS diagnosis instrument and follow the instructions given in the paragraph
“
Guided diagnosis” (Sect. 6 - 13).
Removing the air temperature sensor
To disassemble the air temperature pressure sensor (1).
Operations Section reference
Remove the seat 5 - 3, Removal of the seat
Remove the tank covers 5 - 2,
Removal of the fuel tank
fairings
Remove the fuel tank 8 - 2,
Removal of the fuel tank
Remove the ABS control unit 7 - 6,
Removing of the ABS control
unit
Remove the battery 6 - 2,
Battery support
Remove the ECU connector 6 - 12,
Removal of the electronic
control unit
Connect the starter motor/solenoid
cable
6 - 3,
Removal of the starter motor
Remove the airbox 8 - 7,
Removal of the airbox

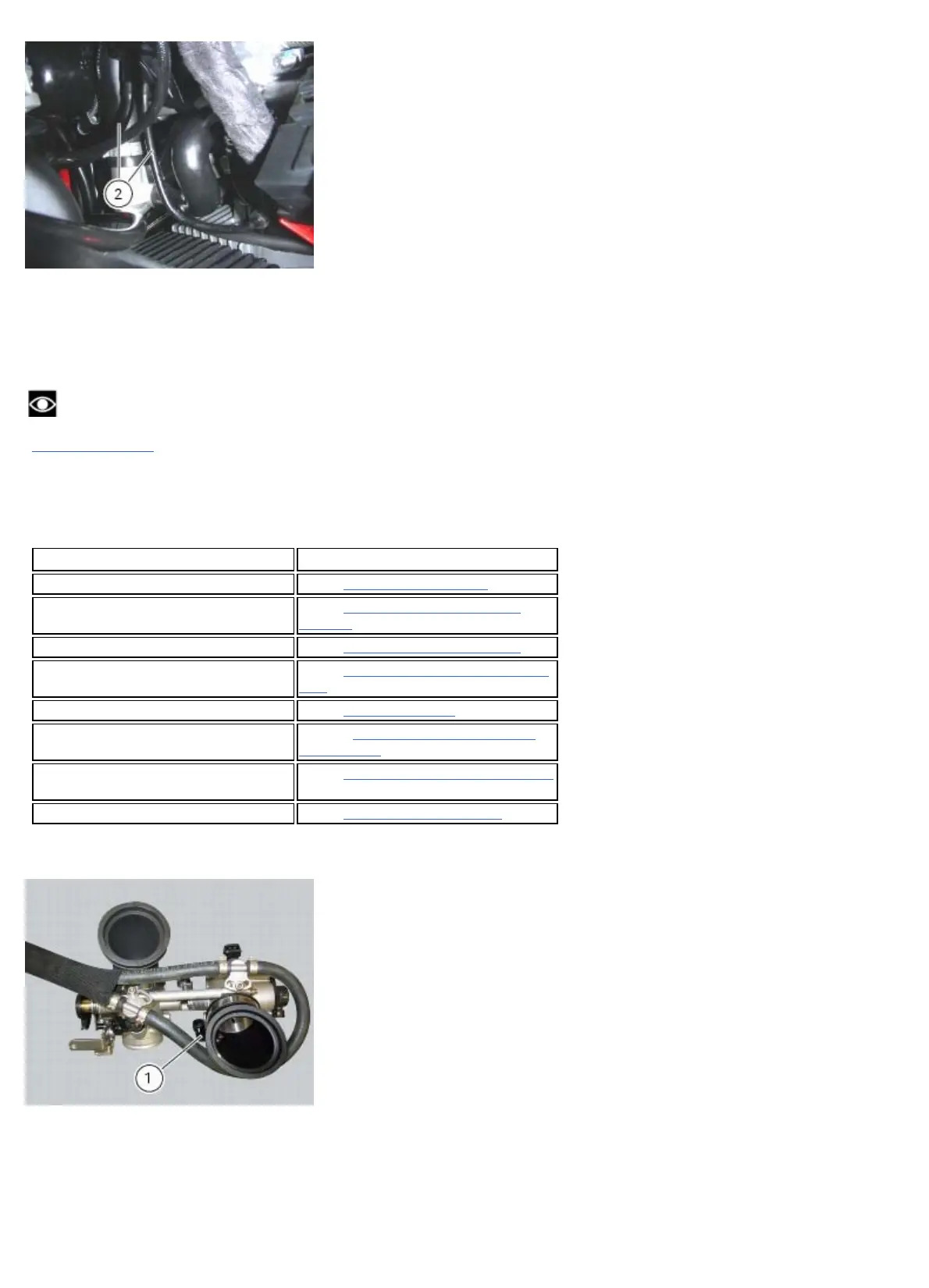

Disconnect the main wiring connector (1) from the sensor, unscrew and remove the two sensor retaining screws (2) and
remove the sensor from the vertical cylinder intake manifold (3).
