z DUPRINTER Installation Instructions
chap.5
258

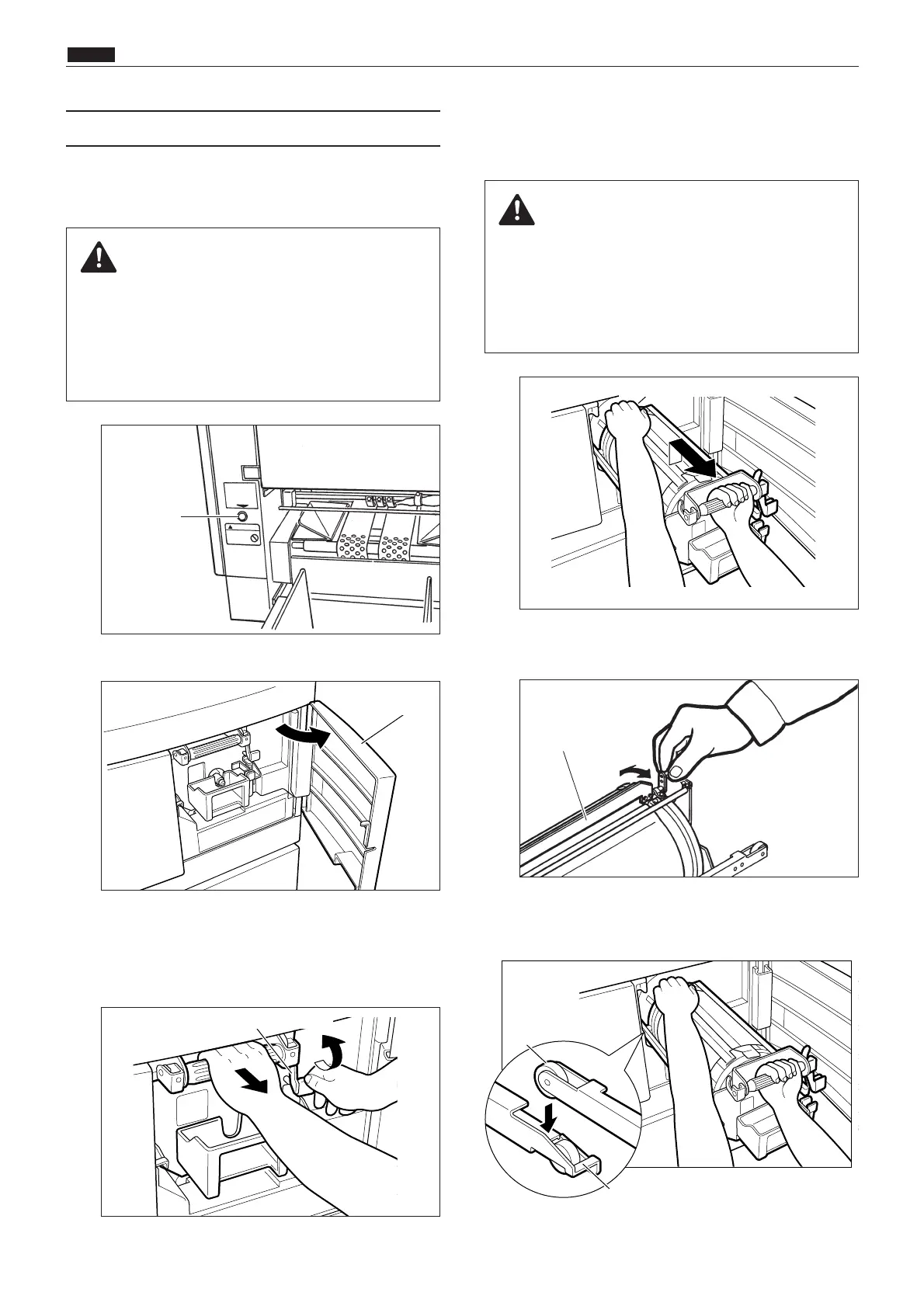

(6) Preparation of drum
WARNING
¡Do not touch the drum or rollers when you operate
the jog switch.
¡ Do not put hands inside machine while it is
operating.
Hands could get caught up or crushed.
q Press the jog switch (drum rotator switch).
Hold down until the drum stops with a beep.
w Open the front cover toward you.
e Lift up the drum securing lever.
While lifting the lever up, pull out the drum
handle toward you, pulling it straight out until
it stops.
Drum securing lever
Front cover
CAUTION
¡Hold the drum level and place it on a flat, solid
surface.
¡The stainless screen does not return to the original
state once it is folderd. Be careful to handle the
screen.
r Grip the handle far end of drum, and pull the
drum out toward you while slightly lifting the
near end of the drum.
Handle far end of drum
t Move the lever with a hand to open and close the
master clump once or twice.
y Hold the drum level and place the drum guide
roller onto the rail in the machine.
Rail
Master clump
Roller
Jog switch
63S051463S0514
To Next Page
