z DUPRINTER Installation Instructions
chap.5
260

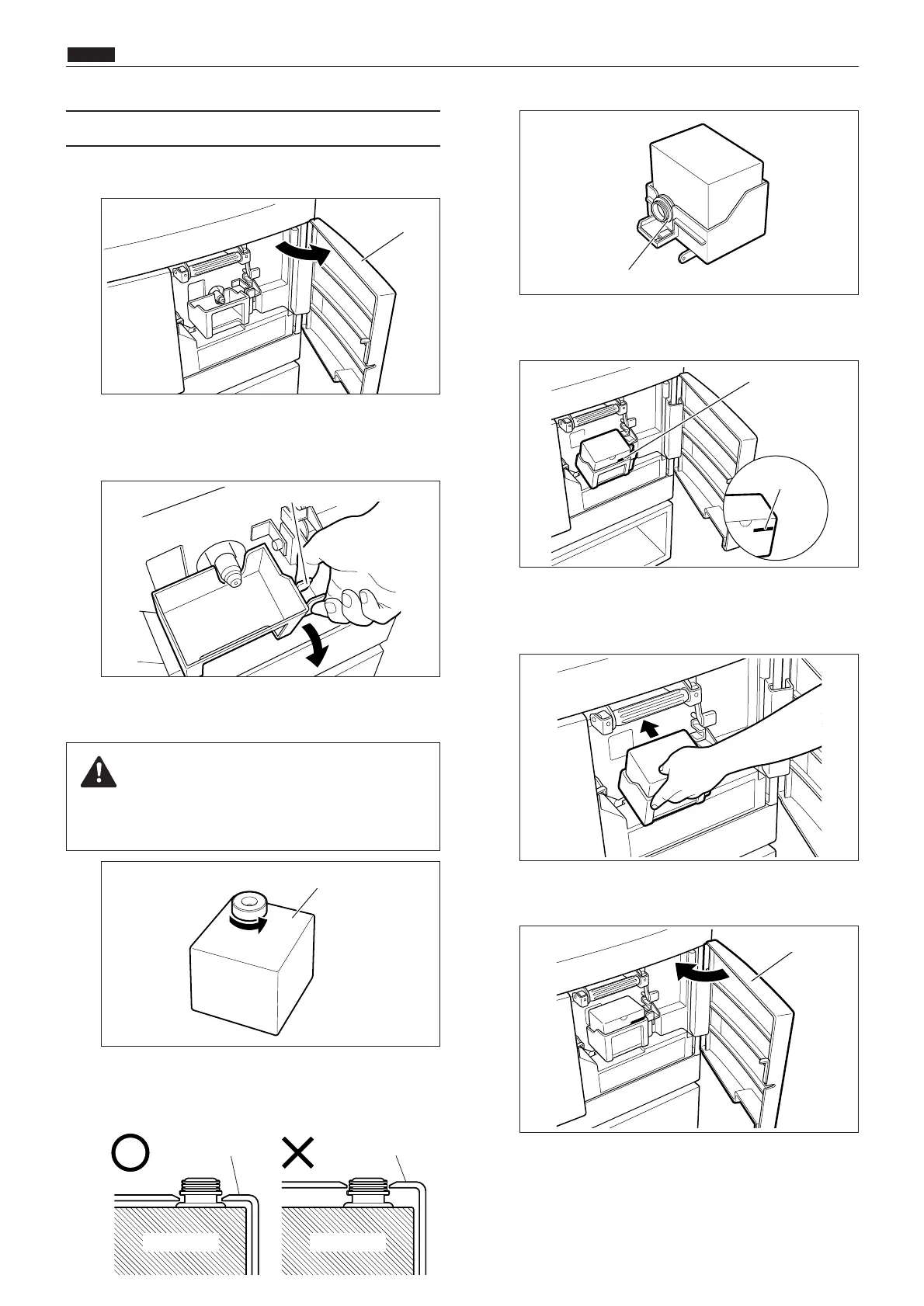

(7) Setting the ink pack
q Open the front cover.
w Hold the ink pack holder release lever and pull
it toward you.
e Twist open the cap of the new ink pack.
CAUTION
¡Do not leave an uncapped INK PACK for a
period longer than necessary.
r Insert the ink pack so that the groove on the LIP
fits into the "U" groove of the holder.
Ink pack
Holder Holder
Ink pack
Front cover
Holder release lever
Ink pack
t Push the ink pack to the set line on the ink pack.
y Push the side of the holder in with the palm of
your hand.
u Close the front cover.
"U" groove of holder
Set line
Set line
Front cover
To Next Page
