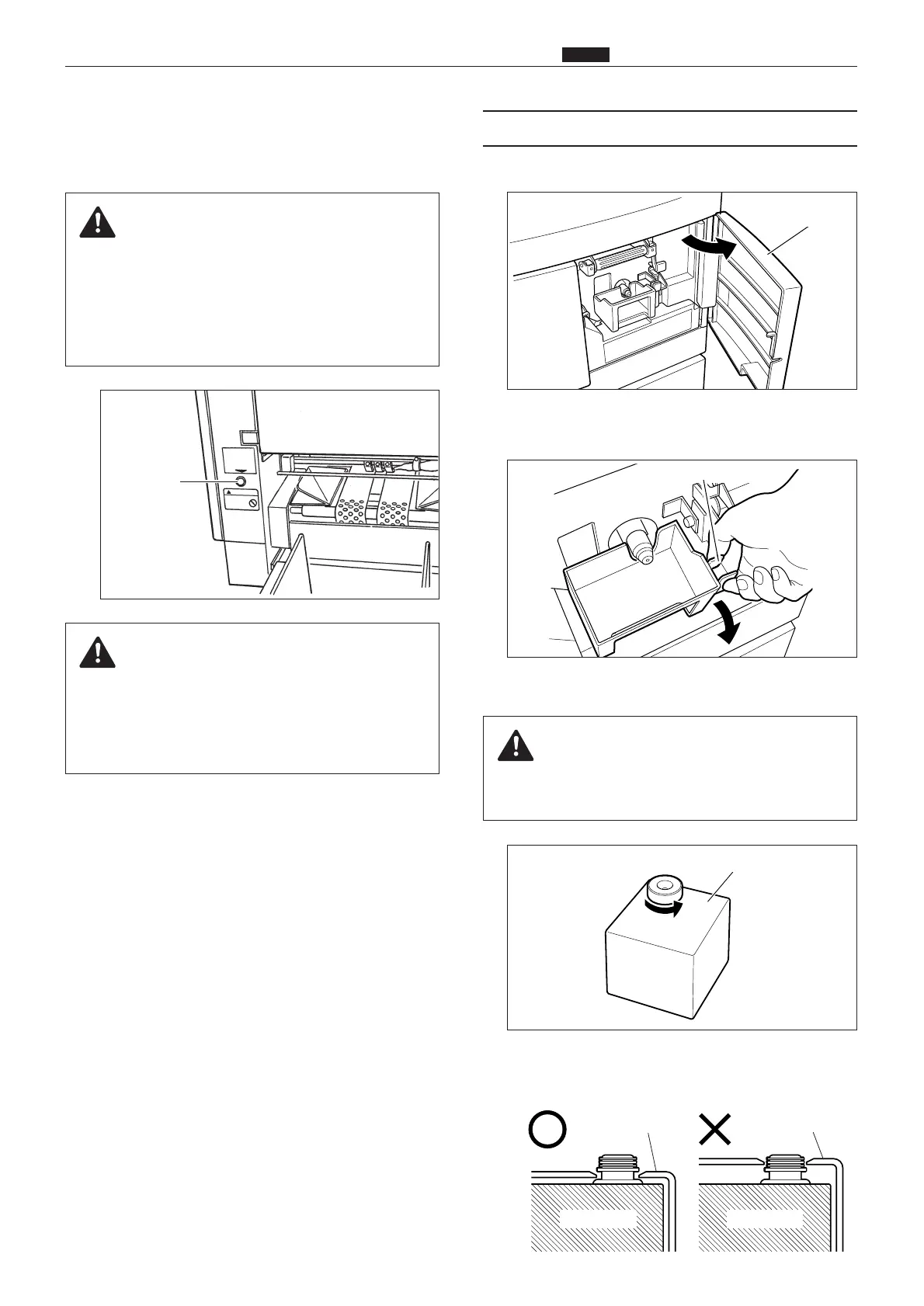

x DRUM Unit Installation Instructions
chap.5
263
q Open the front cover.
w Hold the ink pack holder release lever and pull
it toward you.
e Twist open the cap of the new ink pack.
CAUTION
¡Do not leave an uncapped INK PACK for a period
longer than necessary.
r Insert the ink pack so that the groove on the LIP
fits into the "U" groove of the holder.
Ink pack
Holder Holder
Ink pack
Front cover
Holder release lever
Ink pack
CAUTION
¡Be sure to handle the DUPRINTER with both hands
and keep it level.
¡The DUPRINTER is a complex piece of machinery
; handle it gently.
(2) Setting the Ink Pack
i Press the jog switch (drum rotator switch).
Continue pushing until the drum stops with a
beep.
WARNING
¡Do NOT touch the drum or rollers when you
operate the jog switch.
¡ Do NOT put hands inside machine while it is
operating.
Hands could get caught up or crushed.
Jog switch
63S051463S0514
To Next Page
